Mini High NLOS Ability Video Data Transmitter Covert Surveillance

Basic Information
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST5200W1
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Detail Information
Modulation: TDD-COFDM Frequency: 300-800MHz
NLOS: 200-500meters Latency: 30-60ms
Data: RS232/485 Video Input/Output: High Definition Multimedia Interface/CVBS
High Light:

micro fpv quadcopter


micro video transmitter

Product Description

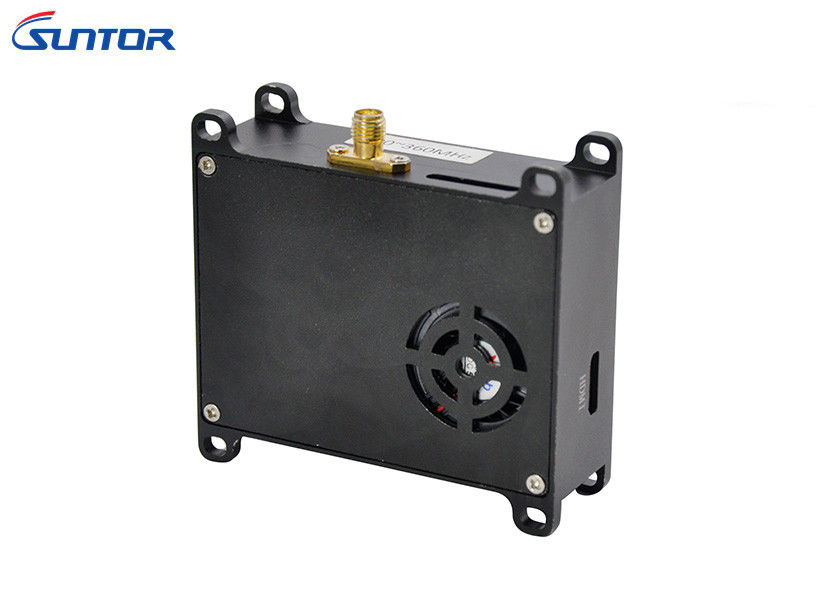

Mini High NLOS Ability Video Data Transmitter Covert Surveillance


ST5200W1 Specs Sheet.pdf


Product Function
ST5200W1 is special designed for high speed data transmission in movement. The transmit rate up to 2~8Mbps, which can meet high quality video, audio and data transmission. It includes text files, office documents, audio and video files, share files, access to the Internet, access the Intranet, access and download the database, dial telephone exchange, remote maintenance and other function on virtual network.


Application Mode:
With the feature of small size, light weight(136g) and easy for secret portable, this “Spy”type wireless video transmitter can be hung on the waist,put in brief case. It is always applied in criminal investigation,UAV etc.

Device Advantage:

  • 1.Low delay time is 40ms.
  • 2.High definite resolution: 1080I(1920*1080)compatible with 720*576.
  • 3.High quality digital video processing&video encoding and decoding&DVD picture.
  • 4.Excellent anti-interference performance under complex electromagnetic condition.
  • 5.One-way picture,one/two way voice,reverse control cloud deck function are available.
  • 6.Transmit distance up to 500m NLOS and more than 10km LOS.
  • 7.Space diversity reception capability.
  • 8.Small size and light weight easy for carry.
  • 9.Can stably transmitter video&audio signal under the condition of high-speed mobile and multipath interference.


Tx Parameters


Working Voltage DC12V
Working Current 2A
Working Frequency 160MHz~860MHz
Output Power 30dBm
RF Bandwidth 2/4/6/8 MHz
Modulation COFDM
Serial Port
Data Half-duplex transparent data transmission(OSD UART)
Serial Port Config UART
Convolutional Encode ratio 1/2, 2/3, 3/4, 5/6, 7/8
Modulation QPSK/QAM16/QAM64
Guard Interval 1/4, 1/8, 1/16, 1/32
High Definition Multimedia Interface
Version High Definition Multimedia Interface mini
Resolution Ratio Max 1080*1920/60P
Video Encoding H.264
Video Encoding H.264
Video Input Format PAL/NTSC
Encryption AES 256
Omni Antenna SMA
Weight & Dimension
Weight 136g
Dimension 75*65*28mm
