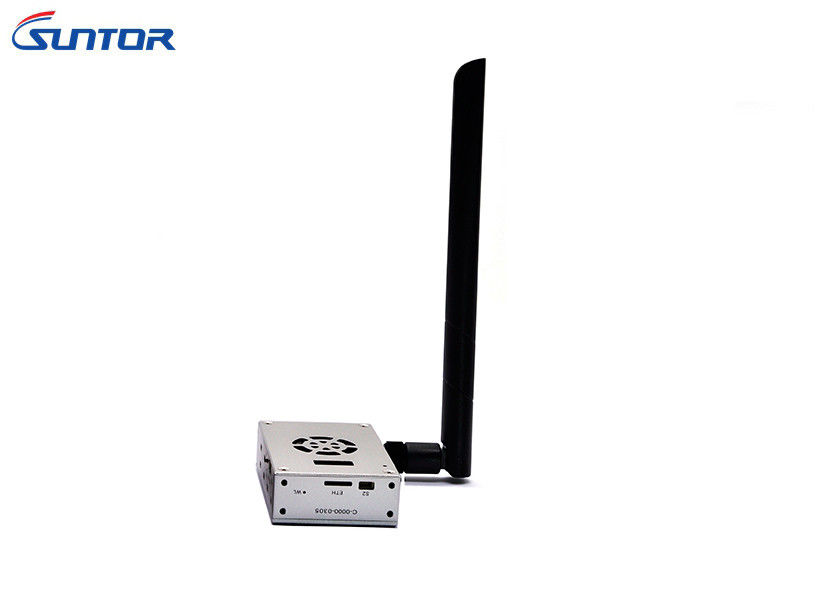

Long Range TDD - Cofdm Video Transmitter Wireless H.264 + H.265 Air To Ground 8-10km Data Links

  • Long Range TDD - Cofdm Video Transmitter Wireless H.264 + H.265 Air To Ground 8-10km Data Links
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST11HPT
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation TDD-COFDM Frequency 2.402-2.478GHz
Latency ≤12-25ms Receive Sensitivity -100dbm ~ -90dbm
RF Transmitted Power 1W Transmission Distance Air To Ground 8-10km
Working Temperature -40℃—+85℃ Power Supply DC 7- 18V
High Light

wireless video transmitter and receiver

,

audio video transmitter
Leave a Message
Product Description



Long Range TDD - Cofdm Video Transmitter Wireless H.264 + H.265 Air To Ground 8-10km Data Links



ST11HPT Specs.pdf



TDD-COFDM wireless video data links advantages:

  • 1. Long range transmission distance 8-12km;
  • 2. Delay time very short less than 25ms;
  • 3. Perfect image quality, brighter colors and image smoothness.
  • 4. Micro and lightweight less than 100g



Features

  • Video Input: High Definition Multimedia Interface
  • Resolution: Full HD 1080P
  • Distance: Air to ground 8-12km
  • Latency: ≤12-25ms
  • Duplex Data Transmission: SBUS/PPM/TTL
  • Dimension: 73*48*14mm
  • Weight: TX 94g/ RX 94g



Application:
The ST11HPT wireless video sender is a mini COFDM video transmitter from Suntor, designed specifically for UAV/ Drones video transmission applications.



Parameters

Frequency 2.4GHZ(2.402-2.478GHz)
Wireless Fault-tolerant LDPC FEC
RF Transmitted Power 1Watt (Air to ground 8-10km)
Power Consumption TX: 7Watts
RX: 5Watts
Frequency Bandwidth 2/4/6/8MHz
Latency ≤12-25ms
Receive Sensitivity -100dbm ~ -90dbm
Video Color Space Default 4:2:0 optional: 4:2:2/4:4:4
Antenna 1T1R
Video Input/output Interface High Definition Multimedia Interface mini TX/RX, or transform FFC to High Definition Multimedia Interface-A RX/TX
Video Compressed Format H.264+H.265
Bitrate Software adjustment
Encryption WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256
Transmission Distance Air to ground 8-10km
Start-up time < 30s
Two-way function Support video and duplex data simultaneously
Data Support SBUS/PPM/TTL
Power supply DC 7- 18V
Interface 1080P/60 High Definition Multimedia Interface Mini RX x1
100Mbps Ethernet to USB / RJ45 on Windows × 1
S1 TTL bidirectional serial port x1
Power Input x1
Indicator Light High Definition Multimedia Interface input/output Status
Transmitting and receiving
Video board working Status
Power
High Definition Multimedia Interface High Definition Multimedia Interface mini/Flexible Flat Cable(FFC)
Temperature Range Operating temperature: -40°C ~+ 85°C
Storage temperature: -55°C ~+ 100°C
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Dimension 72×47×19mm
Weight Tx: 94g/Rx: 94g
