UAV / Autopilot Drone Video Transmitter Wireless 2.4G Long Distance lightweight

Product Details

Place of Origin: Shenzhen, China

Brand Name: SUNTOR

Certification: FCC, CE, RoHS

Model Number: ST100HPT

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Plastic Box

Delivery Time: 7-15 days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000 set/ month

Get Best Price
Contact Now
Specifications
Highlight:

drone transmitter and receiver

,

drone wireless video transmitter

Latency:
≤15-30ms
Antenna:
2T2R
Bandwidth:
2/4/6/8MHz
Power Consumption:
TX: 15Watts/RX: 8Watts
Distance:
100-120km
Transmission Mode:
Point To Point
Start-up Time:
25s
Power:
DC 7- 18V
Latency:
≤15-30ms
Antenna:
2T2R
Bandwidth:
2/4/6/8MHz
Power Consumption:
TX: 15Watts/RX: 8Watts
Distance:
100-120km
Transmission Mode:
Point To Point
Start-up Time:
25s
Power:
DC 7- 18V
Description

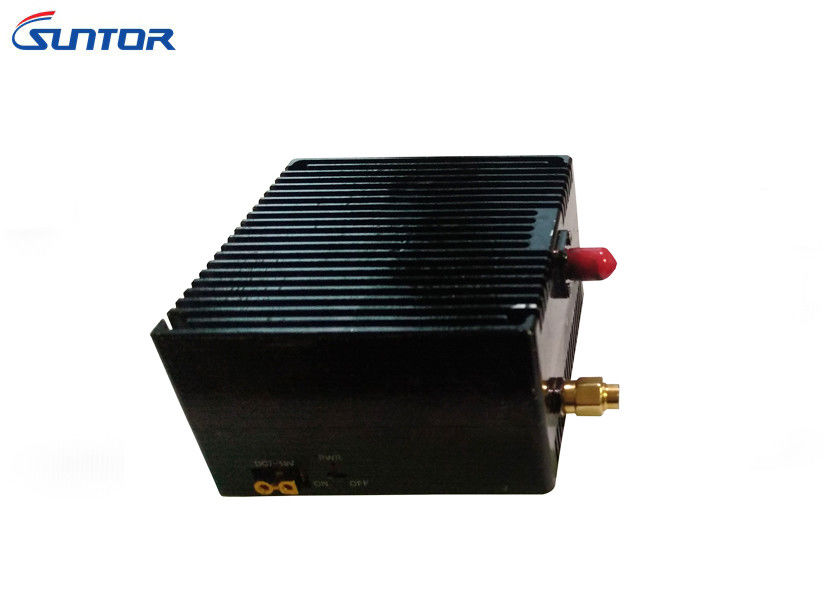

UAV / Autopilot Drone Video Transmitter Wireless 2.4G Long Distance lightweight



UAV / Autopilot Drone Video Transmitter Wireless 2.4G Long Distance lightweight





Data Sheet





Introduction



The ST100HPT is an integrated ground station for Unmanned vehicles. It has two high gain omni antenna, a true diversity wireless video receiver and a full duplex data channel built into the unit. The user is free from the botheration of making any connections. The external I/O interface has all the connections for data, video, power and monitoring brought out to standard off-the-shelf connectors.





Features



  • Working Temperature: -40℃~+85℃
  • Latency: 15-30ms
  • Support Duplex data transmitting SBUS/PPM/TTL/232/485
  • Video: Video sources self-adaptive(Max 1080P/60)
  • Support High Definition Multimedia Interface Input, High Definition Multimedia Interface and Ethernet output
  • Compatible with different brand flight control system and RC
  • 100Mbps Ethernet interface on TX and RX for option
  • Matching with our TPlayer software (low latency software decoder) to display video on PC.

Parameters



Power
Working Voltage Power Input XT30 (DC7-18V)
Working Current ≤1A@12V
RF
Working Frequency 2.4Ghz(2.400-2.482GHz)
RF Bandwidth 2/4/6/8Mhz
Output Power 3watts
Modulation TDD-COFDM
Video
Video Encoding H.264+H.265+TS Stream
Video Input High Definition Multimedia Interface/SDI
High Definition Multimedia Interface
Version 1080P/60 High Definition Multimedia Interface Mini RX
Resolution Ratio Max 1920*1080 60P
