Product Details
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST5XHPT
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Modulation: |
TDD-COFDM |
Frequency: |
2.4GHz(2.402 - 2.478 GHz) |
Distance: |
Air To Ground 5km |
Latency: |
≤12-25ms |
Video Input/Output: |
High Definition Multimedia Interface |
Resolution: |
720P |
Dimension: |
73*48*14mm |
Weight: |
TX 58g / RX 58g |
Modulation: |
TDD-COFDM |
Frequency: |
2.4GHz(2.402 - 2.478 GHz) |
Distance: |
Air To Ground 5km |
Latency: |
≤12-25ms |
Video Input/Output: |
High Definition Multimedia Interface |
Resolution: |
720P |
Dimension: |
73*48*14mm |
Weight: |
TX 58g / RX 58g |

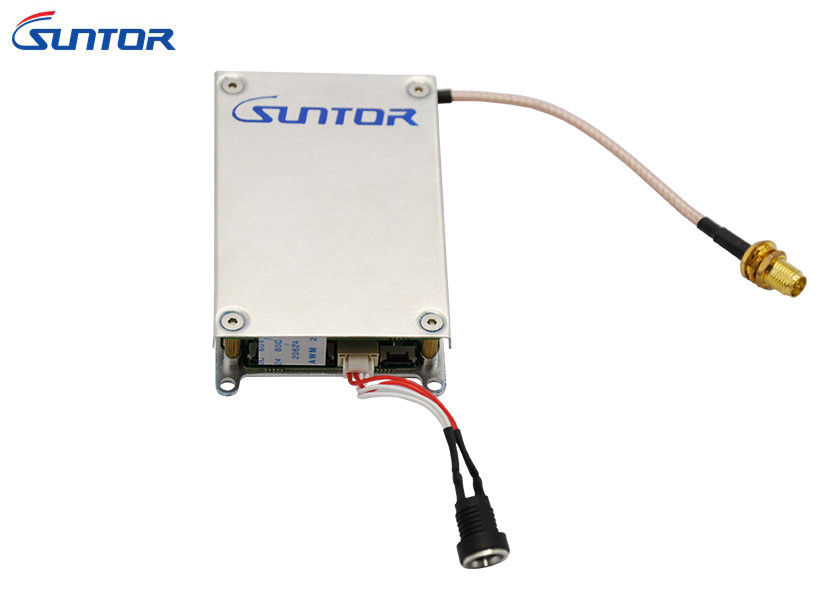

Economic micro COFDM wireless video transmitter module High Definition Multimedia Interface receiver
Description
ST5XHPT is a Economy mini High Definition Multimedia Interface Video and Data transmission COFDM system for UAV. It support HD720P video. It develops CABAC (H.265+TS) coding&decoding technology to achieve Utra-high resolution(720P), long distance(air to ground 5km) and low delay(12-25ms) transmission. The system supports (data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.
Product Features:
The small size and ultra-low power consumption make the ST5XHPT transmitter ideal for UAV installations, enabling true long range HD quality transmission from these increasingly popular devices for the first time. Optional lightweight, low power consumption amplifiers are also available for even greater range capability.
Parameter
| Frequency | 2.4GHZ(2.402-2.478GHz) |
| Wireless Fault-tolerant | LDPC FEC |
| RF Transmitted Power | 27dbm (Air to ground 5km) |
| Power Consumption | TX: 7Watts |
| RX: 5Watts | |
| Frequency Bandwidth | 2/4/6/8MHz |
| Latency | ≤12-30ms |
| Video Color Space | Default 4:2:0 optional: 4:2:2/4:4:4 |
| Antenna | 1T1R |
| Video Input/output Interface | High Definition Multimedia Interface mini TX/RX, or transform FFC to High Definition Multimedia Interface-A RX/TX |
| Video Compressed Format | H.265 +TS |
| Bit rate Adjustment | DIP or SPI2MCU |
| Encryption | WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK) |
| Transmission Distance | Air to ground 5km |
| Start-up time | < 25s |
| Two-way function | Support video and duplex data simultaneously |
| Data | Support Duplex TTL RS232/485 Data Transmitting |
| Power supply | DC 7- 18V |
| Interface | 720P High Definition Multimedia Interface Mini RX x1 |
| S1 TTL bidirectional serial port x1 | |
| RF SMA | |
| Power Input x1 | |
| Indicator Light | High Definition Multimedia Interface input/output Status |
| Transmitting and receiving | |
| Video board working Status | |
| Power | |
| Temperature Range | Operating temperature:0°C ~+ 85°C |
| Storage temperature:-10°C ~+ 90°C | |
| Appearance Design | CNC technology/ double aluminum alloy shell with waterproof design |
| Dimension | 73×48×14mm |
| Weight | Tx: 58g/Rx: 58g |
