Product Details
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: CD30HPT
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Modulation: |
COFDM |
Security: |
AES128 Encryption |
Bandwidth: |
4MHz/8Mhz |
Data Rate: |
3 ~ 5Mbps |
Latency: |
15 ~ 30ms |
Weight: |
146g |
Size: |
76*73*23mm |
Modulation: |
COFDM |
Security: |
AES128 Encryption |
Bandwidth: |
4MHz/8Mhz |
Data Rate: |
3 ~ 5Mbps |
Latency: |
15 ~ 30ms |
Weight: |
146g |
Size: |
76*73*23mm |

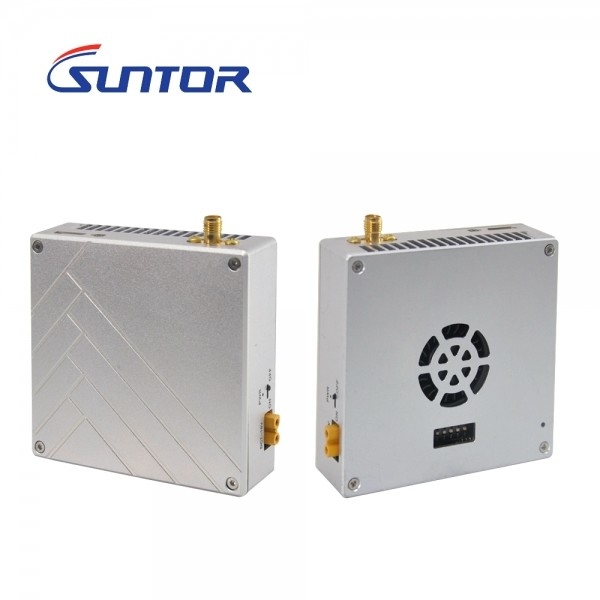

COFDM Transmitter for UAV with High Sensitivity and Compatibility for Controllers
CD30HPT Drone Video Transmitter & Receiver Specifi...
Introduction
CD30HPT is a mini HD Video and Duplex data transmission COFDM system for UAV. It develops CABAC (H.264+H.265) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground 30km) with double tx and rx antennas design and low delay(15-30ms) transmission. The system supports two-way(data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.
Features
Working Temperature: -40℃~+85℃
Support TTL/232/MAVLINK TELEMETRY
Double Serial Ports for bi-directional Data
Offering control, telemetry & payload in, Video Transmission in 1 RF channel
Video: Video sources self-adaptive(Max 1080P/60), Support HDMI Input/output
Support Video and Duplex Data
Compatible with different brand flight controller and remote controller
100Mbps Ethernet for option
Matching with our TPlayer software (low latency software decoder) to display video on PC.
Omni Antenna for Tx and Rx
Application
Accessories
| System parameter | |
| Frequency | 2.4GHz(2.402-2.482GHz) |
| Error Detection | LDPC FEC/Video H.264/265 Super Error Correction |
| RF Transmitted Power | 2Watts |
| Power Consumption | TX: 19Watts/RX: 6Watts |
| (air to ground) | 30km |
| Bandwidth | 4/8MHz |
| Video Input/output Interface | On board HDMI mini TX/RX or FFC convert to HDMI-A TX/RX |
| Bitrate and channel adjustment mode | DIP or SPI2MCU |
| Antenna | 1T1R/ Tx: 4db(Omni Antenna) Rx: 8db(Omni Antenna)/14dbi Directional Antenna |
| Video Color Space | Default 4:2:0 optional: 4:2:2/4:4:4 |
| Video Compressed Format | AVC adds H.265 feature TS stream |
| Adjustment mode of bitrate | Software adjustment |
| Communication Channel Encryption | AES 128 |
| Ethernet Protocol | TCP/UDP |
| Video Record | By software |
| Transmission Mode | point to point |
| Start-up time | 25s |
| Latency | 15-30ms |
| Receive Sensitivity | -100dbm@4Mhz-95dbm@8Mhz |
| Two-way function | Support video and duplex data simultaneously |
| Data | Support TTL/MAVLINK |
|
Interface(same interface on TX & RX)
|
1. 1080P 60 HDMI Mini RX x1 |
| 2. 100Mbps Ethernet to USB / RJ45 on Windows x1 | |
| 3. S1/ S2 TTL bidirectional serial port for data/control/playload/MAVLINK/TELEMETRY | |
| 4. Power Input (DC7-18V) x1 | |
|
Indicator Light
|
HDMI input/output indicator light |
| Transmitting and receiving indicator light | |
| Video board indicator light | |
| Power light | |
| HDMI | HDMI mini/Flexible Flat Cable(FFC) |
| Appearance Design | CNC technology/double aluminum alloy shell with waterproof design |
| Power supply | DC 7- 18V (DC 12V advised) |
| Temperature Range | Operating temperature:-40°C ~+85°CStorage temperature:-55°C ~ +100°C |
| Dimension | Tx/ Rx: 76×73×23mm |
| Weight | Tx/ Rx: 146g |
