EOD Robot Video Transmitter For Firefighting Robot And Government

Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST5200W1
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Technology COFDM Frequency Range 300-900Mhz
Video Interface High Definition Multimedia Interface / AV Transmission Range 300-800 Meters
Video Compression H.264 Working Voltage DC 12V
Current 1.2A Weight 136g
High Light

wireless video transmitter and receiver

,

audio video transmitter

,

Robot COFDM Video Transmitter

Leave a Message
Product Description



Unmanned Vehicle EOD Robot Long Range Video Transmitter For And Government



Data Sheet





Introduction



The ST5200W1 wireless transmitter is a mini COFDM video transmitter from SUNTOR. It is designed specifically for EOD UGVS/USV/UAV/ Drones video transmission applications.

With proven SUNTOR COFDM technology and H.264 encoder technology at its core, the ST5200W1 transmitter enables viewers high definition images ideal for establishing rugged wireless video links in all environments including mobile and urban environments.

The small size and ultra-low power consumption make the ST5200W1 transmitter ideal for UAV and EOD UGVS installations, enabling true long range HD quality transmission from these increasingly popular devices for the first time. Optional lightweight, low power consumption amplifiers are also available for even greater range capability.



Features



  • SD &HD compatible
  • 40ms latency
  • Designed for UAV & EOD UGV
  • Long range distance air to ground up to 15km
  • Great action ability, can transmit video and audio stably in the condition of high speed movement and multi-path interference.
  • Strong NLOS (non-line of sight) transmission capacity;
  • COFDM digital modulation types;
  • Real-time transmission system, delay time for end-to-end is less than 40ms;
  • Long distance transmission;
  • Stable signals, image clear and stable, has no mosaic or drag phenomenon.
  • Suitable for the complex environment;
  • Working frequency can be adjustable between 300MHz and 2.7GHz;
  • High quality digital video processing and H.264/MPEG-2 coding and encoding

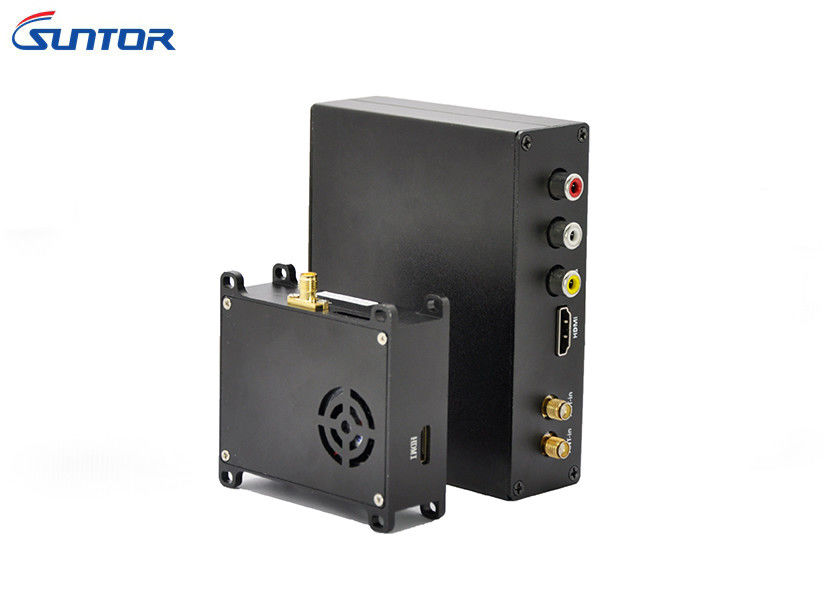

EOD Robot Video Transmitter For Firefighting Robot  And Government 0

TX Specifications



Version High definition version
Transmission Characteristics
Modulation QPSK(4QAM),16QAM,64QAM
Frequency 300MHz -900MHz(adjustable 0.5M per step)
Transmit power 30dBm
RF bandwidth 2/4/6/8MHz(optional)
FEC(forward error correction) 1/2,2/3,3/4,7/8
Guard Interval 1/4,1/8,1/16,1/32
Transmission range air to ground up to 15km
Data Characteristics
Video Input

High Definition Multimedia Interface: 1080 60P,1080 50P,1080 30P,1080 25P,1080 24P 1080 60I,1080 50I,

1080 30I,720 60P,720 50P,720 30P,……, AV:720x480 60I(NTSC),720x576 50I(PAL)

Video Compression H.264
RF Interface SMA F head
Parameter Control Method Using digital LED control panel
Encryption 256 - bit AES (can set user’s password)
Electrical Characteristics
Working Voltage DC12V
Working Current ≤1.2A(@12V)
power consumption ≤14.5W
Physical Characteristics
Weight 136g
Dimensions 75*65*28mm
Working Environment -20℃~+70℃



EOD Robot Video Transmitter For Firefighting Robot  And Government 1



RX Specification:

Version High definition version
Transmission Characteristics
Modulation QPSK(4QAM),16QAM,64QAM
Frequency 200-860MHz optional
RF bandwidth 2/4/6/8MHz optional
Data Characteristics
Video Output

High Definition Multimedia Interface:1920x1080 p60

AV:720x480 60I(NTSC)

Video Compression H.264
RF Interface SMA F head
Parameter Control Method Using digital LED control panel
Encryption 256 - bit AES (can set user’s password)
Electrical Characteristics
Working Voltage DC12V
Working Current ≤0.2A(@12V)
power consumption ≤2.5W
Physical Characteristics
Weight 248g
Dimensions 109*86*40mm
Working Environment -20℃~+70℃
