Product Details
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Model Number: CD30
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: carton box
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Technology: |
TDD-OFDM / MIMO |
Frequency Options: |
1.4GHz / 2.4GHz / 800MHz (Optional) |
Max Transmission Distance: |
50KM |
Data Rate: |
24Mbps @ 10MHz |
Bandwidth Options: |
5 / 10 / 20 MHz |
Encryption: |
AES128 Security |
Weight (Air Unit): |
180g |
Antenna Type: |
Dual Antenna MIMO |
Power Supply: |
DC12V–24V |
Power Consumption: |
≤ 12W @ DC12V |
Interfaces: |
1 × ETH, 1 × TTL Serial |
Operating Mode: |
Point-to-Multi-Point |
Technology: |
TDD-OFDM / MIMO |
Frequency Options: |
1.4GHz / 2.4GHz / 800MHz (Optional) |
Max Transmission Distance: |
50KM |
Data Rate: |
24Mbps @ 10MHz |
Bandwidth Options: |
5 / 10 / 20 MHz |
Encryption: |
AES128 Security |
Weight (Air Unit): |
180g |
Antenna Type: |
Dual Antenna MIMO |
Power Supply: |
DC12V–24V |
Power Consumption: |
≤ 12W @ DC12V |
Interfaces: |
1 × ETH, 1 × TTL Serial |
Operating Mode: |
Point-to-Multi-Point |

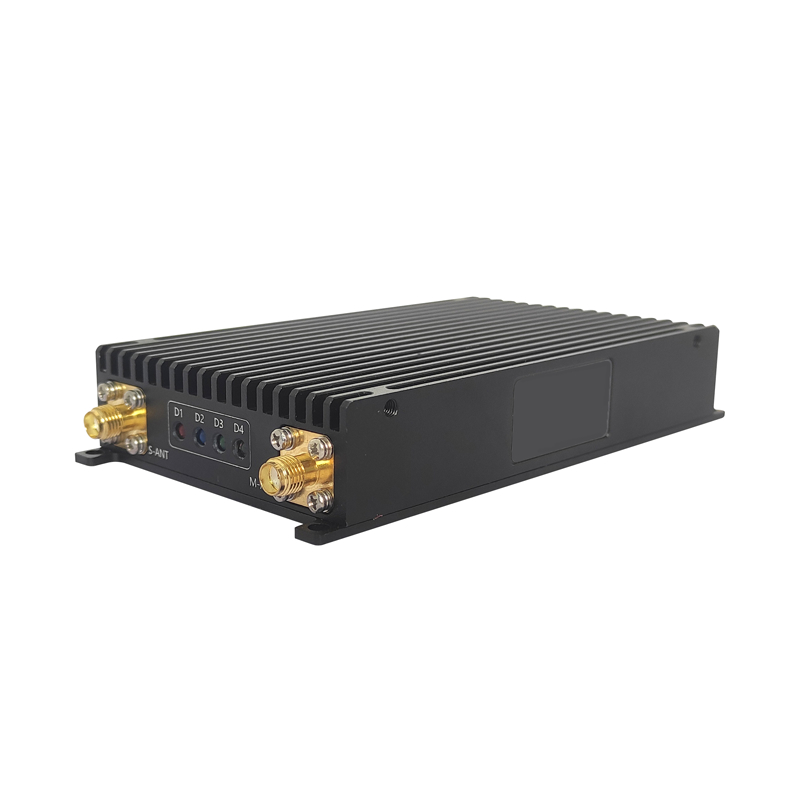

2.4GHz Portable 2000mW 1000-1500m Analog Wireless Elevator CCTV Systems
Parameters
| Model | TY-2420mw |
| Voltage | DC 12V |
| Current | 600mA |
| Frequency | 2370-2510MHz |
| Number of channels | 8CH |
| Transmit Power | 2000mW |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Distance (Open environment) | 1000-1500m |
| Overall Configuration | Transmitter, receiver, video cable, power supply, antenna |
| Temperature | -20°C~+50°C |
| Transmitter Weight | 260g |
| Receiver Weight | 120g |
| Overall Weight | 1020g |
| Dimensions (L * W * H) | Transmitter:102*80*23.5mm Receiver: 102*80*23.5mm |
| Box size (L * W * H) | 203*154*74mm |
Features:
Wireless transmission: no need to set up communications cable
Image, audio sync, color black and white compatible
Responsive, timely, send and receive real-time transmission
Using analog FM mode, anti-interference ability, good image quality
Easy integration with existing surveillance systems for anytime/anywhere monitoring
Installs in a few hours, minimize elevator down time.
No Maintenance or Inspections Required
