Micro mini 0ms low latency ethernet video transceiver for UAV surveillance

  • Micro mini 0ms low latency ethernet video transceiver for UAV surveillance
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST20NPT
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Frequency 2.402-2.478GHz Adjustable
Transmission Power 2W (33dBm) Transmission Distance Air To Ground 20km
Transmitting Rate 70Mbps Video Input Double RJ45 Port
Net Weight Tx:58g Rx: 58g Dimensions 68×48x14mm
High Light

micro fpv camera and video transmitter

,

micro fpv quadcopter
Leave a Message
Product Description

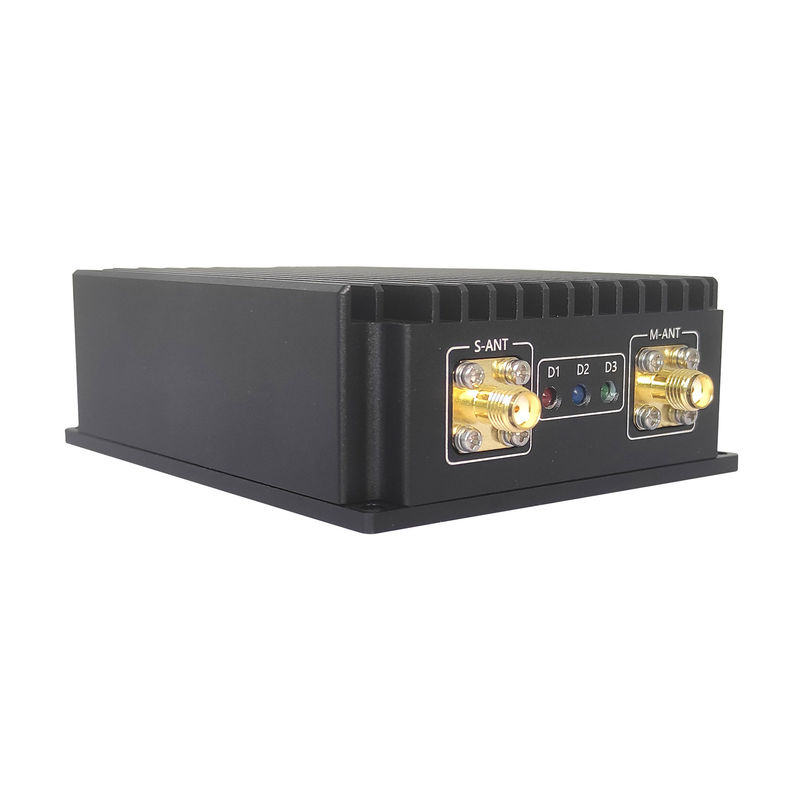

Micro mini 0ms low latency ethernet video transceiver for UAV surveillance



Product description:
The Wireless HD Video transmitter system ST20NPT is for professional application in wireless aerial transmission. The wireless video system that transmits HD video over the unlicensed 2.4GHz band.
It is featured with long range, ultra-low latency. The system can be powered by batteries.



Product Features:

  • Transmission power: 2W (33dBm)
  • Extreme lightweight and rugged housing
  • Vibration and shock resistant
  • Applied COFDM modulation with Lan and RS232 port
  • Ultra small dimensions and ultra light weight
  • Perfect for high altitude mobile applications
  • High quality of video transmission, no mosaic, no dragging phenomenon, stable power with adjustable dynamic power.



Advantages:
Light weight, mini size, low power consumption, high stability and receiving sensitivity. With RJ45 and TTL bidirectional serial port, this model can wireless transmit video and Ethernet Data.



Parameter

Dimensions 68×48x14mm (antenna not included)
Net Weight Tx:58g Rx: 58g (antenna not included)
Transmission Distance Air to ground 20km
Modulation COFDM
Working Frequency 2.402-2.478GHz adjustable
Transmission Power 2W (33dBm)
RF Bandwidth 2MHz / 20MHz Adjustable
Transmission Mode point to point / point to multipoint
Transmitting Rate 70Mbps
Video input Double RJ45 port
Interface

Power input interface × 1

Antenna interface × 1

RS232 Bidirectional Port × 1

Ethernet to USB / RJ45 on Windows × 1
Two-way function

Integrate multiple radio links into one to transmit and receive.

Support SBUS/PPM/TTLS 1 pro communication module
Adjustment mode of bit rate Software adjustment
Encryption AES
Working Temperature -40 - 85°C
Working Voltage DC7~18V Optional
Power Consumption

TX: 6Watts

RX: 6Watts
Start-up time < 30s
System Latency 12-25ms
