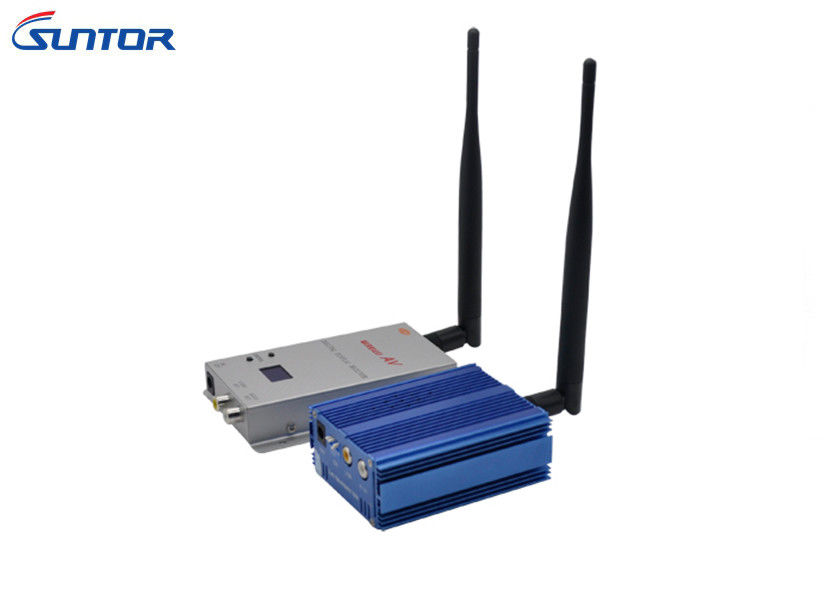

2.4GHz Portable 2000mW 1000-1500m Analog Wireless Elevator CCTV Systems

Basic Information
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: TY-2420mW
Minimum Order Quantity: 1 set
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Detail Information
Modulation: FM Frequency Range: 2370-2510MHz
Number Of Channels: 8CH RF Power: 2000mW
Transmitter Weight: 260g Receiver Weight: 120g
High Light:

audio video wireless transmitter


video signal transmitter

Product Description

2.4GHz Portable 2000mW 1000-1500m Analog Wireless Elevator CCTV Systems


Model TY-2420mw
Voltage DC 12V
Current 600mA
Frequency 2370-2510MHz
Number of channels 8CH
Transmit Power 2000mW
Video Output 1 Vp-p(FM)
Audio Output 1 Vp-p(FM)
Audio Carrier Ware 5.5M 6.0M
Distance (Open environment) 1000-1500m
Overall Configuration Transmitter, receiver, video cable, power supply, antenna
Temperature -20°C~+50°C
Transmitter Weight 260g
Receiver Weight 120g
Overall Weight 1020g
Dimensions (L * W * H) Transmitter:102*80*23.5mm Receiver: 102*80*23.5mm
Box size (L * W * H) 203*154*74mm



  • Wireless transmission: no need to set up communications cable

  • Image, audio sync, color black and white compatible

  • Responsive, timely, send and receive real-time transmission

  • Using analog FM mode, anti-interference ability, good image quality

  • Easy integration with existing surveillance systems for anytime/anywhere monitoring

  • Installs in a few hours, minimize elevator down time.

  • No Maintenance or Inspections Required
