Two Way RS232 Drone Video Transmitter , Wireless Hd Transmitter 70Mbps Transmitting Rate

Product Details

Place of Origin: Shenzhen, China

Brand Name: SUNTOR

Certification: FCC, CE, RoHS

Model Number: ST5NPT

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Plastic Box

Delivery Time: 7-15 days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000 set/ month

Get Best Price
Contact Now
Specifications
Highlight:

uav video transmitter

,

drone wireless video transmitter

,

two way uav hd transmitter

Modulation:
COFDM
Frequency:
2.4GHz (2.402-2.478GHz)
Ransmitting Power:
23dBm
Transmitting Power:
Air To Ground 5km
Transmitting Rate:
70Mbps
Size:
68×48x14mm
Weight:
59g
Modulation:
COFDM
Frequency:
2.4GHz (2.402-2.478GHz)
Ransmitting Power:
23dBm
Transmitting Power:
Air To Ground 5km
Transmitting Rate:
70Mbps
Size:
68×48x14mm
Weight:
59g
Description

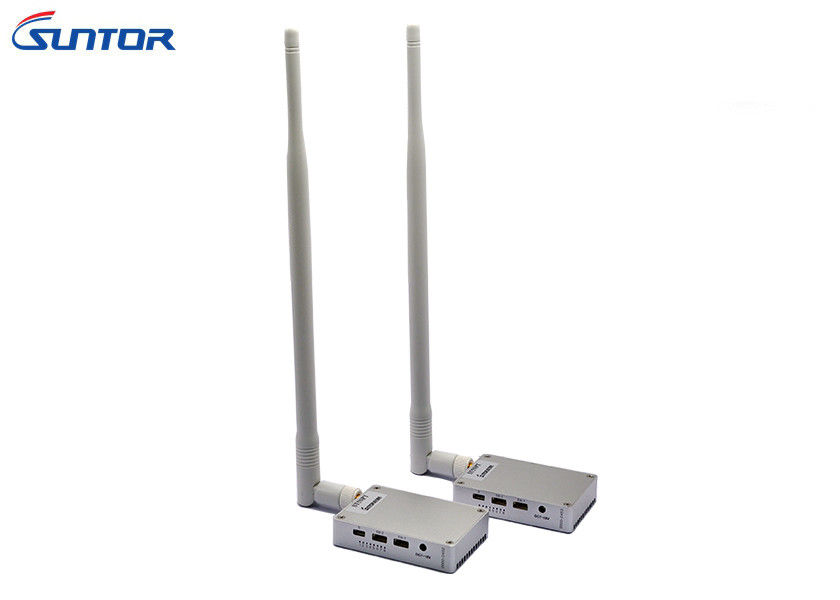

Two Way RS232 Drone Video Transmitter , Wireless Hd Transmitter 70Mbps Transmitting Rate

Two way RS232 data and HD video UAV transmitter and receiver system





Specification Sheet



User Manual





Introduction:
ST5NPT UAV HD transmitter is our own research and development of high-definition COFDM mobile video transmitter, the device uses orthogonal frequency division multiplexing technology, uses relatively narrow air bandwidth to transmit high-definition video images, data transmission bandwidth reaches up to 70Mbps. The device generally works in 2.4GHz frequency band, can make the data transmission stable in high altitude and high-speed movement process. Very suitable for the video transmission for air to ground and UAV HD image transmission.



Main Features:

  • Operates at 2.4GHz frequency, no license needed, and only suitable for LOS(Line-of-Sight) use
  • Transmission power 400mW
  • Long operating range over 5km
  • Air speed up to 10Mbps,down link up to 6Mbps, up link up to 800kbps
  • Link establishing/recover time less than 60ms
  • Compact size of 68×48x14mm
  • Light weight less than 59g
  • Point-to-Point and Point-to-Multipoint supported
  • Optimized transmission for 1080P high definition video
  • Support two remote controllers to control UAV and on board devices through the PPM port of Local Side Unit. And the On Board Unit outputs the control signals through one SBus port and two PPM ports synchronously
  • Two transparent serial data link, the end to end delay less than 10ms
  • Transparent TCP/IP transmission channel, provides most flexibility for IP based devices to apply on UAV platforms



This model has advantages of light weight, mini size, low power consumption, high stability and receiving sensitivity. With RJ45 and TTL bidirectional serial port, this model can wireless transmit video and Ethernet Data.



Parameter

Model: ST5NPT
Frequency 2.4GHz (2.402-2.478GHz) Adjustable
RF Transmitting Power

ST5NPT: 23dBm(air to ground 5km)

ST10NPT: 30Bbm(air to ground 10km)

ST20NPT: 33dBm(air to ground 20km)


Frequency Bandwidth 2MHz/20MHz Adjustable
Antenna 1T1R
Adjustment mode of bit rate Software adjustment
Communication Channel Encryption WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256
Transmission Mode point to point / point to multipoint
Start-up time < 30s
Transmission Distance

ST5NPT: Air to ground 5km

ST10NPT: Air to ground 10km

ST20NPT: Air to ground 20km


System Latency ≤60ms
Two-way function

Integrate multiple radio links into one to transmit and receive.

Support SBUS/PPM/TTLS 1 pro communication module

Optional
Transmitting Rate 70Mbps
Power DC 12V DC7~18V Optional
Power Consumption

ST5NPT

TX: 3Watts

RX: 3Watts

ST10NPT

TX: 4Watts

RX: 4Watts

ST20NPT

TX: 6Watts

RX: 6Watts

Maximum
Temperature

Operating temperature: -40 - 85°C

Storage temperature: -55 - 100°C


Interface

Power input interface × 1

Antenna interface × 1

RS232 Bidirectional Port × 1

Ethernet to USB / RJ45 on Windows × 1

Software adjustment
Indicator Light

RJ45 input/output indicator light

Transmitting and receiving indicator light

Transmitting and receiving indicator light

Power light


Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Size 68×48x14mm
Net Weight Tx:59g Rx: 59g
