Product Details
Place of Origin: Shenzhen, China
Brand Name: Suntor
Certification: FCC, CE, RoHS
Model Number: ST5200W2
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Modulation: |
COFDM |
Working Frequency: |
UHF 300MHz~860MHz |
Output Power: |
2W |
Encryption: |
AES 256 |
LOS Distance: |
15-30km |
Video Input/Output: |
High Definition Multimedia Interface/CVBS |
Data Port: |
Serial Port |
Net Weight: |
136g |
Modulation: |
COFDM |
Working Frequency: |
UHF 300MHz~860MHz |
Output Power: |
2W |
Encryption: |
AES 256 |
LOS Distance: |
15-30km |
Video Input/Output: |
High Definition Multimedia Interface/CVBS |
Data Port: |
Serial Port |
Net Weight: |
136g |

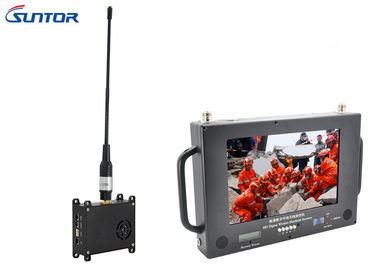

Compact 2 W UHF Drone Data Link with strong anti - interference ability
Sunor ST5200W is our newest lightweight video transmitter for UAV Drone link system. Its working frequency is 300-860MHz, supports video data transmission in the condition of high speed movement and multi-path interference. The transmission distance is 15-30km.
Mainly used in UAV video Aerial photography transmission scenario, the device will transmit video signal to the receiver display video images, can do real-time monitoring and remote command.
Features:
Application:
As its small size, lightweight and low RF power, the transceiver is widely used in multiple rotor drone, flight test.
Parameters
| Power | ||
| Working Voltage | DC12V | |
| Working Current | 2A | |
| RF | ||
| Working Frequency | 160MHz~860MHz | |
| Output Power | 33dBm | |
| RF Bandwidth | 2/4/6/8 MHz | |
| Modulation | COFDM | |
| Serial Port | ||
| Data | Half-duplex transparent data transmission(OSD UART) | |
| Serial Port | Config UART | |
| System | ||
| Convolutional Encode ratio | 1/2, 2/3, 3/4, 5/6, 7/8 | |
| Modulation | QPSK/QAM16/QAM64 | |
| IFFT | 2K/8K | |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 | |
| High Definition Multimedia Interface | ||
| Version | High Definition Multimedia Interface mini | |
| Resolution Ratio | Max 1080*1920/60P | |
| Video Encoding | H.264 | |
| CVBS | ||
| Video Encoding | H.264 | |
| Video Input Format | PAL/NTSC | |
| Encryption | ||
| Encryption | AES 256 | |
| Antenna | ||
| Omni Antenna | SMA | |
| Weight & Dimension | ||
| Weight | 136g | |
| Dimension | 75*65*28mm | |
