Compact long range 50km UAV video data transmission system up to 5 Mbps data rate

Basic Information
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST50HPT
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Contact Now
Detail Information
Modulation: COFDM RF Power: 2W
Transmission Distance: Air To Ground 40-70km Duplex Data: Support SBUS/PPM/TTL
Video Input: HDMI Net Weight: TX 146g/RX 146g

Product Description

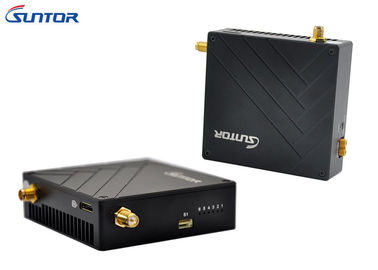

Compact long range 50km UAV video data transmission system up to 5 Mbps data rate



ST50HPT Specs.pdf



UAV video data link systems
With the ever increasing requirement for UAV Datalink (Unmanned Aerial Vehicle) applications both in Military Surveillance and Police Surveillance operations, Enterprise Control Systems Ltd are at the forefront of the design and manufacture of microwave surveillance equipment to carry video, data and telemetry signals suitable for integration into UAV platforms. Our most technologically advanced product specifically designed for use in UAV applications, a lightweight air platform transceiver.



Key features:

  • Light weight, low power consumption
  • Provide RJ45 RS232 interdace, video audio data and signal all can transmission
  • HD1080P, clear and stable image , no tailing phenomenonStrong diffraction ability
  • Long-distance transmission up to 70km.
  • Support SBUS,PPM,TTL contol signal transmission
  • RJ45+TTL bidirectional serial port. The serial port can match external S1and S2 module



Advantages:
Light weight, mini size, low power consumption, high stability and receiving sensitivity. With RJ45 and TTL bidirectional serial port, this model can wireless transmit video and Ethernet Data.



Parameters

Frequency 2.4GHz(2.400-2.482GHz)
Wireless Fault-tolerant Wireless Baseband FEC Forward Error Correction / Video MPEG Super Error Correction
TDMA Modulation Downstream QPSK / Uplink BPSK
RF Transmitted Power 33dbm(Air to ground 40-70km)
Power Consumption TX: 12Watts/RX: 9Watts
Bandwidth 2/4/6/8MHz
Link rebuild time ≤1s
Latency ≤15-30ms
Antenna

1T1R

TX: 5db(Omni Antenna)

RX: 12db(Omni Antenna)

Video Color Space Default 4:2:0/optional: 4:2:2/4:4:4
Video Compressed Format AVC adds H.265 feature TS stream
Communication Channel Encryption WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256
Transmission Mode point to point / point to multipoint
Transmission Distance Air to ground 40-70km
Start-up time 25s
Two-way function Support SBUS/PPM/TTL
Power supply DC 7- 18V
Temperature

Operating temperature:-40°C ~ 85°C

Storage temperature:-55°C ~ 100°C

Interface

(same interface on TX & RX)

1. 1080P/60 HDMI Mini RX(SDI on request)
2. 100Mbps Ethernet Port
3.Ethernet Port convert to TTL serial port (Support TCP/UDP)

4. RS232 Serial Port

( 12V Electrical Level, Resistant to 3000V pulse voltage for 60 seconds and anti-static protection)

5. RS422/485 Serial Port

(Resistant to 3000V pulse voltage for 60 seconds and anti-static protection)

6. SBUS/PPM Serial Port for Extending Application
7. Audio(Trumpet) S2 Port for Extending Application
8. Power Input XT30 (DC7-18V)
9. Antenna SMA RF
Indicator Light HDMI input/output indicator
Transmitting and receiving WL indicator
Video board indicator
Power
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Dimension 76x73x24mm
Weight TX: 146g, RX: 146g
