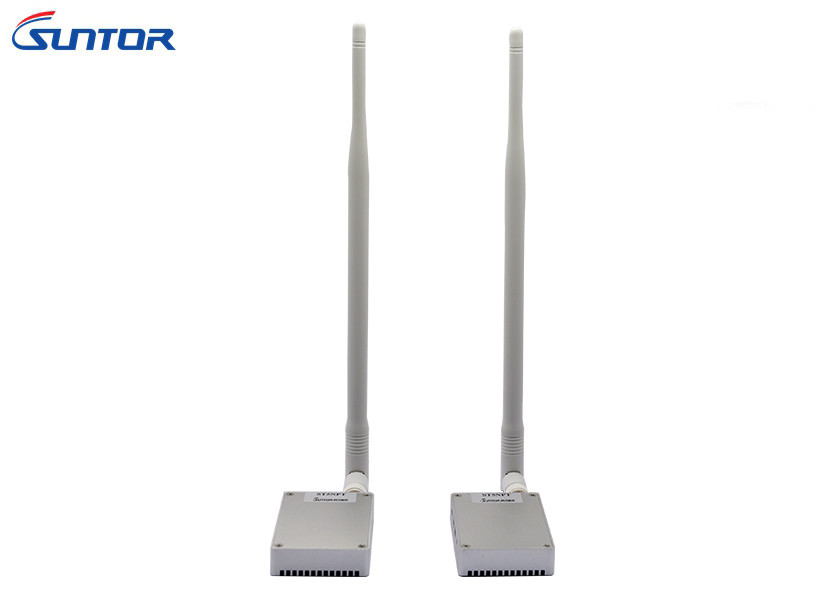

400 MW Drone Helicopter Mini Video Transmitter , 2.4 Ghz Wireless Video Receiver

  • 400 MW Drone Helicopter Mini Video Transmitter , 2.4 Ghz Wireless Video Receiver
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST5NPT
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Frequency Range 2402-2478MHz
Transmission Power 400mW Transmission Range Air To Ground 5km
Transmitting Rate 70Mbps Power Supply DC7~18V Optional
Small Size 68×48x14mm Light Weight 59g
High Light

micro fpv camera and video transmitter

,

micro fpv quadcopter
Leave a Message
Product Description

Mini 400mW 2.4GHz drone helicopter wireless video transmitter & receiver



Product description:
The Wireless HD Video transmitter system ST5NPT is for professional application in wireless aerial transmission. The wireless video system that transmits HD video over the unlicensed 2.4GHz band.
It is featured with long range, ultra-low latency. The system can be powered by batteries.



Key features:

  • Light weight, low power consumption
  • Provide RJ45 RS232 interdace, video audio data and signal all can transmission
  • HD1080P, clear and stable image , no tailing phenomenonStrong diffraction ability
  • Long-distance transmission air to groundtransmission
  • Support point to point and point to multi point transmission
  • Support SBUS,PPM,TTL
  • RJ45+TTL bidirectional serial port. The serial port can match external S1and S2 module



Application:
As its miniature volume, precision design, lightweight and easy to carry, suitable used in short distance and long range air high speed wireless video data transmission purposes. Such as UAV, rotorcraft, micro UAV, drone, UGV, unmanned powered parachute and more video data transmission.



Parameter

Model: ST5NPT
Frequency 2.4GHz (2.402-2.478GHz) Adjustable
RF Transmitting Power

ST5NPT: 23dBm(air to ground 5km)

ST10NPT: 30Bbm(air to ground 10km)

ST20NPT: 33dBm(air to ground 20km)


Frequency Bandwidth 2MHz/20MHz Adjustable
Antenna 1T1R
Adjustment mode of bit rate Software adjustment
Communication Channel Encryption WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256
Transmission Mode point to point / point to multipoint
Start-up time < 30s
Transmission Distance

ST5NPT: Air to ground 5km

ST10NPT: Air to ground 10km

ST20NPT: Air to ground 20km


System Latency 12-25ms
Two-way function

Integrate multiple radio links into one to transmit and receive.

Support SBUS/PPM/TTLS 1 pro communication module

 Optional
Transmitting Rate 70Mbps
Power DC 12V DC7~18V Optional
Power Consumption

ST5NPT

TX: 3Watts

RX: 3Watts

ST10NPT

TX: 4Watts

RX: 4Watts

ST20NPT

TX: 6Watts

RX: 6Watts

 Maximum
Temperature

Operating temperature: -40 - 85°C

Storage temperature: -55 - 100°C


Interface

Power input interface × 1

Antenna interface × 1

RS232 Bidirectional Port × 1

Ethernet to USB / RJ45 on Windows × 1

 Software adjustment
Indicator Light

RJ45 input/output indicator light

Transmitting and receiving indicator light

Transmitting and receiving indicator light

Power light


Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Size 68×48x14mm
Net Weight Tx:59g Rx: 59g
