Product Details
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST6222CZ-HD
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Modulation: |
COFDM |
Working Frequency: |
300MHz～4.4GHz |
Output Power: |
10～40W (LCD Adjustable) |
Code Stream: |
2Mbps～12Mbps |
Transmission Range: |
NLOS Distance: 10-20km LOS Horizontal Distance: 20-30km Air To Ground: 30~50km |
Special Function: |
Two Way Voice |
Video Input: |
HD-SDI, High Definition Multimedia Interface And Analog CVBS (optional) |
Power Supply: |
AC110-230V |
Modulation: |
COFDM |
Working Frequency: |
300MHz～4.4GHz |
Output Power: |
10～40W (LCD Adjustable) |
Code Stream: |
2Mbps～12Mbps |
Transmission Range: |
NLOS Distance: 10-20km LOS Horizontal Distance: 20-30km Air To Ground: 30~50km |
Special Function: |
Two Way Voice |
Video Input: |
HD-SDI, High Definition Multimedia Interface And Analog CVBS (optional) |
Power Supply: |
AC110-230V |

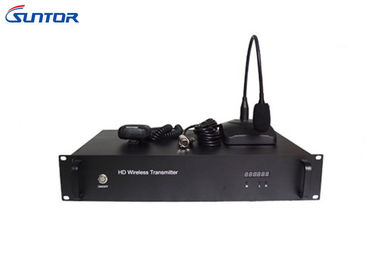

onboard NLOS digital microwave wireless video transmitter with two way voice
ST6222CZ-HD is a digital wireless video transmitter ,specially dsigned for vehicle-mounted application, could transmit high quality video signal in city or on sea where appears multipath effect always.It can realise wide signal coverage without directional antenna depend on its excellent "Diffract" ability .
It can simultaneously transmit one way image, one way Full-duplex bidirectional audio and data.
Device Advantage:
"Vehicle type"
Vehicle type transmitter module, integrating channel modulation digital modulation, power, digital audio and video compression, suitable for vehicle, ship, airborne, output power can simultaneously transmit 20W all images, two road, all data, sound control commands and reverse intercom, suitable for two-way voice car - cars, boats and ships car -- -- -- protection placements, ships, aircraft - protection remote transmission, high-definition image can also be used for wireless remote relief. Tong depending on the circumstances, combined with the receiving antenna, the transmission distance of 100 kilometers above.
Transmitter parameter
| RF | Working frequency | 300MHz～4.4Ghz |
| Output power | 20W | |
| Modulation | COFDM | |
| Channel bandwidth | 2/2.5/4/8MHz | |
| Encryption | AES | |
| Guard Interval | 1/32, 1/16, 1/8, 1/4 | |
| System | Standard | H.264/MPEG-2 |
| Code stream | 2Mbps～12Mbps | |
| System latency | ≤300ms | |
| Error rate | ≤10-6 | |
| Transmission Range |
NLOS Distance: 10-20km LOS Horizontal Distance: 20-30km Air to Ground: 30~50km |
|
| Usage mode | Vehicle-mounted | |
| Audio and Video | Compression format | H.264/MPEG-2 |
| Video input | HD-SDI, High Definition Multimedia Interface and Analog CVBS | |
| Audio input | Left and Right Channel | |
| Image resolution | 1080P(1920*1080)compatible 720P,480P and SD @ Frame rate is 25 fps | |
| Video input physical interface | BNC female port, HD-SDI, High Definition Multimedia Interface standard interface | |
| Aviation Interface |
Hand Microphone(on front panel) RS485(on back panel) |
|
| Audio input physical interface | BNC female port | |
| Others | Power supply | AC110-230V |
| Size | 19" 2U standard crate,485mm×340 mm×90 mm (L×W×H) | |
| Weight | 5kg |
