SD COFDM Hd Wireless Transmitter Individual Soldier Equipment

Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST6200DB-F
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Frequency 300~4400MHz (customizable)
Output Power 1~5W Adjustable NLOS Range 1~3km
LOS Range Air>70km, Marine>30km, City>5km, Suburb>7km Special Function IP66 Waterproof, Dust-proof, Moisture-proof
Resolution 720*576 AV Port CVBS
High Light

long range video transmitter

,

wireless hd video transmitter

Leave a Message
Product Description

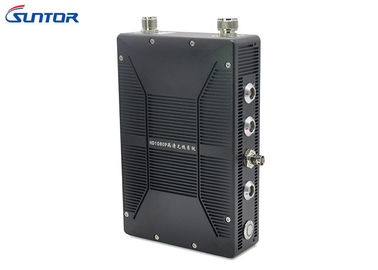

SD Wireless Video COFDM Transmitter Individual Soldier Equipment



Introduction:
This product is a new kind of broadband wireless video equipment that adopts the latest technologies of COFDM modulation and MPEG-2 video compression with IP66 waterproof that can complete video transmission in high-speed motion and NLOS (non line-of-sight) conditions. The diversity receiving technology greatly improves the receiving quality in all conditions. This transmitter is specially designed to meet all necessary transmission requirements of broadcasting standard.



ST6200DB-F is particularly well suited to providing robust wireless video links in mobile and non-line-of-sight urban environments, to a range of over 1 km. Built-in AES128/256-bit encryption ensures security – subject to export controls. Various frequency bands are available within 300 MHz to 4.4 GHz.



Main Features:

  • Lithium battery for power supply
  • Convenient to be carried and installed
  • COFDM modulation and MPEG-2 video compression
  • Firm enclosure with built-in cooling fans, waterproof and shockproof
  • Protection standards: IP66, Dustproof, rainproof design
  • Modular design and highly integrated
  • Good transmission with high definition image and stereo audio
  • Adjustable working frequency, LCD board displays the working frequency
  • Stable transmission in NLOS(non line-of-sight)and high speed mobile conditions.
  • The transmission range is more than 30km in LOS (line-of-sight) environment



Transmitter System
Frequency 138Mhz~4400MHz Customizable
Output Power 1~5W adjustable
Channel Bandwidth 2/2.5/4/8 Mhz
Encryption Scheme Manual AES double encryption
Transmit Distance Air>70km, Marine>30km, City>5km, Suburb>7km, NLOS:1~3km
Power Supply Special battery DC14.4V SONY V style
Receiver System
Frequency 138Mhz~2470MHz
Receiving Sensitivity 2MHz@-103dBm/2.5MHz@-102dBm/4MHz@-100dBm/8MHz@-97dBm
Signal LCD shows the signal strong
Receiving Polarization vertical, dual antenna receiving
Received Technical Space diversity receiving technical
Filter Technical built-in high performance cavity filter technical
Power Supply AC220V or DC12V
System
Modulation COFDM
Working Temperature -40℃~60℃
Code stream 1.5Mbps~6Mbps
Delay 300ms
Error Rate ≤10-6
Usage mode Individual weapon
Video and Audio
Compressed Format H.264/MPEG-2
Video Input Analog CVBS
Image Resolution 720*576
Video/Audio input port BNC
Image fps 25 fps
Packaging Details
Transmitter Size 198*130*49 mm (L*W*H)
Receiver Size 1U, 19 inch case, 480*280*45mm
Transmitter Weight 1.5KG
Receiver Weight 4.0KG



Used Range:
Used for Individual soldier to car, Individual soldier to control center. Due to large power distance,it can field a wide range of mobile high-definition image transmission, LOS with 30KM distance. SD COFDM Hd Wireless Transmitter Individual Soldier Equipment 0
