IP66 Waterproof HD COFDM Transmitter Wireless Video Transmitter 30km UHF For

Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST6200DB-HDF
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Frequency 138-4400MHz (customizable)
Output Power 1~5W Adjustable Resolution Full HD 1080P (1920*1080)
Special Function IP66 Waterproof, Dust-proof, Moisture-proof Transmit Distance Air>70km, Marine>30km, City>5km, Suburb>7km
AV Port HD-SDI, High Definition Multimedia Interface Port And CVBS Input Weight 1.5kg
High Light

long range video transmitter

,

wireless hd video transmitter

Leave a Message
Product Description

IP66 Waterproof 30km HD UHF COFDM Wireless Video Transmitter



ST6200DB-HDF real-time HD Wireless image transmission system, it’s our next-generation broadcast high definition image real-time transmission system. New streamlined closed design, and IP66 three grade standard; used current leading of COFDM modulation technology, relative narrow band of air frequency occupied (2/2.5/4/8MHz) and strong of anti interference capacity. Achieved in NLOS area, high-speed movement shooting and real-time transmission quality image. Combined with efficient new digital video coding standard H.264 compression, clarity to achieve full HD1080P HD picture quality, resolution (1080I, 720P, 480P and 1920*1080 compatibility and SD), support for digital interfaces and analog interface; digital audio and video, HD-SDI, High Definition Multimedia Interface input, analog audio and video interface, CVBS composite input; with delicate quality, condition excellent, rich color HD picture quality features such as ability to regulate.



Strengths

  • New streamlined enclosed trend design
  • IP66 tri-proof standard grade
  • Low temperature area subzero 40°C
  • Manual setting dual AES encryption
  • Devices come with LCD flat panel display parameters,adjustable parameters
  • High quality digital video processing and H.264/MPEG-2 video CODEC
  • AV port: HD-SDI, High Definition Multimedia Interface port and CVBS input
  • Resolution: Full HD 1080P (1920*1080)
  • Standard backpack, good heat dispersion
  • Stable image and video transmission in high speed moving and interference area
  • Strong NLOS transmission
  • Power: 1~5W adjustable



Transmitter System
Frequency 138Mhz~4400MHz Customizable
Output Power 1~5W adjustable
Channel Bandwidth 2/2.5/4/8 Mhz
Encryption Scheme Manual AES double encryption
Transmit Distance Air>70km, Marine>30km, City>5km, Suburb>7km, NLOS:1~3km
Power Supply Special battery DC14.4V SONY V style
Receiver System
Frequency 138Mhz~2470MHz
Receiving Sensitivity 2MHz@-103dBm/2.5MHz@-102dBm/4MHz@-100dBm/8MHz@-97dBm
Signal LCD shows the signal strong
Receiving Polarization vertical, dual antenna receiving
Received Technical Space diversity receiving technical
Filter Technical built-in high performance cavity filter technical
Power Supply AC220V or DC12V
System
Modulation COFDM
Working Temperature -40℃~60℃
Code stream 1.5Mbps~6Mbps
Delay 300ms
Error Rate ≤10-6
Usage mode Individual weapon
Video and Audio
Compressed Format H.264/MPEG-2
Video Input Digital HD-SDI, Analog CVBS audio video or Digital High Definition Multimedia Interface, Analog CVBS
Image Resolution HD1080P(1920*1080), compatible 1080I, 720P, 480P and SD
Video/Audio input port BNC, High Definition Multimedia Interface, Lotus
Image fps Standard 24,50,60 fps
Packaging Details
Transmitter Size 198*130*49 mm (L*W*H)
Receiver Size 1U, 19 inch case, 480*280*45mm
Transmitter Weight 1.5KG
Receiver Weight 4.0KG

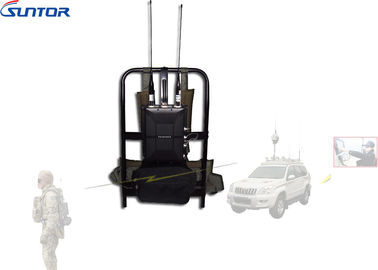

Used for Individual soldier to car, Individual soldier to control center. Due to large power distance,it can field a wide range of mobile high-definition image transmission, LOS with 30KM distance.
