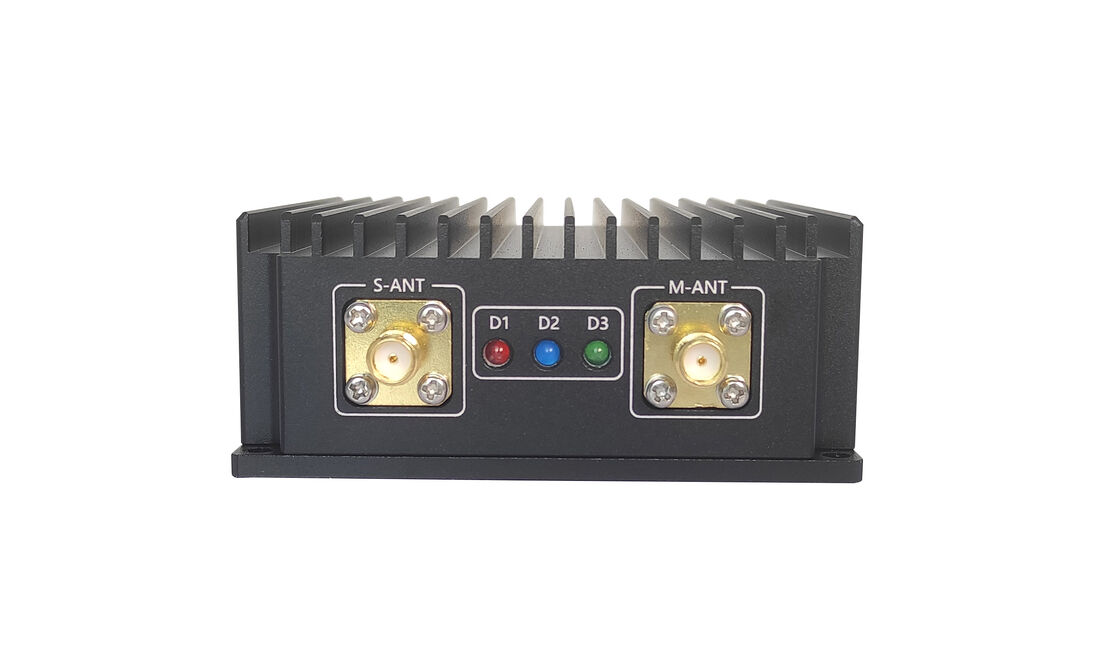

Lightweight UAV Video Link With 24Mbps, Dual Antenna & AES128 Encryption

Name: Lightweight UAV Video Link With 24Mbps, Dual Antenna & AES128 Encryption
Brand: Shenzhen Suntor Technology Co., Ltd.
SKU: CD20Pro
Price: 5,500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Suntor

Certification: CE

Model Number: CD20Pro

Payment & Shipping Terms

Minimum Order Quantity: 1SET

Packaging Details: Plastic Box

Delivery Time: 7-15DAYS

Payment Terms: T/T,Western Union

Supply Ability: 5000/months

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  Lightweight UAV video link, Dual antenna COFDM transmitter, AES128 encrypted video transmitter


Frequency Range:	1428～1448MHz (Standard)	Technology:	TDD-OFDM / MIMO / 1T2R
Modulation:	QPSK / 16QAM / 64QAM	Bandwidth:	5MHz / 10MHz / 20MHz
Data Rate:	24Mbps @ 10MHz (Peak)	Rx Sensitivity:	-99dBm @ 5MHz
Security:	AES128 Encryption	Power:	DC12V～27V Power Supply ≤ 6W @ DC12V Power Consumption (Air)
Weight:	≤ 230g (Air)

Frequency Range:	1428～1448MHz (Standard)
Technology:	TDD-OFDM / MIMO / 1T2R
Modulation:	QPSK / 16QAM / 64QAM
Bandwidth:	5MHz / 10MHz / 20MHz
Data Rate:	24Mbps @ 10MHz (Peak)
Rx Sensitivity:	-99dBm @ 5MHz
Security:	AES128 Encryption
Power:	DC12V～27V Power Supply ≤ 6W @ DC12V Power Consumption (Air)
Weight:	≤ 230g (Air)

Description

Lightweight UAV Video Link With 24Mbps, Dual Antenna & AES128 Encryption

Product Overview

The UAV video transmission device is specifically designed for unmanned intelligent platforms including UAVs, USVs, UGVs, and robot swarm communication networking. This advanced system integrates ultra-long-range wireless communication with multi-protocol interface adaptation, overcoming traditional transmission limitations. It enables 20km+ air-to-ground full-duplex real-time video, audio, telemetry, and remote control data interaction while supporting precise point-to-point control and distributed star-network communication in complex operational environments.

With its compact size, lightweight construction, quick installation, and simple operation, this solution is ideal for UAVs, USVs, UGVs, robots, and other applications requiring integrated image and data wireless transmission. Interface configurations can be customized to meet specific operational requirements.

Technical Specifications

Frequency Range	1428～1448MHz (Standard)
Bandwidth	5MHz / 10MHz / 20MHz
Modulation	QPSK / 16QAM / 64QAM
Transmission Distance	Up to 20km Air-to-Ground
Technology	TDD-OFDM, MIMO, 1T2R
Data Rate	24Mbps @ 10MHz (Peak)
Frequency Options	1.4GHz / 2.4GHz / 800MHz
Rx Sensitivity	-99dBm @ 5MHz
Security	AES128 Encryption
Antenna	Dual SMA Antennas
Weight	230g (Air Unit)
Power Supply	DC12V～27V Power Supply ≤ 6W @ DC12V Power Consumption (Air)

Professional Applications

The CD20Pro Drone Video Transmission Radio is engineered for diverse professional UAV applications across multiple industries:

Aerial Filming & Photography - Provides smooth HD video feed for professional cinematography and live streaming applications
Public Safety & Search-and-Rescue - Delivers reliable long-range communication capabilities for critical missions and emergency response
Industrial Inspection - Enables real-time HD video transmission for infrastructure, utility, and pipeline monitoring operations
Military & Tactical Operations - Offers encrypted, interference-resistant transmission for secure environments and defense applications

Package Contents

The CD15 package includes all essential components for immediate deployment:

Omni Antennas for Air Unit × 2
Omni Antennas for Ground Unit × 2
ETH Cable × 2 or ETH Cable × 1 + SDI/HDMI Cable × 1 (Customized)
Serial Cable × 2
S.BUS Cable × 1
XT30 Power Cable × 1
