Product Details
Place of Origin: China
Brand Name: SUNTOR
Certification: CE
Model Number: CD11HPT
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: contact us
Packaging Details: Packing box
Delivery Time: in 12 days
Payment Terms: T/T
Supply Ability: 5000pcs/month
Transmission Distance: |
Ground To Air 10KM |
Frequency: |
2.3-2.5 GHz |
Interface: |
Ethernet Port/TTL/HDMI |
Bandwidth: |
4/8MHz |
Size: |
76*48*20mm |
Weight: |
93g |
Latency: |
≤15-30ms |
RF Transmitted Power: |
1W |
Transmission Distance: |
Ground To Air 10KM |
Frequency: |
2.3-2.5 GHz |
Interface: |
Ethernet Port/TTL/HDMI |
Bandwidth: |
4/8MHz |
Size: |
76*48*20mm |
Weight: |
93g |
Latency: |
≤15-30ms |
RF Transmitted Power: |
1W |

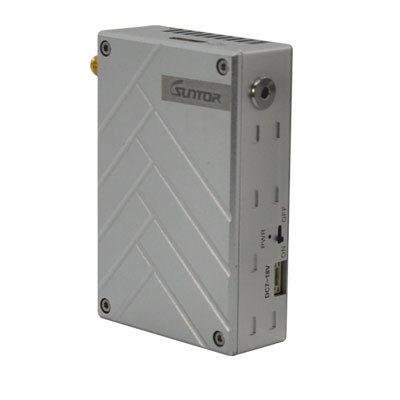

10KM HDMI Interface UAV Video Transmitter and Receiver with low latency
CD11HPT Drone Video Transmitter & Receiver Specifi...
1. Fast details and Feature of HDMI UAV Video Transmitter and Receiver
Operating Frequency: 2.3-2.4GHz
Transmission distance: 10KM
RF Transmission Power: 1W
Bandwidth: 4/8MHz
Safe: AES 128
Power supply: DV12V
Antenna: Omni Antenna for Tx and Rx
Video: Video sources self-adaptive(Max 1080P/60), Support HDMI Input/output
Working Temperature: -40℃—+85℃
Support SBUS/TTL/Mavlink Telemetry
Double Serial Ports for bi-directional Data
Offering control, telemetry & payload in, Video Transmission in 1 RF channel
2.Description of HDMI UAV Video Transmitter and Receiver
ST11HPT is a mini HD Video and Data transmission COFDM system for UAV offering control, telemetry & payload in, Video Transmission in 1 RF channel. It develops CABAC (H.264+H.265) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground 10km) and low delay(15-30ms) transmission.
3.Specification of HDMI UAV Video Transmitter and Receiver
| Frequency |
3 frequency for your option 2.3GHz/2.4GHz/2.5GHz 2.3GHz(2304MHz-2390MHz)(2 antennas design) 2.4GHz(2402MHz-2482MHz)(1 antenna design) 2.5GHz(2500MHz-2570MHz)(2 antennas design) |
| Error Detection | LDPC FEC/Video H.264/265 Super Error Correction |
| RF Transmitted Power | 1Watt (Air to ground 8-10km) |
| Power Consumption | TX: 10Watts |
| RX: 6Watts | |
| Frequency Bandwidth | 4/8MHz |
| Latency | ≤15-30ms |
| Transmission Rate | 3-5Mbps |
| Receive Sensitivity | -100dbm@4Mhz, -95dbm@8Mhz |
| Video Color Space | Default 4:2:0 optional: 4:2:2/4:4:4 |
| Antenna | 1T 1R |
| Video Input/output Interface | HDMI mini TX/RX, or transform FFC to HDMI-A RX/TX |
| Video Compressed Format | H.264 |
| Bit rate | Software adjustment |
| Encryption | AES 128 |
| Transmission Distance | Air to ground 10km |
| Start-up time | < 30s |
| Two-way function | Support video and duplex data simultaneously |
| Data | Support SBUS/TTL/MAVLINK Telemetry |
| Serial Port | Double Serial ports for bi-directional data and playload |
| Power supply | DC 12V (support DC 7- 18V) |
| Interface | 1080P/60 HDMI Mini RX x1 |
| 100Mbps Ethernet to USB / RJ45 on Windows × 1 | |
| S1 TTL bidirectional serial port x1 | |
| Power Input x1 | |
| Indicator Light | HDMI input/output Status |
| Transmitting and receiving | |
| Video board working Status | |
| Power | |
| HDMI | HDMI mini/Flexible Flat Cable(FFC) |
| Temperature Range | Operating temperature: -40°C ~+ 85°C |
| Storage temperature: -55°C ~+ 100°C | |
| Appearance Design | CNC technology/ double aluminum alloy shell with waterproof design |
| Dimension | 76×48×20mm |
| Weight | Tx: 93g/Rx: 93g |
4. Accessories of HDMI UAV Video Transmitter and Receiver
5. FQA for HDMI UAV Video Transmitter and Receiver
Q1. What about the lead time?
A1: Sample needs 5-7 days, mass production time needs 3-4 weeks.
The customized one will based on your requirements and quantity.
Q2. Can I have a sample order for wireless vedio data Link?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. Do you have any MOQ limit for COFDM Transmitter order?
A3: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A4: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
Q5. Is it OK to print my logo on COFDM Transmitter product?
A4: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
