Product Details
Place of Origin: China
Brand Name: Suntor
Certification: CE
Model Number: CD100NMT
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: contact us
Packaging Details: Packing box
Delivery Time: in 12 days
Payment Terms: T/T
Supply Ability: 5000PCS/month
Operating Frequency: |
1428~1448 MHz |
Transmission Distance: |
100KM |
Bandwidth: |
3/5/10/20 MHz |
Power Supply: |
DC24~30V |
Size: |
124*67.8*28.5mm |
Weght: |
250g |
Operating Frequency: |
1428~1448 MHz |
Transmission Distance: |
100KM |
Bandwidth: |
3/5/10/20 MHz |
Power Supply: |
DC24~30V |
Size: |
124*67.8*28.5mm |
Weght: |
250g |
CD100NMT Drone Video Transmitter & Receiver Specif...
1. Fast details of Transmission Data Link
Operation Frequency: 1428~1448 MHz
Bandwidth: 3/5/10/20 MHz
Modualtion mode: QPSK/QAM16/AQM64
Wireless Transmit Power: 10W
Transmission distance: 15/30/80/150KM can be choose.
TWO-Way broadband wireless link device
2. Description of Transmission Data Link
CD100NMT Wireless Link device realize long-distance two-way wireless video, audio, data transmission,The maximum air-to-ground transmission distance can reach about 100km. The ST100NMT device provides multiple service interfaces, including 2 Ethernet ports, 3 serial ports, and audio input and output interfaces.
The data transmission from the central node to the access node is called the downlink, and the data transmission from the access node to the central node is called the uplink. In point-to-point or point-to-multipoint communication.
The device automatically adjusts the wireless transmission rate according to the service data stream it carries, and the smaller the amount of service data it carries, the farther the transmission distance will be under the same conditions. Therefore, when using the device to transmit IP Camera video data, the wireless transmission distance can be improved by setting the appropriate reduction of the IP Camera video encoding bitrate.
3. Specification of Transmission Data Link
| Using technology |
OFDM
|
| Service interface |

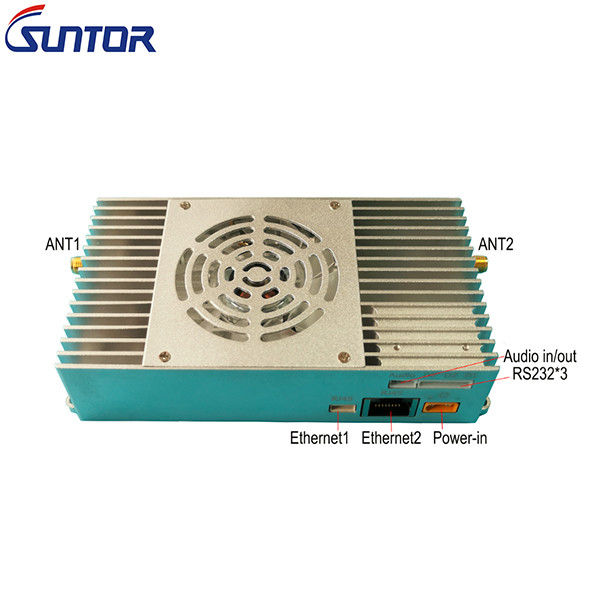

2 Ethernet ports, 3 RS232 serial ports, audio input and output ports
|
|
Dual antennas |
SMA surface, ANT1 main antenna working in transceiver mode, ANT2 auxiliary antenna working in receive mode
|
|
Wireless working Frequecy |
1428~1448MHz or 806~826MHz
|
|
Wireless bandwidth |
3MHz, 5MHz, 10MHz, 20MHz, all nodes share working bandwidth, the maximum sharing rate of the system is 30Mbps.
|
|
Modulation mode |
QPSK/QAM16/QAM64 automatic adaptation
|
|
Networking mode |
point-to-point, point-to-multi point star networking
|
|
Wireless Transmit Power |
10W
|
|
The sensitivity of the node receive |
10MHz bandwidth-103
|
|
Power supply |
DC24~30V,recommended 28V power supply, the maximum average power consumption is less than 1.4A@28V, and the instantaneous peak power supply requirements can reach 2.8A@28V.
|
4. Application of Transmission Data Link
Use of CD100NMT can realize long-distance two-way wireless data communication, point-to-point two-way communication, and point-to-multi-point star networking two-way communication.
In point-to-multipoint communication, if the communication between the two access nodes must be transferred through the central node, each node is in the same wireless LAN, all access nodes and the central node communication share the wireless working bandwidth, the device will automatically distribute the system rate equally.
6. FAQ
Q1. Can I have a sample order for Transmission Data Link?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample needs 5-7 days, mass production time needs 1-2 weeks,will based on your quantity
Q3. Do you have any MOQ limit for Transmission Data Link?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT.
Q5. Is it OK to print my logo on Transmission Data Link?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. Except this item,which one can you do?
A6: We also have device for transmission distance for 5/10/15/20/30/50/100KM,and working frequecny is 800MHz/1.4GHz/2.4GHz.
For the inteface,we also have different one for customer choose.
