5W Manpack COFDM Transmitter RF Long Range Video Transmitter 37dBm

  • 5W Manpack COFDM Transmitter RF Long Range Video Transmitter 37dBm
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST9500T
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Frequency Range 300MHz~860MHz
RF Power 37dBm (5Watts) Video Port SDI/High Definition Multimedia Interface/ CVBS
Power Input DC12V 3.5A Net Weight 1.2kg
High Light

long range video transmitter

,

wireless hd video transmitter
Leave a Message
Product Description

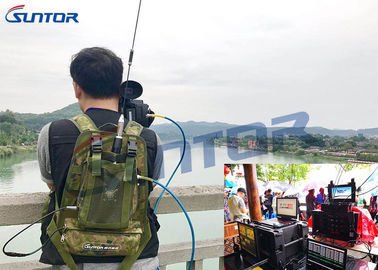

5W manpack RF long distance COFDM digital videolink transmitter



ST9500T Specs Sheet.pdf



Using effect: https://youtu.be/bYKR3BQdw9s



Suntor ST9500T wireless COFDM radio encrypted video link is our latest designed manpack digital wireless transmission equipment, which uses the advanced processing technology and leading division COFDM modulation combine to provide a perfect two-way encryption (encryption support AES 128/256) transmission. Effectively achieve real-time, anti-multipath, high-speed mobile image duplex transmission and network building function.



Features:

  • H.264 video decoding, support HD 1080i/P
  • Transmission encryption for higher security
  • 2/3/4/5/6/7/8MHz multiple bandwidth adjustable
  • SDI video, embedded audio and composite video input, High Definition Multimedia Interface interface
  • Support unbalanced and balanced stereo input
  • Transmitting power output adjustable



Application:
Beyond Visual Line of Sight (BVLOS) UAV IndustriesBeyond Visual Line of Sight (BVLOS) UAV Industries, patrol mission,long range wireless video broadcast.



TX Parameters

Frequnecy Video: 300MHz~860MHz
Power 37dBm (5Watts)
Video Coding H.264
Video Mini High Definition Multimedia Interface: 1080 60P/1080 50P/1080 30P/1080 25P/1080 24P/1080 60I/1080 50I/1080 30I/720 60P/720 50P/720 30P(self-adaption)
AV in: 720x480 60I(NTSC)/720x576 50I(PAL)(self-adaption)
Audio Mini HDM
AV in & Audio in
Antenna UHF
Modulation Convolution coding ratio: 1/2, 2/3, 3/4, 5/6, 7/8
Support QPSK/QAM16/QAM64
Support IFFT: 2K/8K
Guard Interval: 1/4, 1/8, 1/16, 1/32
Bandwidth: 2/3/4/5/6/7/8 MHz
Encryption: AES256
Latency 40-80ms
Power Input DC12V 3.5A
Size 140*45*215mm
Net Weight 1.2kg
