UHF HD COFDM Wireless System with LCD receiver box for long range live broadcast

Basic Information
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST9500T
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Contact Now
Detail Information
Modulation: COFDM Frequency Range: 300MHz~860MHz
RF Power: 37dBm (5Watts) Video Coding: H.264
Power Input: DC12V 3.5A Net Weight: 1.2kg

Product Description

UHF HD COFDM Wireless System with LCD receiver box for long range live broadcast



ST9500T Specs Sheet.pdf



Using effect: https://youtu.be/bYKR3BQdw9s



Describe:

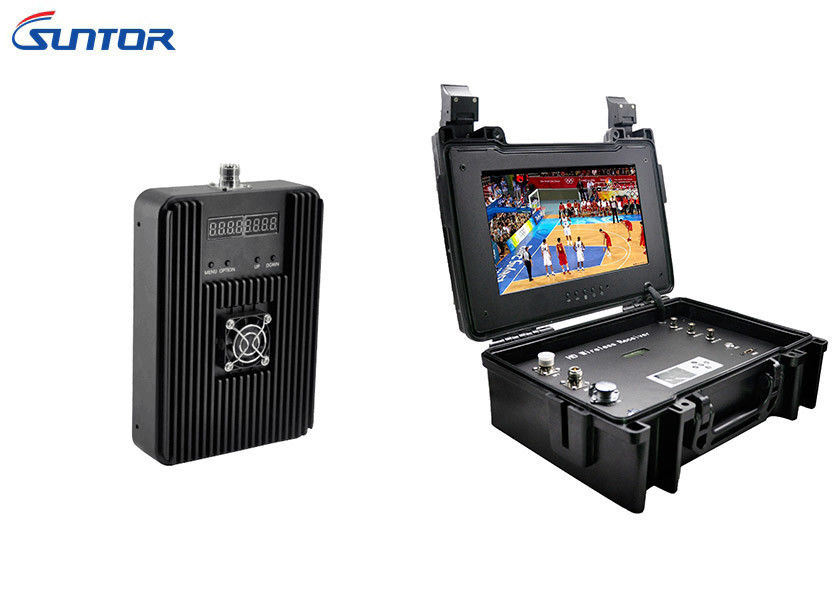

ST9500T is Suntor new design manpack COFDM wireless device, it have parameter adjusted LCD, with cooling fan to make it long time working without any safe problem.In order to make sure you can real time to see the video, Suntor design a new LCD receiver internal battery, it also can store HD video by USB flash drive or 32G TF card. This no need monitor, DVR and battery. Provide great convenience for operation.



Features:

  • Almuminum-unibody housings featured,good impact resisitance and heat dissipation;
  • One channel video and stereo channel audio simultaneously input;
  • Excellent performance in NLOS and movement condition



Packing:

  • Transmitter *1
  • Receiver *1
  • Antenna *3
  • Power supply
  • RF cable



TX Parameters

Frequnecy Video: 300MHz~860MHz
Power 37dBm (5Watts)
Video Coding H.264
Video Mini HDMI: 1080 60P/1080 50P/1080 30P/1080 25P/1080 24P/1080 60I/1080 50I/1080 30I/720 60P/720 50P/720 30P(self-adaption)
AV in: 720x480 60I(NTSC)/720x576 50I(PAL)(self-adaption)
Audio Mini HDM
AV in & Audio in
Antenna UHF
Modulation Convolution coding ratio: 1/2, 2/3, 3/4, 5/6, 7/8
Support QPSK/QAM16/QAM64
Support IFFT: 2K/8K
Guard Interval: 1/4, 1/8, 1/16, 1/32
Bandwidth: 2/3/4/5/6/7/8 MHz
Encryption: AES256
Latency 40-80ms
Power Input DC12V 3.5A
Size 140*45*215mm
Net Weight 1.2kg
