Product Details
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: CD30HPT
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Flay Control System: |
Pixhawk |
Video Out: |
Mini High Definition Multimedia Interface And Mini Rj45 |
Carrier: |
2K, 8K |
Sensitivity: |
-100dbm@4Mhz, -95dbm@8Mhz |
Encryption: |
AES 128/256 Bits |
Bandwidth: |
4/8Mhz |
FEC: |
1/2,2/3,3/4,5/6,7/8 |
Delay: |
15-30ms |
Flay Control System: |
Pixhawk |
Video Out: |
Mini High Definition Multimedia Interface And Mini Rj45 |
Carrier: |
2K, 8K |
Sensitivity: |
-100dbm@4Mhz, -95dbm@8Mhz |
Encryption: |
AES 128/256 Bits |
Bandwidth: |
4/8Mhz |
FEC: |
1/2,2/3,3/4,5/6,7/8 |
Delay: |
15-30ms |
CD30HPT Drone Video Transmitter & Receiver Specifi...
Introduction

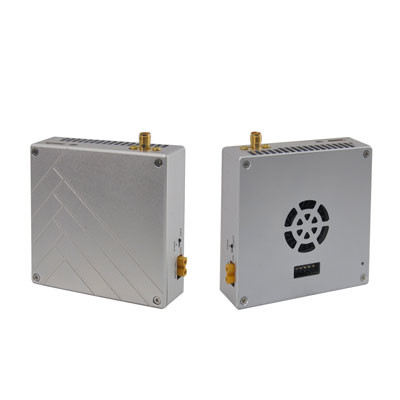

This extremely small professional UAV COFDM transmitter fits in any UAV/Drone/UAVs/Helicpter/FPV/Multirotor aerial. It is the world’s fastest (delay 15-30 ms only) COFDM video transmitter. Together with our mini COFDM receiver, it forms a very professional unit to work well with Pixhawk fly control system. The power output of 1500 mW ensures trouble-free transmission up to 30 km with -100bm@4Mhz receiving sensitivity. Double Antenna design to ensure the UAV no matter what direction it fly, the signal transmission is very smooth and stable.
Feature:
TX
RX
| Technical Parameters | |
| Transmission Power | 2W |
| Transmission frequency | 2.402 – 2.478 GHz |
| Signal bandwidth | 2Mhz, 4MHz, 6 MHz, 8 MHz |
| Transmission rate | 3.3 – 5 MBit/sec |
| Delay time | 15-30ms |
| Video Input | High Definition Multimedia Interface, Ethernet, CCVBS(Using a mini converter) |
| Video standard | High Definition Multimedia Interface, IP, PAL/NTSC |
| Compression | H.264 +H.265+TS Stream Format |
| Modulation | COFDM (QPSK, 16 QAM, 64 QAM) |
| Encryption | AES 128/256 bits |
| Power consumption | TX:12Watts/RX:5Watts |
| Power supply | 7 – 18V DC |
| Video IN | Mini High Definition Multimedia Interface and Mini Rj45 |
| Video Out | Mini High Definition Multimedia Interface and Mini Rj45 |
| Antenna | Double SMA Interface |
| Data | Bidirectional Serial Port |
| Flay control System | Pixhawk |
| Weight | TX/RX: 146g/93g |
| Operating Temperature | -45°C – +85°C |
