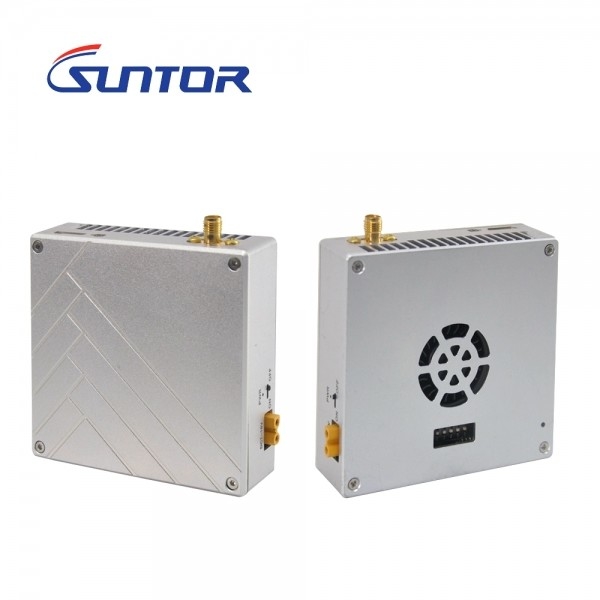

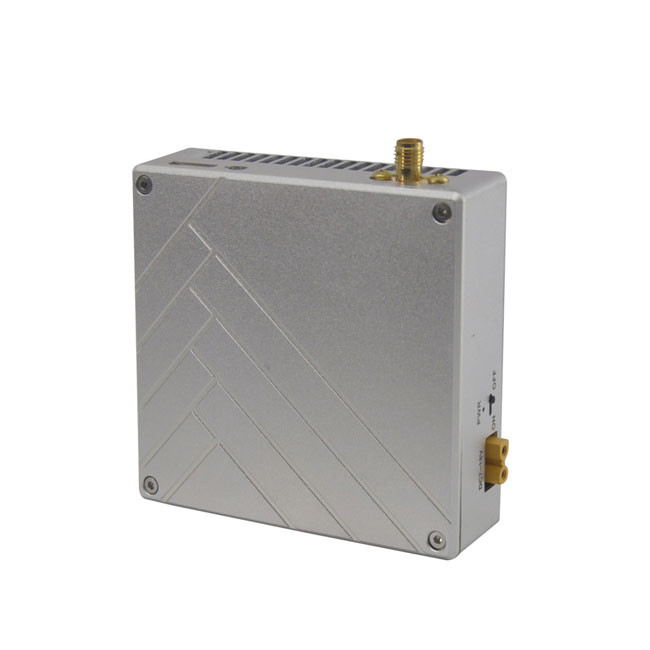

CD30HPT 30km TDD COFDM UAV Data Link HD Video & Duplex Data Transmission System

  • CD30HPT 30km TDD COFDM UAV Data Link HD Video & Duplex Data Transmission System
  • CD30HPT 30km TDD COFDM UAV Data Link HD Video & Duplex Data Transmission System
  • CD30HPT 30km TDD COFDM UAV Data Link HD Video & Duplex Data Transmission System
  • CD30HPT 30km TDD COFDM UAV Data Link HD Video & Duplex Data Transmission System
  • CD30HPT 30km TDD COFDM UAV Data Link HD Video & Duplex Data Transmission System
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number CD30HPT
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage DC7-18V Current TX/RX: 1A/0.41A(@12V)
Operating Temperature -40°C ~+85°C RF Interface SMA
Encryption AES128Bit Video Stream 3-5Mbps(H.264+H.265)
Video Output High Definition Multimedia Interface/Ethernet RF Power 1.5watts
Highlight

uav video link

,

uav video transmitter
Leave a Message
Product Description

CD30HPT Drone Video Transmitter & Receiver Specifi...



Introduction



COFDM technology offers robust digital video and data transmission in the most demanding scenarios of severe multi-path. Through innovative design techniques, we have eliminated the handicap that plagued this technology – high power consumption. The result is a higher RF output transmitter with less than half the DC power consumption of the competition. SUNTOR UAV transmission system Rf has tested the wireless link to be robust up to 75 miles at 2.4GHz with normal 35dBm power output in airborne applications. This winning combination is available in the frequency range of 2403-2478Mhz.



Features:



  • COFDM modulation technology ensure the stability of signal
  • Support FULL HD quality,1080i/P@60fps
  • Built-in with High Definition Multimedia Interface and Bidirectional Serial ports
  • Provide AES128 encryption for video safety
  • It will be HD1080P/i transmission when the RF bandwidth is 4/8MHz.;
  • 1.5W rf power adjustable
  • Low delay time 15-30ms
  • With four holes at the bottom of the transmitter for fixed installation on UAV/drone
  • Well compatible with Pixhawk Auto Pilot System



CD30HPT 30km TDD COFDM UAV Data Link HD Video & Duplex Data Transmission System 0



RX Interface Definition



CD30HPT 30km TDD COFDM UAV Data Link HD Video & Duplex Data Transmission System 1

Technical Parameters
Working voltage V DC7~18V
Working current A TX/RX: 1A/0.41A@DC12V
Frequency 2402-2478Mhz
Frequency bandwidth 4/8Mhz for HD System
RF Power output 1.5W (adjustable by software)
SHG >52dBc
Modulation COFDM
Encryption AES128/256bits
Constellation QPSK,16QAM,64QAM
FEC 1/2,2/3,3/4,5/6,7/8
Carrier 2K,8K
Guard Interval 1/32,1/16,1/8,1/4
Flatness Full band≤2dB,8MHz≤0.5dB
AV input High Definition Multimedia Interface/RJ45
Max speed rate 450km/h
Vidoe resolution Maximum 1920*1080 60P
Video coding H.264+H.265
Video bitrate 3-5Mbps
Video format High Definition Multimedia Interface/Ethernet
Operating Temperature -40℃~85℃
Weight TX/RX: 146g/93g
