Product Details
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST9502T
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Power: |
DC 12V/3.5A |
Video: |
High Definition Multimedia Interface And CVBS Output |
Audio: |
Two Way Voice Function(Optional) |
Modulation: |
QPSK/QAM16/QAM64 |
IFFT: |
2K/8K |
Environment: |
NLOS/LOS |
Bandwidth: |
2/3/4/5/6/7/8 MHz |
Receive Sensitivity: |
≤-104dBm@4Mhz/≤-97dBm@8Mhz |
Power: |
DC 12V/3.5A |
Video: |
High Definition Multimedia Interface And CVBS Output |
Audio: |
Two Way Voice Function(Optional) |
Modulation: |
QPSK/QAM16/QAM64 |
IFFT: |
2K/8K |
Environment: |
NLOS/LOS |
Bandwidth: |
2/3/4/5/6/7/8 MHz |
Receive Sensitivity: |
≤-104dBm@4Mhz/≤-97dBm@8Mhz |

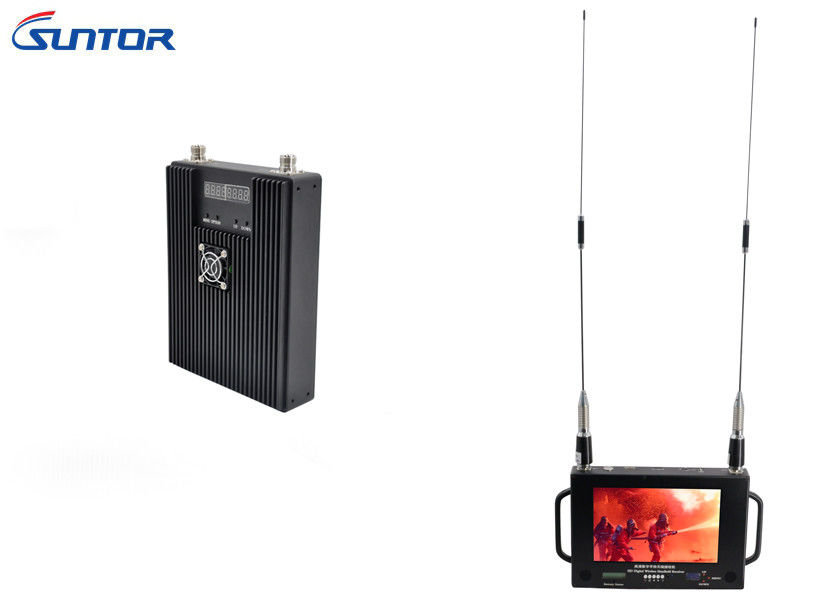

37dBm NLOS 5W Wireless Hd Video Transmitter , Digital professional wireless High Definition Multimedia Interface sender 1080P
Introduction
The system is suitable for HD on live of sporting events, cultural activities, important events as well as aerial photography and so on. H.264 encoder makes a very fruitful refinement and improvement in the efficiency of encoding, reducing coding delay, algorithm optimization, anti-error rate and further improvement of the picture quality. Achieve the best video compression by the lowest Bit rate. Use the advanced video pre-processing technology and efficient video coding algorithm to provide high-quality, low-rate broadcast audio and video signals for digital television broadcasting system, mobile TV systems, IPTV system. Large output power (1W-- 5W), adjustable on site, long distance of transmission, good diffraction ability. The video is clear and stable, can be converted to seamless HD, has no mosaic or drag phenomenon.
Features
| Frequency | 300-900MHz (option) |
| RF power | 5Watt (adjustable) |
| Power supply | DC11-14.5V/2.7A (aviation plug) |
| Modulation | COFDM 2K QPSK |
| RF Bandwidth | 2/2.5/4/8MHz(adjustable) |
| FEC | 1/2 2/3 3/4 7/8 (option) |
| Guard Interval | 1/32 1/16 1/8 1/4(option) |
| Data Encryption | AES 128/256 Bits |
| Max speed | 450km/h |
| Video input | BNC/High Definition Multimedia Interface |
| Audio input | standard Aviation plug, support two-way intercome |
| Video compression format | H.264 |
| Video Resolution | standard 720P ,1280*720 |
| RF Interface | UHF (two aerial connectors) |
| Work environment | -40℃~70℃ |
| Transmission Distance | 1-5KM NLOS |
| Case Material Aluminum | black |
| Size | 200*130*60mm |
| Weight | 1.2kg |
