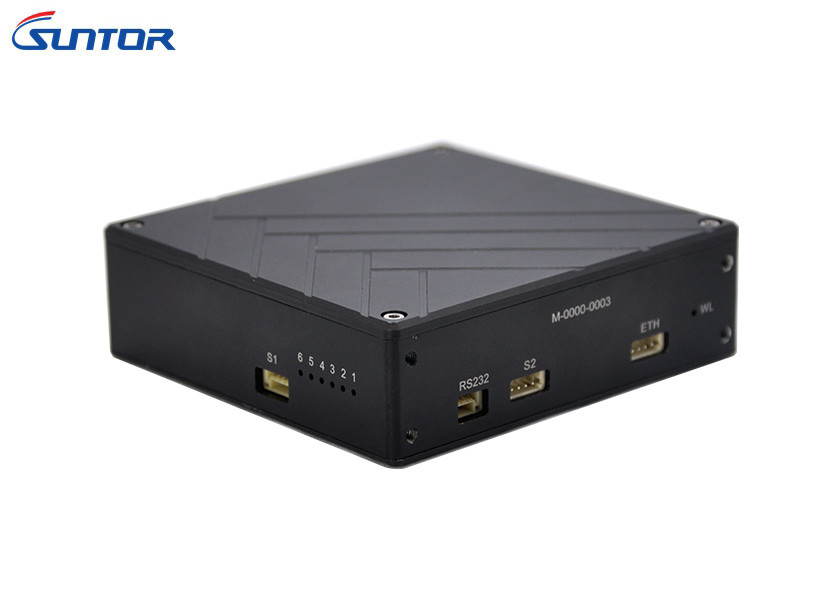

2.4GHZ LOS Wireless Video Data Transmitter COFDM 50km Ummanned Mining Drones Transmitter

  • 2.4GHZ LOS Wireless Video Data Transmitter COFDM 50km Ummanned Mining Drones Transmitter
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST50HPT
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation TDD-COFDM Frequency Range 2.400-2.482GHz
RF Transmitted Power 33dBm Transmission Range Air To Ground 40-70km
Two-way Function Support SBUS/PPM/TTL Power Supply DC 7- 18V
Operating Temperature -40°C ~ 85°C Net Weight TX: 146g, RX: 146g
High Light

wireless video transmitter and receiver

,

audio video transmitter

,

50km Wireless Video Transmitter
Leave a Message
Product Description



Customized 2.4GHZ LOS Wireless Video Data Transmitter COFDM 50km Long Range



ST50HPT Specs.pdf



Introduction:

  • This transmitter system consist of video transmitter, HD video receiver and necessary accessories (including antenna, connecting line and software)
  • Suntor series wireless video transmission systems adopt narrowband modulation technique. On one hand, this support unprecedented spectrum effectiveness; on the other hand, increase system receiving sensibility and extend the transmission distance
  • Suntor ST50HPT transmit power is 3W, this could provide very robust communication link.



Main Features:

  • Transmitting two way high-quality (HD 1920*1080) video and two way serial data
  • Integrating RC, MavLink, HD video, ethernet data all function into one link
  • Carrier moving speed can reach up to 380 km/H
  • AES encrypted transmission
  • Narrowband HD transmission
  • Applied to all kinds of Unmanned aircraft depend on small size ,light weight ,low power consumption
  • Work frequency of UHF and 2.4GHz optional



Application:
As its miniature volume, precision design, lightweight and easy to carry, suitable used in short distance and long range air high speed wireless video data transmission purposes. Such as UAV, rotorcraft, micro UAV, drone, UGV, unmanned powered parachute and more video data transmission.



Parameters

Frequency 2.4GHz(2.400-2.482GHz)
Wireless Fault-tolerant Wireless Baseband FEC Forward Error Correction / Video MPEG Super Error Correction
TDMA Modulation Downstream QPSK / Uplink BPSK
RF Transmitted Power 33dbm(Air to ground 40-70km)
Power Consumption TX: 12Watts/RX: 9Watts
Bandwidth 2/4/6/8MHz
Link rebuild time ≤1s
Latency ≤15-30ms
Antenna

1T1R

TX: 5db(Omni Antenna)

RX: 12db(Omni Antenna)
Video Color Space Default 4:2:0/optional: 4:2:2/4:4:4
Video Compressed Format AVC adds H.265 feature TS stream
Communication Channel Encryption WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256
Transmission Mode point to point / point to multipoint
Transmission Distance Air to ground 40-70km
Start-up time 25s
Two-way function Support SBUS/PPM/TTL
Power supply DC 7- 18V
Temperature

Operating temperature:-40°C ~ 85°C

Storage temperature:-55°C ~ 100°C

Interface

(same interface on TX & RX)

 1. 1080P/60 High Definition Multimedia Interface Mini RX(SDI on request)
2. 100Mbps Ethernet Port
3.Ethernet Port convert to TTL serial port (Support TCP/UDP)

4. RS232 Serial Port

( 12V Electrical Level, Resistant to 3000V pulse voltage for 60 seconds and anti-static protection)

5. RS422/485 Serial Port

(Resistant to 3000V pulse voltage for 60 seconds and anti-static protection)
6. SBUS/PPM Serial Port for Extending Application
7. Audio(Trumpet) S2 Port for Extending Application
8. Power Input XT30 (DC7-18V)
9. Antenna SMA RF
Indicator Light High Definition Multimedia Interface input/output indicator
Transmitting and receiving WL indicator
Video board indicator
Power
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Dimension 76x73x24mm
Weight TX: 146g, RX: 146g
