PC display 1080P fixed wing Drone Video Transmitter High Definition Multimedia Interface and ethernet output

  • PC display 1080P fixed wing Drone Video Transmitter High Definition Multimedia Interface and ethernet output
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST11HPT
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation TDD-COFDM Frequency 2.4GHz
RF Power 1W Video Input High Definition Multimedia Interface
Video Output High Definition Multimedia Interface And Ethernet Resolution Full HD 1080P
Transmission Distance 8-12 Km Weight Tx: 94g Rx: 98g
High Light

drone transmitter and receiver

,

uav video transmitter
Leave a Message
Product Description

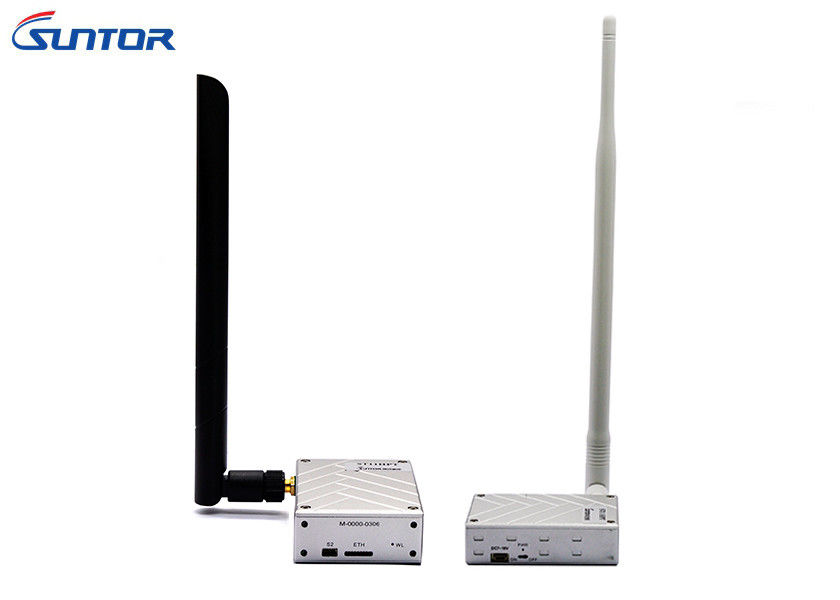

PC display 1080P fixed wing Drone Video Transmitter High Definition Multimedia Interface and ethernet output



ST11HPT Specs.pdf



TDD-COFDM wireless video data links advantages:

  • 1. Long range transmission distance 8-12km;
  • 2. Delay time very short less than 25ms;
  • 3. Perfect image quality, brighter colors and image smoothness.
  • 4. Micro and lightweight less than 100g

Features

  • Modulation: TDD-COFDM
  • Transmission Distance: Air to ground 5-12km
  • System Latency: ≤12-25ms
  • Support SBUS/PPM/TTL/232/485
  • High Definition Multimedia Interface and ethernet output
  • Light weight less than 100g



Parameters

Frequency

 2.4GHZ(2.402-2.478GHz)
Frequency Bandwidth 2/4/6/8MHz
Latency ≤12-25ms
Video Input/output Interface High Definition Multimedia Interface mini TX/RX, or transform FFC to High Definition Multimedia Interface-A RX/TX
Video Compressed Format H.264+H.265
Adjustment mode of bitrate Software adjustment
Receive Sensitivity -100dbm ~ -90dbm
Two-way function Support video and duplex data simultaneously
Data Support SBUS/PPM/TTL
Power supply DC 7- 18V (DC 12V advised)
Working Temperature -40℃~+85℃



Parameter

Model

 RF Transmitted Power Transmission Distance (Air to Ground)

Antenna Gain

(Tx: 5dBi)

 Power Consumption Dimension Net Weight
ST5XHPT 400mW 5km Rx: 7dBi Tx: 7W Rx: 5W 73×48×14mm

Tx: 58g

Rx: 58g
ST5HPT 400mW 5km Rx: 7dBi Tx: 6W Rx: 5W 72×47×19mm

Tx: 94g

Rx: 94g
ST11HPT 1W 8-12km Rx: 8dBi Tx: 7W Rx: 5W 72×47×19mm

Tx: 94g

Rx: 94g



Application:
As its small size, lightweight and low RF power, the transceiver is widely used in multiple rotor drone, flight test.
