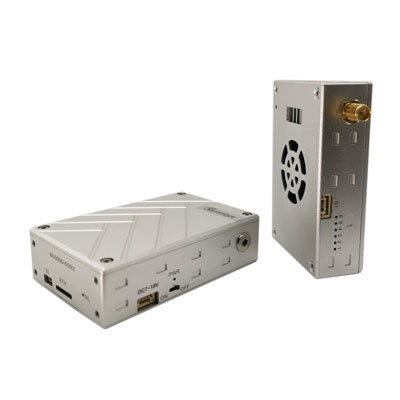

CD05HPT TDD - COFDM HD Transmitter , Video Link High Definition Multimedia Interface Wireless Transmitter Receiver
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Modulation | TDD-COFDM | Frequency | 2.4GHz(2.402 - 2.478 GHz) |
|---|---|---|---|
| Distance | 5km | Duplex Data | Support SBUS/PPM/TTL |
| System Latency | 12-25ms | Receive Sensitivity | -100dbm ~ -90dbm |
| Antenna Gain | Tx: 5dBi, Rx: 7dBi | Operating Temperature | -40°C ~+ 85°C |
| Highlight | uav video link,wireless video transmitter hdmi |
||
Product Description
CD05HPT Drone Video Transmitter & Receiver Specifi...
Description
CD05HPT is a Economy mini High Definition Multimedia Interface Video and Data transmission COFDM system for UAV. It support HD1080P video. It develops H.264+H.265 coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground 5km) and low delay(12-25ms) transmission. The system supports (data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.
Product Features:
- 1. Transmission power 400mW;
- 2. Extreme lightweight and Small dimensions;
- 3. Duplex Data Transmission: PPM/SBUS/TTL
- 4.Applied COFDM modulation, H.264+H.265 compression;
- 5. Perfect for drone UAV video transmission applications;
- 6. High quality of video transmission, no mosaic, no dragging phenomenon, stable power with adjustable dynamic power.
Application:
The CD05HPT wireless video sender is a mini COFDM video transmitter from Suntor, designed specifically for UAV/ Drones video transmission applications.
Parameters
| Frequency | 2.4GHz(2.402-2.478GHz) |
| Wireless Fault-tolerant | LDPC FEC |
| RF Transmitted Power | 400mW (Air to ground 5km) |
| Power Consumption | TX: 6Watts |
| RX: 5Watts | |
| Frequency Bandwidth | 2/4/6/8MHz |
| Latency | ≤12-25ms |
| Receive Sensitivity | -100dbm ~ -90dbm |
| Video Color Space | Default 4:2:0 optional: 4:2:2/4:4:4 |
| Antenna | 1T1R |
| Video Input/output Interface | High Definition Multimedia Interface mini TX/RX, or transform FFC to High Definition Multimedia Interface-A RX/TX |
| Video Compressed Format | H.264+H.265 |
| Bitrate | Software adjustment |
| Encryption | WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256 |
| Transmission Distance | Air to ground 5km |
| Start-up time | < 30s |
| Two-way function | Support video and duplex data simultaneously |
| Data | Support SBUS/PPM/TTL |
| Power supply | DC 7- 18V |
| Interface | 1080P/60 High Definition Multimedia Interface Mini RX x1 |
| 100Mbps Ethernet to USB / RJ45 on Windows × 1 | |
| S1 TTL bidirectional serial port x1 | |
| Power Input x1 | |
| Indicator Light | High Definition Multimedia Interface input/output Status |
| Transmitting and receiving | |
| Video board working Status | |
| Power | |
| High Definition Multimedia Interface | High Definition Multimedia Interface mini/Flexible Flat Cable(FFC) |
| Temperature Range | Operating temperature:-40°C ~+ 85°C |
| Storage temperature:-55°C ~+ 100°C | |
| Appearance Design | CNC technology/ double aluminum alloy shell with waterproof design |
| Dimension | 72×47×19mm |
| Weight | Tx: 94g/Rx: 94g |
