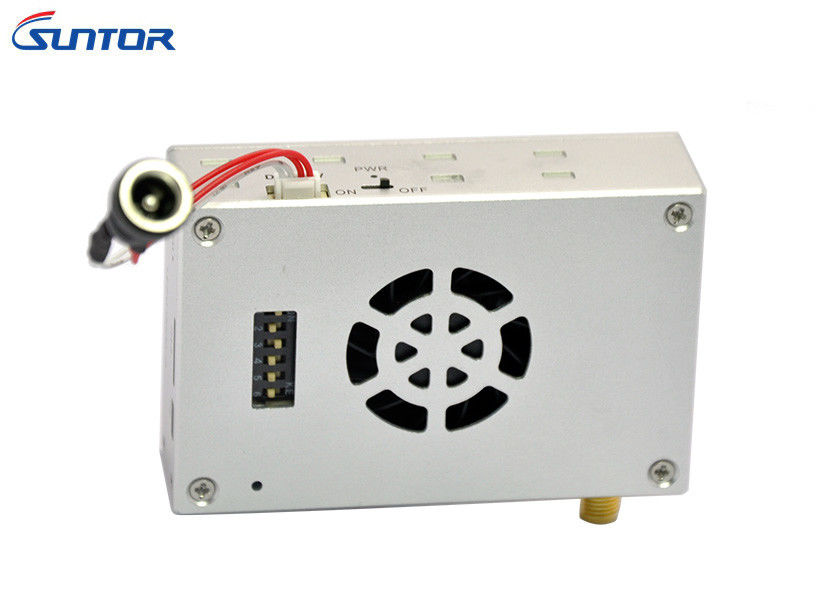

5Km uav video link manufacturers 1080P COFDM Video Transmitter Sender video Transmission

  • 5Km uav video link manufacturers 1080P COFDM Video Transmitter Sender video Transmission
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST5HPT
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation TDD-COFDM Frequency Range 2.402 - 2.478 GHz
Distance Air To Ground 5km Videoport High Definition Multimedia Interface
Resolution Full HD 1080P/60 Duplex Data Transmission PPM/SBUS/TTL
Net Weight TX 94g/ RX 94g Power Supply DC 7- 18V
High Light

wireless video transmitter and receiver

,

audio video transmitter

,

5Km uav video link
Leave a Message
Product Description



5Km Professional 1080P COFDM Video Transmitter Sender with PPM / SBUS / TTL Data Transmission



ST5HPT Specs.pdf



Description

ST5HPT is a mini HD Video and Data transmission COFDM system for UAV. It develops CABAC (H.264+H.265) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground 5km) and low delay(12-25ms) transmission. The system supports two-way(data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.



Product Features:

  • 1. Transmission power 400mW;
  • 2. Extreme lightweight and Small dimensions;
  • 3. Duplex Data Transmission: PPM/SBUS/TTL
  • 4. Applied COFDM modulation, H.264+H.265 compression;
  • 5. Perfect for drone UAV video transmission applications;
  • 6. High quality of video transmission, no mosaic, no dragging phenomenon, stable power with adjustable dynamic power.



Application:
As its small size, lightweight and low RF power, the transceiver is widely used in multiple rotor drone, flight test.





Parameters

Frequency 2.4GHz(2.402-2.478GHz)
Wireless Fault-tolerant LDPC FEC
RF Transmitted Power 400mW (Air to ground 5km)
Power Consumption TX: 6Watts
RX: 5Watts
Frequency Bandwidth 2/4/6/8MHz
Latency ≤12-25ms
Receive Sensitivity -100dbm ~ -90dbm
Video Color Space Default 4:2:0 optional: 4:2:2/4:4:4
Antenna 1T1R
Video Input/output Interface High Definition Multimedia Interface mini TX/RX, or transform FFC to High Definition Multimedia Interface-A RX/TX
Video Compressed Format H.264+H.265
Bitrate Software adjustment
Encryption WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256
Transmission Distance Air to ground 5km
Start-up time < 30s
Two-way function Support video and duplex data simultaneously
Data Support SBUS/PPM/TTL
Power supply DC 7- 18V
Interface 1080P/60 High Definition Multimedia Interface Mini RX x1
100Mbps Ethernet to USB / RJ45 on Windows × 1
S1 TTL bidirectional serial port x1
Power Input x1
Indicator Light High Definition Multimedia Interface input/output Status
Transmitting and receiving
Video board working Status
Power
High Definition Multimedia Interface High Definition Multimedia Interface mini/Flexible Flat Cable(FFC)
Temperature Range Operating temperature:-40°C ~+ 85°C
Storage temperature:-55°C ~+ 100°C
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Dimension 72×47×19mm
Weight Tx: 94g/Rx: 94g
