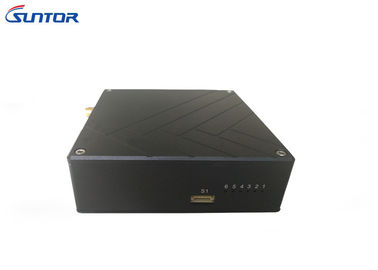

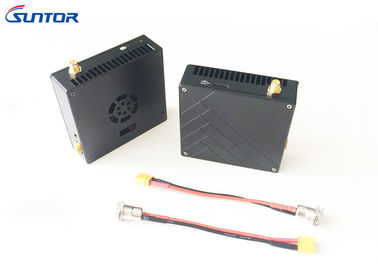

70km LOS UAV HD 1080P Drone Video Transmitter two way data Communication Wireless System

Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST50HPT
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month
Product Details
Delay 15-30ms Video Input High Definition Multimedia Interface Mini/ SDI
Data Two Way Data SBUS/PPM/TTL Range 70km
Encryption AES Power DC7-18V
Power Input XT30 (DC7-18V) Dimension 76x73x24mm
High Light

drone transmitter and receiver

,

uav video transmitter

,

70km 1080P Drone Video Transmitter

Leave a Message
Product Description

70km LOS UAV Video HD1080P Transmitter and two way data Communication Wireless System





Specification Sheet





HD UAV COFDM Transmitter Introduction

Such new design 1080P HD transmitter is a powerful HD transmit system,using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile transmission in city environment.Support full HD 1080P H.264+H.265+ TS Stream encoding format and High Definition Multimedia Interface/SDI two HD inputs(single selection) as well support stereo balance audio input and narrowband transmission system.





Features

  1. Low delay,lightweight,live broadcast;
  2. TDD-COFDM modulation;
  3. Support Full- HD quality image;
  4. Support 1080i/1080P HD transission;
  5. Support composite standard video and balanced audio input;
  6. Built-in with HDM or HD-SDI interface(single selection);
  7. All parameters can be adjusted by software



Parameters



Frequency 2.4GHZ(2.400-2.482GHz)
Wireless Fault-tolerant Wireless Baseband FEC Forward Error Correction / Video MPEG Super Error Correction
TDMA Modulation Downstream QPSK / Uplink BPSK
RF Transmitted Power 33dbm(Air to ground 40-70km)
Power Consumption TX: 12Watts/RX: 9Watts
Bandwidth 2/4/6/8MHz
Link rebuild time ≤1s
Latency ≤15-30ms
Antenna

1T1R

TX: 5db(Omni Antenna)

RX: 12db(Omni Antenna)

Video Color Space Default 4:2:0/optional: 4:2:2/4:4:4
Video Compressed Format AVC adds H.265 feature TS stream
Communication Channel Encryption WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256
Transmission Mode point to point / point to multipoint
Transmission Distance Air to ground 40-70km
Start-up time 25s
Two-way function Support SBUS/PPM/TTL
Power supply DC 7- 18V
Temperature

Operating temperature:-40°C ~ 85°C

Storage temperature:-55°C ~ 100°C

Interface

(same interface on TX & RX)

1. 1080P/60 High Definition Multimedia Interface Mini RX(SDI on request)
2. 100Mbps Ethernet Port
3.Ethernet Port convert to TTL serial port (Support TCP/UDP)

4. RS232 Serial Port

( 12V Electrical Level, Resistant to 3000V pulse voltage for 60 seconds and anti-static protection)

5. RS422/485 Serial Port

(Resistant to 3000V pulse voltage for 60 seconds and anti-static protection)

6. SBUS/PPM Serial Port for Extending Application
7. Audio(Trumpet) S2 Port for Extending Application
8. Power Input XT30 (DC7-18V)
9. Antenna SMA RF
Indicator Light High Definition Multimedia Interface input/output indicator
Transmitting and receiving WL indicator
Video board indicator
Power
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Dimension 76x73x24mm
Weight TX: 146g, RX: 146g
