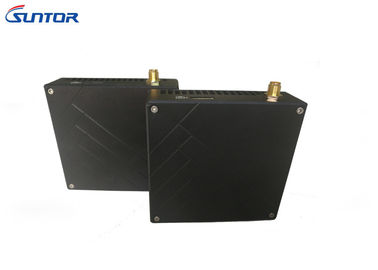

40-70km Mavlink UAV / Drones video link COFDM Transmitter support full HD Video and TTL/SBUS/PPM

  • 40-70km Mavlink UAV / Drones video link COFDM Transmitter support full HD Video and TTL/SBUS/PPM
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST50HPT
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency 2.4GHz Working Temperature -40℃—+85℃
Video Input High Definition Multimedia Interface Data Duplex
Ethernet Transmit Rate 10/100Mbps Wireless Fault-tolerant LDPC FEC
RF Transmitted Power 33dBm Bandwidth 2/4/6/8Mhz
High Light

uav video transmitter

,

drone wireless video transmitter

,

OEM UAV video link COFDM Transmitter
Leave a Message
Product Description

40-70km Mavlink UAV/Drones video link support full HD Video and TTL/SBUS/PPM





Data Sheet







Description



ST50HPT is a mini HD Video and Duplex data transmission COFDM system for UAV. It develops CABAC (H.264+H.265) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground (40-70km) and low delay(12-25ms) transmission. The system supports two-way(data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.



Features



  • Working Temperature: -40℃—+85℃
  • Support Mavlink
  • Support SBUS/PPM/TTL/232/485
  • Video: Video sources self-adaptive(Max 1080P), Support High Definition Multimedia Interface Input/output
  • Support Video and Duplex Data
  • Compatible with different brand flight controller and remote controller
  • 100Mbps Ethernet for option
  • Matching with our TPlayer software (low latency software decoder) to display video on PC.

Parameters:



Frequency 2.4GHZ(2.400-2.482GHz) Adjustable
Wireless Fault-tolerant LDPC FEC
RF Transmitted Power 33dbm(Air to ground 40-70km)
Power Consumption TX: 10Watts/RX: 7Watts
Bandwidth 1-8Mhz Adjustable
Video Input/output Interface Onboard High Definition Multimedia Interface mini TX/RX or FFC convert to High Definition Multimedia Interface-A TX/RX
Latency ≤15-30ms
Bit rate and channel adjustment mode DIP or SPI2MCU
Receive Sensitivity -100dbm ~ -90dbm
Transmitter Interface 1080P 60 High Definition Multimedia Interface Mini RX
100Mbps Ethernet Port
S1 TTL bidirectional serial port
S2 TTL bidirectional serial port
SMA RF
Receiver Interface 1080P 60 High Definition Multimedia Interface Mini RX
100Mbps Ethernet Port
S1 TTL bidirectional serial port
S2 TTL bidirectional serial port
SMA RF
Antenna

1T1R

TX: 7db(25cm Omni Antenna)

RX: 10db(Omni Antenna)


Video Input/output Interface High Definition Multimedia Interface mini TX/RX, or transform FFC to High Definition Multimedia Interface-A RX/TX Support the voice function
Video Color Space Default 4:2:0 optional: 4:2:2/4:4:4
Video Compressed Format AVC, H.265, TS Support the bitrate output
Adjustment mode of bitrate Software adjustment
Communication Channel Encryption WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256
Transmission Mode point to point / point to multipoint
Transmission Distance Air to ground 40-70km
Start-up time 25s
Total delay of the system 15-30ms of 1080P60/720P60 coding and decoding
Two-way function Integrate multiple radio links, SBUS/PPM/TTLS 1 pro communication module Optional
