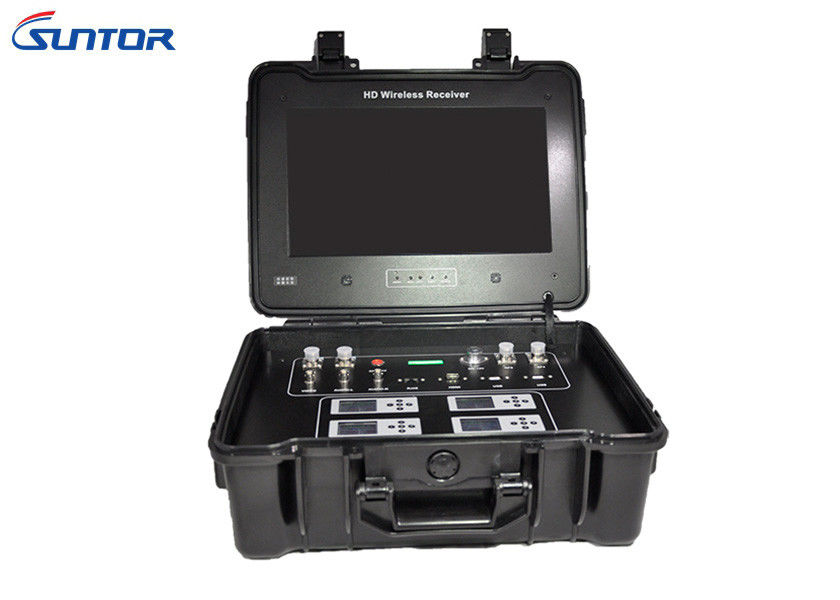

COFMD Digital AV Transmitter Receiver Vehicle Mounted UHF 170-860MHz

Product Details

Place of Origin: Shenzhen, China

Brand Name: SUNTOR

Certification: FCC, CE, RoHS

Model Number: ST6000RSY-3

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000 set/ month

Get Best Price
Contact Now
Specifications
Highlight:

hd sender receiver

,

wireless video receiver

Modulation:
COFMD
Frequency Range:
UHF 170~860MHz
Audio/ Video Output:
3 Channel
Power Supply:
AC220V / DC12V
LCD Size:
15 Inch
Built-inVideo Recorder Battery Capacity:
40AH
Modulation:
COFMD
Frequency Range:
UHF 170~860MHz
Audio/ Video Output:
3 Channel
Power Supply:
AC220V / DC12V
LCD Size:
15 Inch
Built-inVideo Recorder Battery Capacity:
40AH
Description
COFMD Digital AV Transmitter Receiver Vehicle Mounted UHF 170-860MHz

Vehicle-mounted 3CH Commander COFMD Digital AV Transmitter Receiver



COFDM Portable Multifunctional video Receiver
Battery changable
Mini Monitor Inside
USB and Ethernet and High Definition Multimedia Interface



Features:

  • 3CH AV can be showed at a time with high resolution
  • Frequency is adjustable
  • High receiving sensitivity, low system latency
  • Lithium battery and commercial power for power supply
  • COFDM modulation and MPEG-2 video compression
  • High quality video transmission under NLOS(Non line-of-sight) condition
  • USB High Definition Multimedia Interface recording of MEG-2 format audio and video
  • With color LCD monitor, connection to outside monitor available
  • Ethernet interface for compressed video output (MPEG-2/ H.264)
  • Transmission security by encryption of AES 128 bit



Technical parameters ST6000RSY-3

Frequency range

170-860MHz VHF&UHF

Bandwidth

2/3/4/5/6/7/8MHZ

RFinput level

-94dBm~0dBm(@8M)/-98dBm~0dBm(@2M)

RF Input impedance

50 Ohm

RF input connector

N

Modulation

COFDM

Modulation mapping

QPSK,16QAM,64QAM(Optional)

Forward Error Correction

1/2,2/3,3/4,5/6,7/8(Optional)

Number of carriers

2k

Protection interval

1/32,1/16,1/8,1/4(Optional)

Video decoding

MPEG-2MP@ML@ML/H.264/MPEG-R

Aspect Ratio

4:3 16:9


720*576@8MHz

Audio output mode

Stereo Unbalanced 300/ 200mv

Audio output

4 Audio output+4 Video output

Decryption mode

128 decryption, decryption need board support

Voltage

AC220V/DC12V <2A

Working temperature

-20℃~+50℃

Size

460*375*175mm

Weight

10kg
