Product Details
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Model Number: CD30
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: carton box
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Technology: |
TDD-OFDM / MIMO |
Frequency Options: |
1.4GHz / 2.4GHz / 800MHz (Optional) |
Max Transmission Distance: |
50KM |
Data Rate: |
24Mbps @ 10MHz |
Bandwidth Options: |
5 / 10 / 20 MHz |
Encryption: |
AES128 Security |
Weight (Air Unit): |
180g |
Antenna Type: |
Dual Antenna MIMO |
Power Supply: |
DC12V–24V |
Power Consumption: |
≤ 12W @ DC12V |
Interfaces: |
1 × ETH, 1 × TTL Serial |
Operating Mode: |
Point-to-Multi-Point |
Technology: |
TDD-OFDM / MIMO |
Frequency Options: |
1.4GHz / 2.4GHz / 800MHz (Optional) |
Max Transmission Distance: |
50KM |
Data Rate: |
24Mbps @ 10MHz |
Bandwidth Options: |
5 / 10 / 20 MHz |
Encryption: |
AES128 Security |
Weight (Air Unit): |
180g |
Antenna Type: |
Dual Antenna MIMO |
Power Supply: |
DC12V–24V |
Power Consumption: |
≤ 12W @ DC12V |
Interfaces: |
1 × ETH, 1 × TTL Serial |
Operating Mode: |
Point-to-Multi-Point |

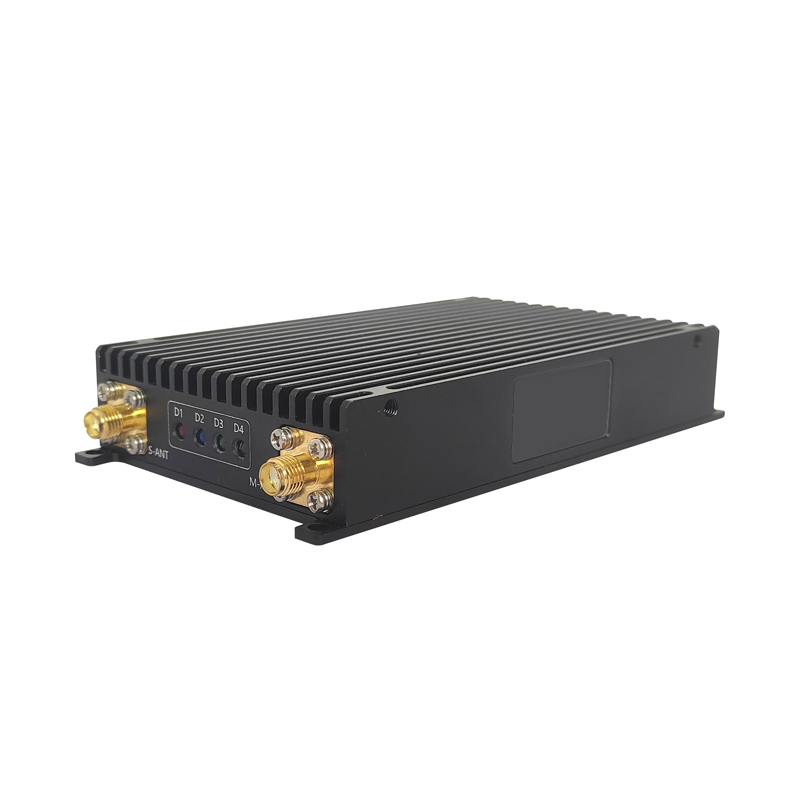

The CD30 COFDM HD UAV Video Transmitter is a lightweight (180g), long-range video and UAV Data Link solution designed for UAVs, drones, and unmanned systems. Featuring dual-antenna MIMO, AES128 encryption, and up to 50KM air-to-ground transmission, it ensures reliable, high-quality video and secure data delivery in complex environments.
| Parameter | Specification |
|---|---|
| Technology | TDD-OFDM / MIMO / 1T2R |
| Modulation | QPSK / 16QAM / 64QAM |
| Data Rate | 24Mbps @ 10MHz |
| Frequency Range | 1.4GHz / 2.4GHz / 800MHz (Optional) |
| Bandwidth | 5 / 10 / 20 MHz |
| Tx Power | 33dBm ± 2 |
| Rx Sensitivity | -99dBm @ 5MHz |
| Encryption | AES128 |
| Dimension (Air Unit) | ≤126 × 69 × 22mm |
| Weight | ≤180g |
