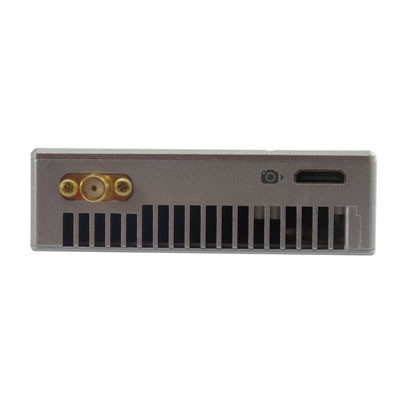

CD30HPT Small Air To Ground 30km Mini Video Transmitter Dual Way Data Video Communication Systems
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Transmission System | COFDM | Frequency Range | 2402~2482MHz |
|---|---|---|---|
| Transmission Power | 1.5W | Transition Distance | Air To Ground 30km |
| Two Way Transmission | Video Audio Data | Working Voltage | DC7~18V Optional |
| Small Size | 72×47x19mm | Weight | 146g |
| Highlight | micro fpv quadcopter,micro video transmitter |
||
Product Description
CD30HPT Drone Video Transmitter & Receiver Specifi...
Introduction:
CD30HPT is Full HD image transmission system equipment professional for UAVs, standard COFDM modulation. The product use of advanced video processing technology and efficient encoding algorithm to improve the coding efficiency and reduce coding delay and increase the error rate, and then improve image quality. It can be the lowest bit rate to achieve the best quality of image.
Supports RF power 400mW-1.5W, High Definition Multimedia Interface AV Input. 2.402-2.478GHz (optional).
Features:
- Zero delay videos wireless transfers prototypes
- Diffraction & through-wall ~ support point to point, point to multipoint
- Two way image & data & voice transmission
- Small size, low consumption, high/low temperature resistance (industrial level)
- Support the High Definition Multimedia Interface input/output and SBUS, PPM, TTL
- Support image transmission & data transmission , combined multiple radio links
- Support 100Mbps Ethernet to output
- 1080P/300 meters altitude up to 30 km transmission distance
- The video is clear and stable, has no mosaic or drag phenomenon.
Application:
As its miniature volume, precision design, lightweight and easy to carry, suitable used in long range air high speed wireless video data transmission purposes. Such as UAV, rotorcraft, micro UAV, drone, UGV, unmanned powered parachute and more video data transmission.
Parameters
| Modulation | COFDM |
| Dimensions | 72×47x19mm (antenna not included) |
| Net Weight | Tx:94g Rx: 98g (antenna not included) |
| Transmission Distance | Air to ground 30km |
| Working Frequency | 2.402-2.478GHz adjustable |
| Transmission Power | 1.5W (31.8dBm) |
| RF Bandwidth | 2/8/20MHz |
| Transmission Mode | point to point / point to multipoint |
| Video Color Space | Default 4:2:0 optional: 4:2:2/4:4:4 |
| Video Compressed Format | H.264 +H.265 TS |
| Video input | High Definition Multimedia Interface / Ethernet |
| Resolution | Full HD 1080P |
| Interface | Power input interface × 1 Antenna interface × 1 RS232 Bidirectional Port × 1 Ethernet to USB / RJ45 on Windows × 1 |
| Two-way function | Integrate multiple radio links, SBUS/PPM/TTLS 1 pro communication module |
| Adjustment mode of bit rate | Software adjustment |
| Communication Channel Encryption | WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256 |
| Working Temperature | -40°C - 85°C |
| Working Voltage | DC7~18V Optional |
| Power Consumption |
TX: 7Watts RX: 5Watts |
| Start-up time | < 30s |
| System Latency | 12-25ms |
