40W Helicopter SD AV Wireless Transmitter COFDM Modulation For Rescue , Reconnaissance

Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST6240CZ-SD
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month
Product Details
Modulation COFDM Working Frequency 300MHz~4.4GHz
Output Power 40W Transmission Distance LOS: 30-100km NLOS: 15-30km
SD Format PAL 720 X 576 ; NTSC 720 X 480 Compressed Format H.264/MPEG-2
High Light

wireless hdmi video transmitter

,

long range wireless video transmitter

Leave a Message
Product Description

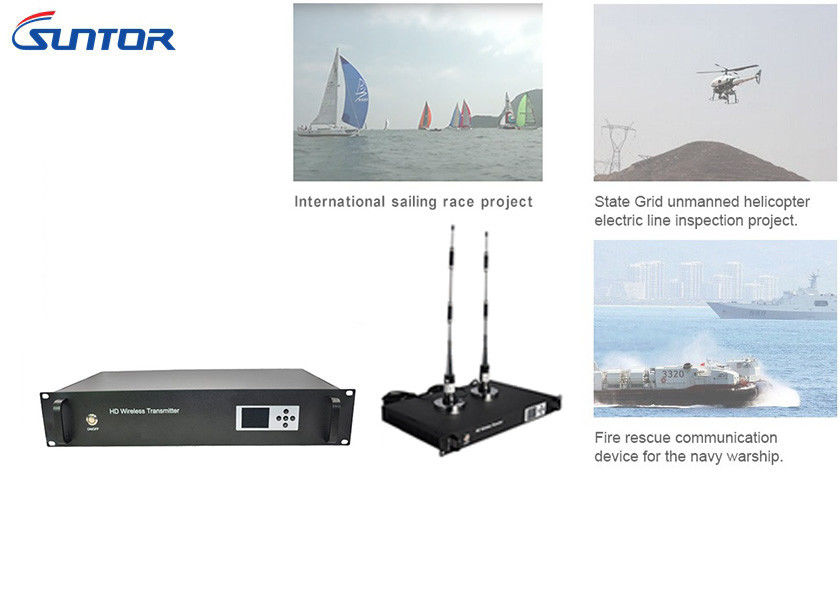

40W Helicopter Vehicle mount Wireless SD AV transmission Transmitter



Introduction:
The vehicle mountable wireless video transmitter is the ideal solution for establishing rugged wireless video links in all environments including high-speed motion and urban environments. Especially, the latest technologies of COFDM modulation and MPEG-2/MPEG-4 video compression ensure high quality of NLOS (non line-of-sight) transmission. This system is high-powered and can realize longer transmission range with stable, real-time and high definition images. This product can be mounted in a car or helicopter to transmit real-time audio and video to the commanding center.



Features:

  • RF power 10-40W NLOS distance up to 50km NLOS distance
  • Use in rescue, reconnaissance, field operations and other emergency communication system
  • Standard definition and good image effects
  • Support high speed mobile transmission, max speed 180km/h



COFDM vehicle-mounted wireless video transmitter,can work in both fixed and mobile applications.It can transmit audio video in the NLOS(none line of sight) and fast-moving mobile environment.



ST6220CZ series are a digital wireless video transmission system, which can transmit clear video image in build-up city and serious multipath effect such as sea surface. It has good diffraction ability and penetrating building ability. Could adapt to urban, mountain land and movement environment very well.



Transmitter parameter

RF Working frequency 300MHz~4.4GHz
Output power 40W
Modulation COFDM (64QAM, 16QAM, QPSK)
Channel bandwidth 2/2.5/4/8MHz Manually adjustable on LCD
Error correcting mode FEC@Viterbi (1/2, 2/3, 3/4)
Encryption AES 128Bit/SUNTOR Basic Scrambling
Guard Interval 1/32, 1/16, 1/8, 1/4
Code Stream 2Mbps~12Mbps
Error rate ≤10-6
Usage mode Vehicle-mounted
Audio and Video Compression format H.264(Embedded Audio)
SD Format

PAL 720 x 576

NTSC 720 x 480

SD Video Input Connectors BNC
Audio L+R In BNC
Others Power supply AC 110-230V
Size 19" 2U standard crate, 485mm×340 mm×90 mm (L×W×H)
Built-in LCD Display and Manually Adjust Parameters
Power switch ON/OFF
Weight 5kg
