20W Nlos 15km Long Range Analog Wireless Audio Video Transmitter For Mobile Vehicle Mounted

Basic Information
Place of Origin: China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST6220CZ-SD
Minimum Order Quantity: 1 set
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Contact Now
Detail Information
Modulation: COFDM Working Frequency: 300MHz~4.4GHz Customized
Output Power: 20W Video Input: PAL/NTSC
Transmission Distance: Onboard Application >130 Km;Marine Application: >60 Km;City Application >10km;Suburban Application >20 Km Weight: 5kg

Product Description

20W nlos 15km Long Range Analog Wireless Audio Video Transmitter for Mobile Vehicle Mounted



ST6220CZ-SD Wireless COFDM Video Transmitteris the ideal solution for establishing rugged wireless video links in all environments including high-speed motion and urban environments. Especially, the latest technologies of COFDM modulation and MPEG-2/ H.264 video compression ensure high quality of NLOS (non line-of-sight) transmission. This system is high-powered and can realize longer transmission range with stable, real-time and high definition images. This product can be mounted in a car or helicopter to transmit real-time audio and video to the commanding center.



Device Advantage:

  • SD resolution(720*576) with fast transmission rate
  • H.264 high quality digital video processing&video encoding
  • The product shell is made of high quality stainless steel which is more solid and anti-deformation
  • Excellent anti-interference performance under complex electromagnetic condition.
  • One-way picture,one/two way voice,reverse control cloud deck function are available.
  • The LOS transmitter range can reach 50km when worked with omni high gain antenna.
  • Space diversity reception capability.
  • Can stably transmitter video&audio signal under the condition of high-speed mobile and multipath interference.



Powerful SD COFDM video audio transmitter, it can up to 10-40W RF power which support transmitting over a long distance.
Using the core technology 4th generation mobile communication COFDM modulation and low delay technique that can transmit high quality and stable image under the condition of fast moving or many buildings as obstacles (NLOS)

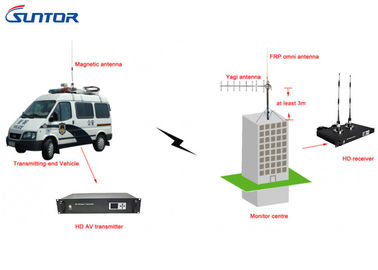

Suitable for vehicles: cars, boat - boats, cars - a building, ship-a base station, aircraft-a building/vehicle and more. High-definition moving video signal transmission, the carrier velocity greater than 450kph
Widely used in public security, armed police, fire, rescue, reconnaissance, field operations and other emergency communication system.



Transmitter parameter

RF Working frequency 300MHz~4.4GHz
Output power 20W
Modulation COFDM (64QAM, 16QAM, QPSK)
Channel bandwidth 2/2.5/4/8MHz Manually adjustable on LCD
Error correcting mode FEC@Viterbi (1/2, 2/3, 3/4)
Encryption AES 128Bit/SUNTOR Basic Scrambling
Guard Interval 1/32, 1/16, 1/8, 1/4
Code Stream 2Mbps~12Mbps
Error rate ≤10-6
Usage mode Vehicle-mounted
Audio and Video Compression format H.264(Embedded Audio)
SD Format

PAL 720 x 576

NTSC 720 x 480

SD Video Input Connectors BNC
Audio L+R In BNC
Others Power supply AC 110-230V
Size 19" 2U standard crate, 485mm×340 mm×90 mm (L×W×H)
Built-in LCD Display and Manually Adjust Parameters
Power switch ON/OFF
Weight 5kg
