SD Rack Mount Audio Video Wireless Transmitter Receiver Device For Vehicle Monitoring

Product Details

Place of Origin: Shenzhen, China

Brand Name: SUNTOR

Certification: FCC, CE, RoHS

Model Number: ST6220CZ-SD

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Plastic Box

Delivery Time: 7-15 days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000 set/ month

Get Best Price
Contact Now
Specifications
Highlight:

wireless hd transmitter

,

long range wireless video transmitter

Modulation:
COFDM
Working Frequency:
300MHz~4400MHz
Channel Bandwidth:
2/2.5/4/8MHz Adjustable
Code Stream:
2Mbps~12Mbps
SD Format:
PAL 720 X 576 / NTSC 720 X 480
Size:
19" 2U Standard Crate
Modulation:
COFDM
Working Frequency:
300MHz~4400MHz
Channel Bandwidth:
2/2.5/4/8MHz Adjustable
Code Stream:
2Mbps~12Mbps
SD Format:
PAL 720 X 576 / NTSC 720 X 480
Size:
19" 2U Standard Crate
Description
SD Rack Mount Audio Video Wireless Transmitter Receiver Device For Vehicle Monitoring

20W SD rack mount NLOS/LOS​ COFDM Wireless Video Audio Transmission Device for Vehicle Monitoring

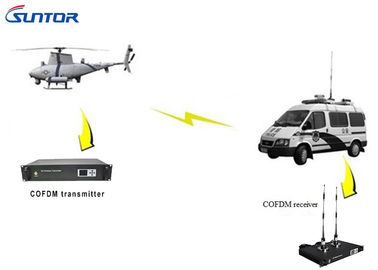

ST6220CZ-SD Wireless COFDM Video Transmitteris the ideal solution for establishing rugged wireless video links in all environments including high-speed motion and urban environments. Especially, the latest technologies of COFDM modulation and MPEG-2/ H.264 video compression ensure high quality of NLOS (non line-of-sight) transmission. This system is high-powered and can realize longer transmission range with stable, real-time and high definition images. This product can be mounted in a car or helicopter to transmit real-time audio and video to the commanding center.



Features:

  • SD resolution with the stable transmission rate
  • COFDM modulation, H.264 video compression mode
  • Built in with CVBS and BNC interfaces
  • Support left/right stereo audio input and output
  • High RF power but in strong heat resistance capacity as dual electric fans for increased cooling capacity
  • 2/2.5/4/8MHz RF bandwidth, the working frequency will be displayed on the LCD



COFDM vehicle-mounted wireless video transmitter,can work in both fixed and mobile applications.It can transmit audio video in the NLOS(none line of sight) and fast-moving mobile environment.



ST6220CZ series are a digital wireless video transmission system, which can transmit stable video image in build-up city and serious multipath effect such as sea surface. It has good diffraction ability and penetrating building ability. Could adapt to urban, mountain land and movement environment very well.



Transmitter parameter

RF Working frequency 300MHz~4.4GHz
Output power 40W
Modulation COFDM (64QAM, 16QAM, QPSK)
Channel bandwidth 2/2.5/4/8MHz Manually adjustable on LCD
Error correcting mode FEC@Viterbi (1/2, 2/3, 3/4)
Encryption AES 128Bit/SUNTOR Basic Scrambling
Guard Interval 1/32, 1/16, 1/8, 1/4
Code Stream 2Mbps~12Mbps
Error rate ≤10-6
Usage mode Vehicle-mounted
Audio and Video Compression format H.264(Embedded Audio)
SD Format

PAL 720 x 576

NTSC 720 x 480

SD Video Input Connectors BNC
Audio L+R In BNC
Others Power supply AC 110-230V
Size 19" 2U standard crate, 485mm×340 mm×90 mm (L×W×H)
Built-in LCD Display and Manually Adjust Parameters
Power switch ON/OFF
Weight 5kg
