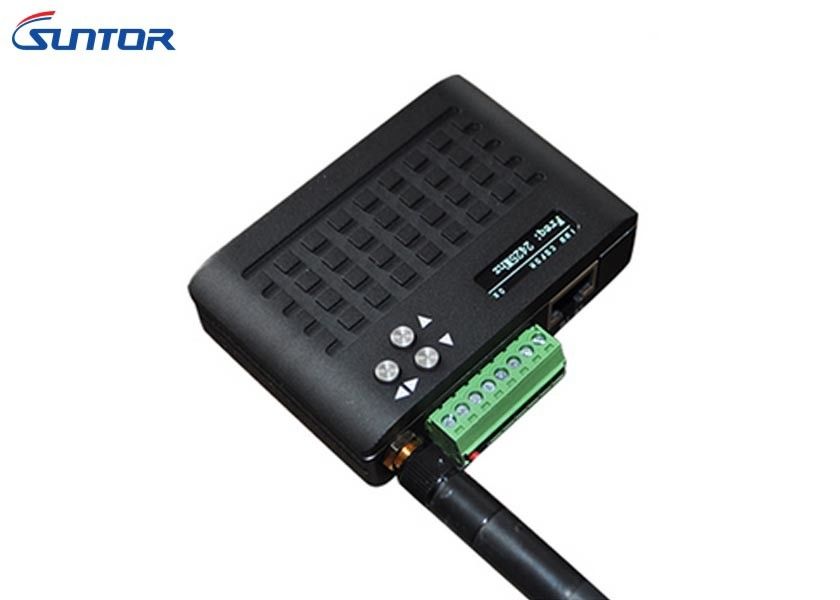

Data Link Cofdm Video Transmitter , Wireless Video Audio Transmitter And Receiver

Basic Information
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST2410CO
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Contact Now
Detail Information
Frequency Range: 2405-2470MHz Modulation: TDD-COFDM
Transmission Mold: Full-Duplex/ Half-duplex Bandwidth: 4/8MHz Adjustable
Transmission Rate: 2Mbps~12Mbps Weight: 120g
Power Supply: DC7-17V

Product Description

Long rang TDD-COFDM Audio HD Video Transmitter with Data Link



Introduction:

ST2410CO TDD-COFDM is our latest designed ultra-small digital wireless transmission equipment, which uses the advanced processing technology and leading division COFDM modulation combine to provide a perfect two-way encryption (encryption support AES_128bits) network data transfer channel and two way signal transmission. Effectively achieve real-time, anti-multipath, high-speed mobile data, voice, image duplex transmission and network building function.



Details:

  • Data: RS232 RS422, RS485
  • Ethernet/IP/network: RJ45
  • Frequency: 2.4GHz
  • Distance: 1-10km
  • Modulation: COFDM/TDD-COFDM
  • Mode: TDD, full duplex, two way
  • Transmission: audio, video, data, two-way, P2P (point-to-point), p2mp (point to multipoint), LOS (line of sight), NLOS (non line of sight), mobile



Application:
Suitable for using in complex environment: small size, light weight, and portable, usually use for short range high speed wireless data transmission, aerial long range high speed wireless data transmission. For special transmission: UAV, light UAV, rotorcraft, MUAV, drone aircraft, UUV, unmanned ship, airship, ACTUV, high-speed rail, UGV, Unmanned machine etc...for regular transmission at land, suitable for short range NLOS or NOS data transmitting. With digital and data interface, digital Ethernet interface, standard industrial RS-232,RS-422,RS-485 interface, customized analog audio, video input intercom interface.



Modulation
Frequency Range 2405-2470MHz(Adjustable), Adjust wavelength 1Mhz on LCD
Frequency Channel TDD
Modulation COFDM
Bandwidth 4/8MHz adjustable on LCD
Output power 100mW-1W adjustable
Encryption AES 128-bit encryption, manually enter KEY code
System
Transmission mold Full-Duplex/ Half-duplex
Transmission Protocol standard TCP / IP , transparent transmission, serial asynchronous data
Data Type 10/100Bate-T Ethernet, industry RS-232, RS-422-RS485 standard
Analog audio Customized analog audio input connector
Transmission rate 2Mbps~12Mbps
Transmission delay 10~30ms
Networking mode Point to Point, Point to Multi Point
Error Rate ≤10-6
Transmission distance Horizontal on gound: 1-10km (LOS), Air to ground: 8-20km, Horizontal on sea 10-30km(LOS)
Receiving sensitivity -99dBm
Receiving mode Omni
Application Portable , aerial photography , aerial operation , short distance data transmission
Physical interface
Ethernet interface RJ45
RS-232/422/485 Six pin terminal blocks
Power Input Six pin terminal blocks
Audio input interface Standard 3.5 audio interface
RF interface SMA Female
Other
Power supply DC7-17V
LCD LCD to display and adjust the parameters
After 4.5 minutes to automatically turn off the LCD to save power
Equipment Color Black
Dimension 75*51*22mm (L×W×H)
Weight 120g
