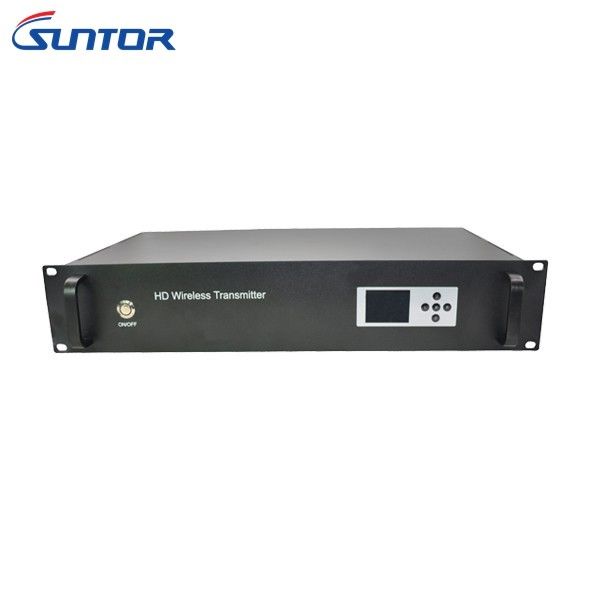

20W COFDM COFDM Wireless Transmitter Mobile Video Transmission System

Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST6220CZ-HD
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month
Product Details
Modulation COFDM Frequency 300-900MHz
Transmit Power 20W Resolution 1080P
Transmit Range Onboard Application > 150 Km; Marine Application: > 70 Km; City Application >10km ; Suburban Application > 15 Km
High Light

wireless hdmi video transmitter

,

long range wireless video transmitter

Leave a Message
Product Description

20W COFDM Vehicle-mounted HD 1080P wireless mobile video transmission system

Introduction

ST6220CZ-HD wireless HD video transmission product is new generation of real-time broadcast-quality high-resolution image transmission system.It adopts the current leading COFDM modulation technology, it has narrow air bandwidth (2/2.5/4/8MHZ) and strong anti-jamming capability, overcomes the perplex of multipath reflection and shield caused by analog technology and conventional modulation techniques, to realize high-speed photography and real-time transmit high quality image in NLOS or complicated working environment.



Feature

Video audio coding adopt H.264/MPEG-2 standard-definition reach to Full HD 1080P (1920*1080 compatible 720P,480P and standard definition), Support digital interface and analog interface, like audio video High Definition Multimedia Interface input interface,analog audio video CVBS composite input optional. Theadvantage of the production include high resolution & contrast ratio, bright color and smooth image .etc.20W COFDM COFDM Wireless Transmitter Mobile Video Transmission System 0

Working frequency

300MHz~900MHz,customise

Output power

20W

Modulation

COFDM

Bandwidth

2/2.5/4/8MHz

Guard Interval

1/32,1/16,1/8,1/4

Encryption

AES

System part

Standard

H.264 standard

Rate

2Mbps~12Mbps

Error rate

≤10-6

Transmission distance

Onboard application > 150 km;Marine application: > 70 km;City application >10km ;Suburban application > 15 km

Using mode

Vehicle-mounted

Audio video part

Compressed format

H.264/MPEG-2

Video input

Digital High Definition Multimedia Interface; analog CVBS video audio

Audio input

Left and right channel

Resolution

1080P(1920*1080)compatible 720P,480P and SD @ Frame rate is 25 fps

Video input physical interface

BNC female,High Definition Multimedia Interface standard interface

Audio input physical interface

BNC female,High Definition Multimedia Interface standard interface

Other part

Batterypower supply

AC 220V / DC 12V customise

Size

19" 2U standard crate,485mm×340 mm×90 mm (L×W×H)

Weight

5kg



Product application

This product has wide application, such as Public security, Fire control, traffic, Civil defense emergency, City management,Environment monitoring, Flood control,Electricity rescue,Railway rescue,Maritime law enforcement,Maritime surveillance inspections,Customs and Border Protection,Pier monitoring,Forest Fire,Oilfield theft, reconnaissance,living broadcast, and so on. It is suitable for urban area, seaborne, mountainous region and other complex environment high quality image mobile transmission.

Vehicle-mounted COFDM HD wireless system application



The video of sailing race on the sea: https://youtu.be/ui71DE3hlGo
