Product Details
Place of Origin: China
Brand Name: Suntor
Certification: CE
Model Number: CD05HPT
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: contact us
Packaging Details: Packing box
Delivery Time: in 12 days
Payment Terms: T/T
Supply Ability: 5000SET/Month
Operating Frequency: |
2.4GHz |
Video Input: |
HDMI |
Resolution: |
Full HD 1080P/60 |
Latency: |
15~30ms |
Distance: |
Air To Ground 5km |
RF Transmit Power: |
500mW |
Size: |
76*48*20mm |
Weight: |
93g |
Operating Frequency: |
2.4GHz |
Video Input: |
HDMI |
Resolution: |
Full HD 1080P/60 |
Latency: |
15~30ms |
Distance: |
Air To Ground 5km |
RF Transmit Power: |
500mW |
Size: |
76*48*20mm |
Weight: |
93g |
CD05HPT Drone Video Transmitter & Receiver Specifi...
1. Fast details of HDMI Drone Data Link Radios
Video Input: HDMI/TTL/Ethernet port
Resolution: Full HD 1080P/60
Frequency: 2.3Ghz-2.5Ghz
Distance: Air to ground 5km
Latency: ≤15-30ms
Duplex Data Transmission: SBUS/TTL/MAVLINK Telemetry
Small Dimension: 76*48*20mm
Light Weight: TX 93g/RX 93G
2. Description of HDMI Drone Data Link Radios

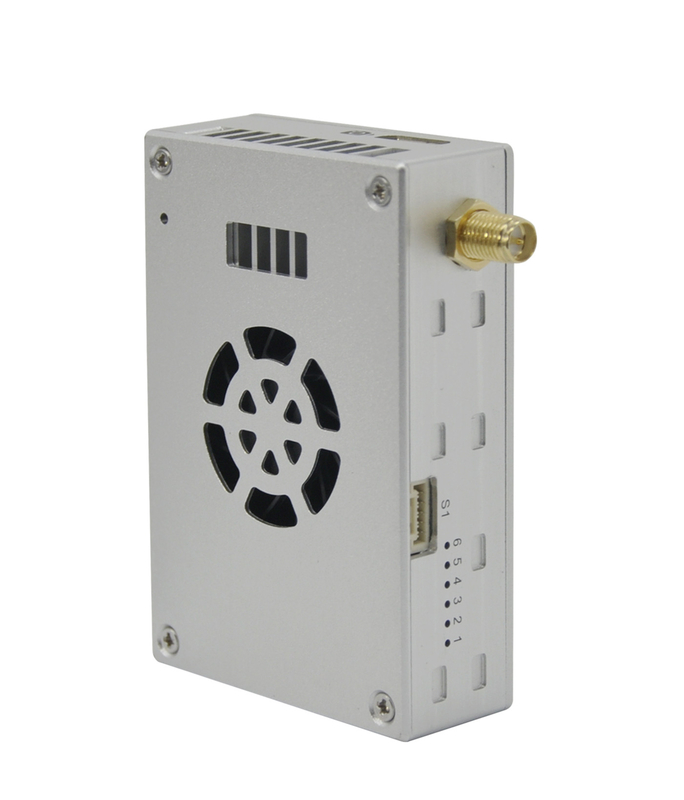

CD05HPT is a mini HD Video and Data transmission COFDM system for UAV. It develops CABAC (H.264) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground 5km) and low delay(15-30ms) transmission.
The system supports two-way(data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.
3. Specification of HDMI Drone Data Link Radios
| Wireless | |
| Frequency Range | 2.4GHZ (2402-2482GHZ) |
| Bandwidth | 4Mhz |
| Data Rate | 3 ~ 5Mbps |
| RF Power | 500mW (Air to Ground 5km) |
| Error Detection | LDPC FEC,Video H.264/265 Super Error Correction |
| Latency | ≤15-30ms |
| Receive Sensitivity | -100dBm@4Mhz |
| Video | |
| Video Input | Mini HDMI |
| Ressolution | Ultra HD 1080p/60fps |
| Compressed Format | H.264/H.265 |
| Color Space | 4:2:0(Default),4:2:2/4:4:4(Op.) |
| System | |
| Start-up Time | ≤30s |
| Transmission | Video＋Duplex Control Data |
| Data Protocol | SBUS/TTL/MAVLINK Telemetry |
| Power Supply | DC7 ~ 18V Power Supply |
| Security | AES128 Encryption |
| Interface | |
| RF Antenna | SMA×1 |
| HDMI Interface | Mini HDMI(HDMI Type C)×1 |
| Serial Port Interface | TTL Serial to USB Connector×1 |
| Ethernet Interface | Ethernet to RJ45 Connector×1 |
| Power Input | 2Pin to DC Jack Connector×1 |
| Physical | |
| Dimension | 72x47x19mm |
| Weight | 94g(Transmitter),94g(Receiver) |
| Operating temperature | -40°C ~ ＋85°C |
4. Our service
4.1. 16 years experience in video delivery infrastructure solutions
4.2. Excellent pre-sale and after-sale Technical team
4.3. High quality with competitive price
4.4. Fast feedback and fast delivery
4.5. OEM supported
5. Interface of HDMI Drone Data Link Radios
6. FQA
Q1. What about the lead time?
A1: Sample needs 5-7 days, mass production time needs 1-2 weeks for order quantity more than
Q2. Can I have a sample order for HDMI Drone Data Link Radios?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. Do you have any MOQ limit for COFDM Transmitter order?
A3: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A4: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to print my logo on COFDM Transmitter product?
A4: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
