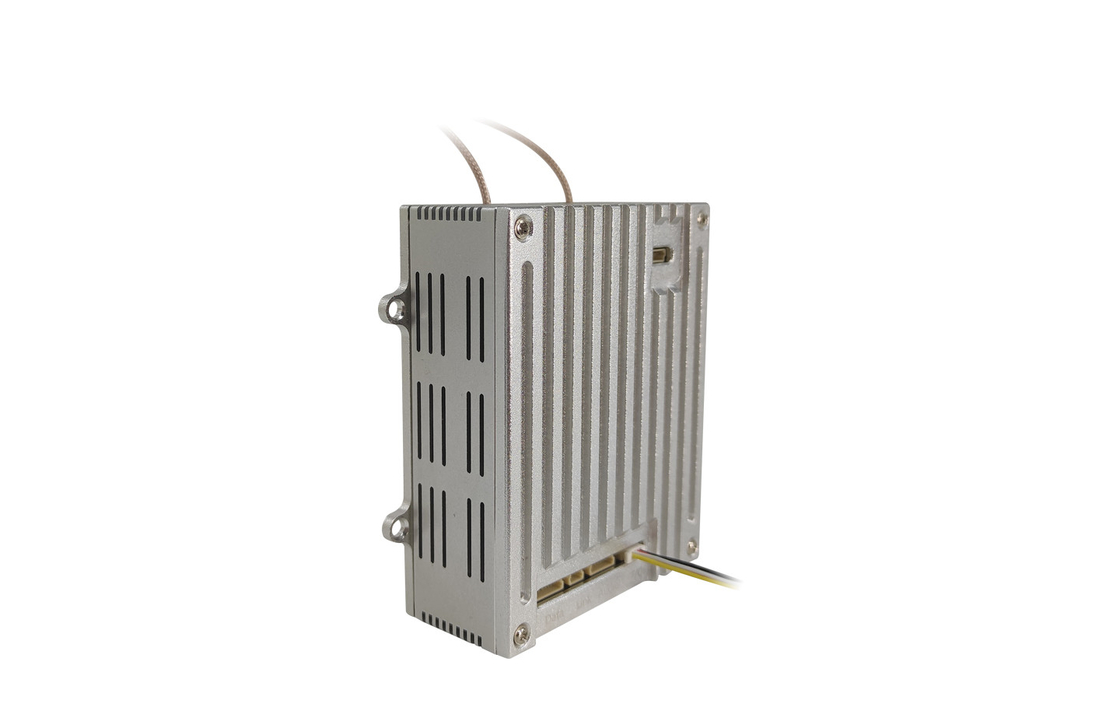

Lightweight Mobile AD HOC Network

Place of Origin China
Brand Name Suntor
Certification CE
Model Number ST9300N-JZ-mini
Minimum Order Quantity 1PCS
Price Inquire
Packaging Details packing carton or according to customer's requirements
Delivery Time in 12 days
Payment Terms T/T
Supply Ability 5000pcs/month
Product Details
Operating Frequency 800MHz~1.5GHz Can Be Customized LOS Transmission Distance 10KM
Bandwidth 2/5/10 MHz Transmission System COFDM
RF Transmitted Power 2W Vedio Input IP Network /WIFI Video
Power Supply DC 15-36V Supply Size 88*86*29mm
Weight 200g Protection Degree IP65
High Light

10KM mobile ad hoc network


lightweight mobile ad hoc network


UVA Video Transmitter

Leave a Message
Product Description

2W new vedio data transmitter light weight ad hoc link LOS long distance for UVA



1.Product Advantage


  • Operating frequency 1428-1448MHz(800MHz-1.5GHz can be customized)
  • Max Code stream up to 90Mbps
  • LOS transmission distance 10-50 km
  • Transparent transmission of IP date
  • Support two-way intercom
  • Centerless Self-organizing mess network,automatic link selection,flexible networking mode,easy to use
  • Multi hop to expand coverage and distance
  • Long transmission distance
  • With light weight,only 200g
  • Suitalbe for UVA or light device



2.Description of Backpack Ad Hoc Solider Radio


     Airborne Mesh radio is small in size and light in weight, which can be installed in formal or reverse installation, which is convenient for installation, all nodes in line-of-sight or non-line-of-sight environment, no need for a central gateway.


     All nodes have equal status, that is, they can be used as end nodes, relay nodes or central nodes, do not rely on wired communication lines, and can also quickly establish wireless communication networks.


    It is especially suitable for the application of central communication command vehicles and mobile vehicle marshalling, and can play a strong role in emergency response, anti-terrorism and riot prevention, rescue and disaster relief, large-scale event support, temporary distribution and relay transmission



3.Product Specification



System Parameter
Operating frequency 1428~1448MHz
bandwidth 5/10/20MHz,Flexible and configurable
Transmission system COFDM
Modulation mode BPSK/QPSK/16QAM/64QAM(self-adaption)
Transmission capacity Peak rate 90Mbps@20MHz
RF Transmitted power 2W
Receive Sensitivity -97dBm@1MHz
Video input Support IP network video input and WIFI video access(HDMI/AV need to be customized)
Networking function Networking capable ≥52 nodes
Networking hops >10 hops
Access time 5s after start up of the system
Network topology Centerless network, star network, chain network, mesh network, etc
Encryption mode DES (default) AES128 / AES256 (Optional)
Power supply mold DC 15-36V supply
Power Consumption ≤30W
Equipment interface
Antenna interface SMA type×2
Ethernet interface JST to RJ45 network port
TTL serial port SHR-4 terminal (to be confirmed)
Power interface DC female
Physical indicators
Dimension ≤88×86×29mm
Equipment Weight ≤200g
Protection degree IP65
Working temperature -30℃~+65



4.Feature of Backpack Ad Hoc Solider Radio


1. Centerless self-organizing

 ------Node status is equal, that is, it can be used as terminal node, relay node or central node


2. Any organization networking

---Nodes automatically identify and select the optimal route for bandwidth data


3. Security and confidentiality

---Layer-by-layer encryption through operating frequency, carrier bandwidth, scrambling code, etc., supports AES128/256


4. Anti-interference, anti-destruction

---Using COFDM, MIMO, AQR and other technologies to improve data bandwidth and anti-interference performance


5. Multi-node flexible networking

---According to the channel quality, rate, bit error and other indicators, automatically calculate the link routing, flexible networking



5.Interface Description

Lightweight Mobile AD HOC Network 0




    Suitable for application scenarios with lightweight networking needs such as UAVs. Fast network access, automatic multi-hop relay, can quickly form an interconnected three-dimensional network with handheld/individual soldier systems, vehicle-mounted systems and peripheral base station networking equipment, to achieve efficient collaboration.


  Lightweight Mobile AD HOC Network 1



7. FAQ


Q1. Can I have a sample order for Unmanned System Radio?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q2. What about the lead time?

A: Sample needs 5-7 days, mass production time needs 1-2 weeks for order quantity more than


Q3. Do you have any MOQ limit for Unmanned System Radio?

A: Low MOQ, 1pc for sample checking is available


Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.


Q5. Is it OK to print my logo on COFDM Transmitter product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
