Introduction:

20km Long Range NLOS Video Vehicle Mounted Wireless Cofdm Transmitter(ST6220CZ-HD) is big RF power security device specially designed for vehicle digital image NLOS mobile transmisson . Standard 19inch 2U dimension appearance is suitable for fixed or moving installation. And this kind of wireless audio video transmitters support one channel image and two audio channels. Therefore, security equipment ST6220CZ-HD is not only for outddoor but aslo for vehicle fixed installation. Large rf power means long distance transmission.This wireless audio transmitter can transmit up to 50km LOS and 20km NLOS distance with omni-directional antenna. Therefore, outdoor wireless transmitte and receiver is suitable for Car to car,boat to boat,vehicle to fixed station,boat to fixed station,helicopter to fixed station , which can be also as a repeater.

Advantages

• Applied to vehicle-mounted application,wide signal coverage
• Adapt carrier vehicle moving speed can reach up to 180 km/h
• Signal coverage can reach 50 km far .
• Advanced COFDM modulation technique
• Excellent diffraction ability
• The power and frequency can be adjusted in the scene
• Transmitting video,audio and data simultaneously, encrypted transmission.

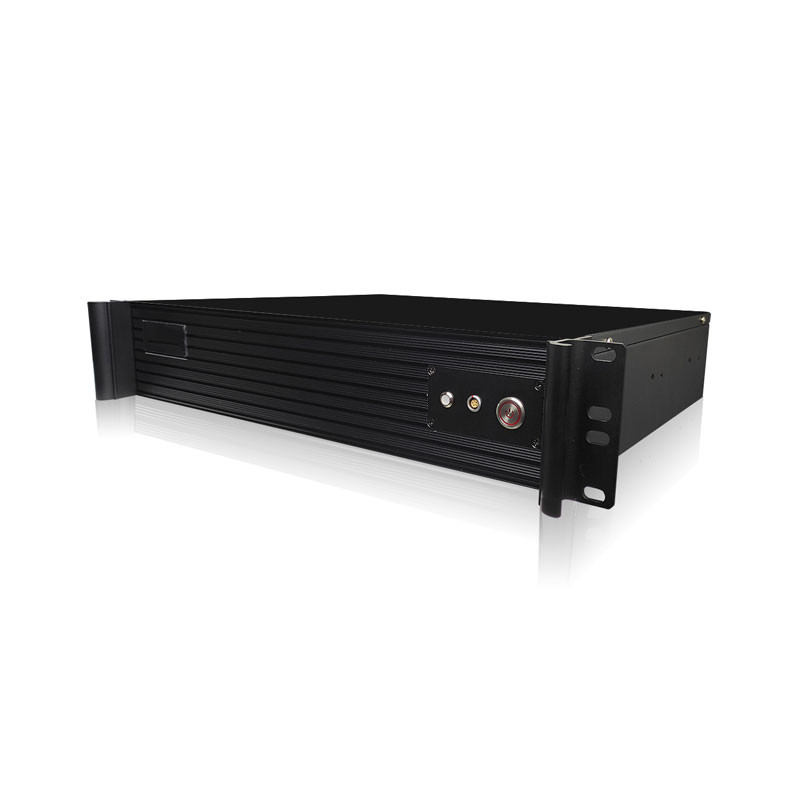

MV43 is Big RF power device special design for vehicle NLOS mobile digital image transmission. Using standard 19-inch 2U dimension appearance that very conveniently for car, boat fixed installation
Support one channel image and two audio channels
Its large RF power that depends on its long range distance transmission. Suitable for car to car, boat to boat, vehicle to fixed station, boat to fixed station, helicopter to fixed station which can be also as a repeater, can up to 50km LOS and 20km NLOS distance if work with Omni-directional antennax

Transmitter parameter
