Product Details
Place of Origin: Shenzhen
Brand Name: SUNTOR
Certification: CE Rohs
Model Number: CD30HPT
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: discussion with sales
Packaging Details: abs box
Delivery Time: 15-20days
Payment Terms: T/T, Western Union
Supply Ability: 200pcs per mon
Frequency: |
2.4ghz |
Video Streaming: |
Full Hd |
Interface: |
Rs232 Ttl |
Size: |
76*73*23mm |
Rf Power: |
33dbm |
Rate: |
Duplex 3-6mbps |
Frequency: |
2.4ghz |
Video Streaming: |
Full Hd |
Interface: |
Rs232 Ttl |
Size: |
76*73*23mm |
Rf Power: |
33dbm |
Rate: |
Duplex 3-6mbps |

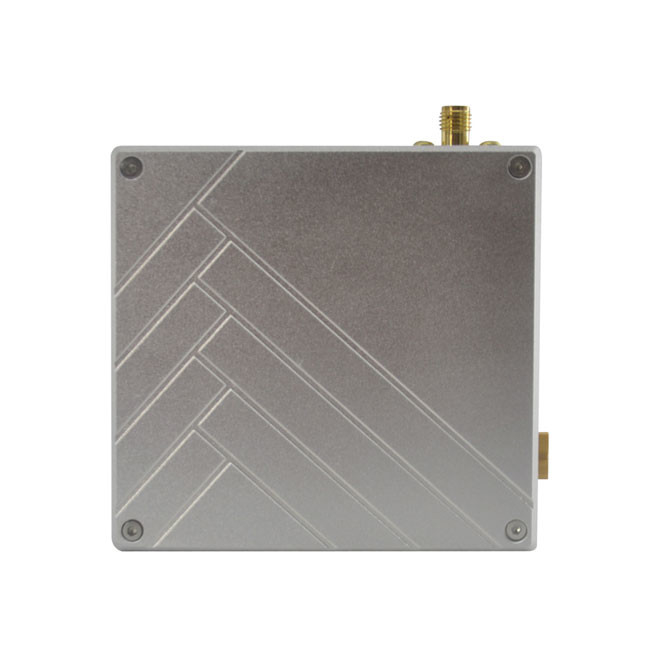

CD30HPT Drone Video Transmitter & Receiver Specifi...
Introduction for drone video 30km radios
CD30HPT is the very larger distance 30km and mini hd full video transmission system, video transmission for UAV drones, and very smaller size with lighter weight, low consumption and very easy to use from air to ground. When the tx installed in a airborne drones, the rx in ground control station will receive a video from air unit. It's Wireless transmission range with the
Application:Industrial uav drone, uav drone, unmanned vehicles aerial, unmanned vehicles system
Features for drone video 30km radios
Parameters
Video out | HD+Eth |
Size | 76*73*23mm |
air-gr Range | 30km |
device port | TTL RS232 |
Consumption | tx 16W rx 5W |
Power | 33dbm |
Modulation | COFDM |
Antenna | dual antenna |
Question from your technical engineer for drone video 30km radios:
1.how long range if i put the transmitter in air?
0-30km
2.Can i use 2.3GHz?
NO, this module only 2.4G
3.My pixhawk would be working well with your system?
Yes, support TTL and RS232 data, it can support pixhawk telemetry.
