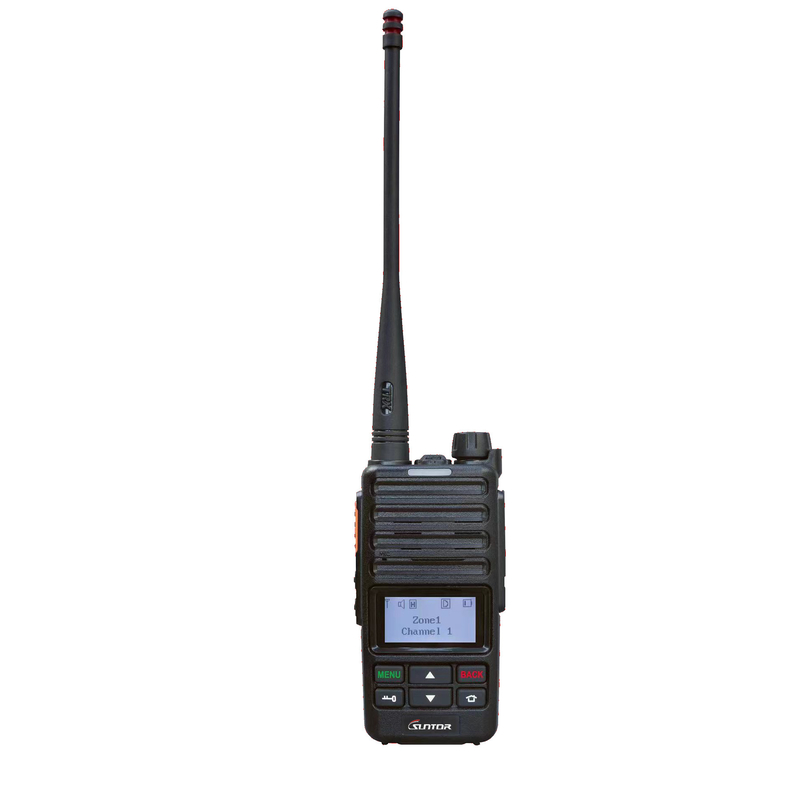

TH426 DMR Two Way Radio - Frequency Range 400-470MHz, 1W Audio Power, 4W RF Power

Product Details

Place of Origin: Shenzhen China

Brand Name: Suntor

Model Number: TH426

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: negotiation

Packaging Details: Aircasing

Delivery Time: 7-15days

Payment Terms: T/T, Western Union, PayPal

Supply Ability: 1000SET/Month

Get Best Price
Contact Now
Specifications
Highlight:

4W RF DMR Two Way Radio

,

470MHz DMR Two Way Radio

,

DMR Two Way Radio Walkie talkie

Frequency Range:
400-470MHz
Operating Temperature:
-30℃~+60℃
Body Size:
117×55×34mm
Weight:
216g
RF Power:
4W
Audio Response:
+1~-3dB
Frequency Range:
400-470MHz
Operating Temperature:
-30℃~+60℃
Body Size:
117×55×34mm
Weight:
216g
RF Power:
4W
Audio Response:
+1~-3dB
Description
TH426 DMR Two Way Radio - Frequency Range 400-470MHz, 1W Audio Power, 4W RF Power

Product Introduction:



Walkie-talkie adopts digital voice confidentiality technology, encrypting the voice signal by inputting the writing frequency password. So as to achieve communication confidentiality, anti-thousand interference, strong penetration, clear sound quality, high power, long-distance call effect.






Product Features:



  • Single call, group call, all call;

  • Auto Scan;

  • voice-activated;

  • electric hand torch;

  • Battery saving tips;

  • Backlight Adjustment;

  • Microphone level adjustment;

  • time-limited launch;

  • High and low power options;

  • PC Write Frequency Protection;

  • Offline;

  • CTCSS/DCS codecs;

  • restore the factory;

  • Cloning, replication;

  • Regional Selection;

  • 8 hours of recording time (optional);

TH426 DMR Two Way Radio - Frequency Range 400-470MHz, 1W Audio Power, 4W RF Power 0


General Specification
Frequency range 400-470MHz
Fhannel capacity 1024
Frequency stability ±1ppm
Operating temperature -30℃~+60℃
Operating voltage 7.4DC
Body size 117×55×34mm
Weight 216g
Acceptance
Digital Receiving Sensitivity 0.25uV(BER:5%)
Intermodulation ≤-60dB
False response ≥70dB
Audio Responses +1~-3dB
Audio distortion <5%
Audio power 1W
FM noise

≥45Db@25KHz

≥40dB@12.5KHz

Transmitter
RF power 4W
Response current Digital≤0.9A
Generation of standby current 0.18A
FM modulation

11K0F3E@12.5KHz

14K0F3E@20KHz

16k0F3E@25KHz

4FSK digital modulation

12.5KHz data-only:7k6FXD

12.5KHz data and voice:7K60FXW

Modulation loss <5%
Modulation noise ≥45Db@25KHz/≥-40dB@12.5KHz
Leading power ≤-60dB@12.5KHz
Audio response +1~-3dB
Antenna Port Spurious

9KHz-1GHz: ≤-36dBm

1GHz-12.75GHz: ≤-30dBm

Digital protocols ETSI-TS102 361-1,-2,-3
