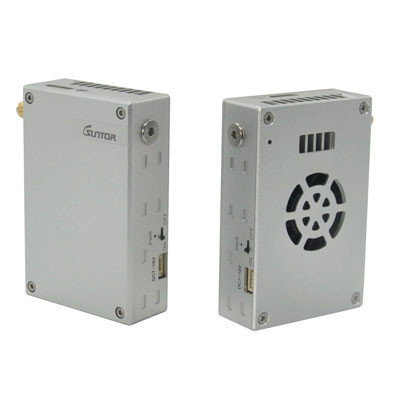

CD05HPT Ultra High Def Drone Video Transmitter & Receiver 1080P/60, 5km Range

Product Details

Place of Origin: China

Brand Name: SUNTOR

Certification: N/A

Model Number: CD05HPT

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 2550-3500 per set

Packaging Details: Normal package

Delivery Time: 5-10 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 9999 set per week

Get Best Price
Contact Now
Specifications
Highlight:

1080P drone video transmitter and receiver

,

drone video transmitter and receiver 5km

,

COFDM system for UAV

Model:
CD05HPT
Transmission Distance:
5KM (we Also Can Provide Long Transmission Distance)
TX/RX Weight:
93G
Size:
76×48×20MM
Frequency:
2402~2482MHz
RF Power:
27dBm(500mw)
Transmitting Rate:
Duplex 3Mbps
Power Consumption:
TX:7W; RX:6W
Key Interface:
Mini High Definition Multimedia Interface×1 Ethernet×1 TTL Serial Port×1
Model:
CD05HPT
Transmission Distance:
5KM (we Also Can Provide Long Transmission Distance)
TX/RX Weight:
93G
Size:
76×48×20MM
Frequency:
2402~2482MHz
RF Power:
27dBm(500mw)
Transmitting Rate:
Duplex 3Mbps
Power Consumption:
TX:7W; RX:6W
Key Interface:
Mini High Definition Multimedia Interface×1 Ethernet×1 TTL Serial Port×1
Description
CD05HPT Ultra High Def Drone Video Transmitter & Receiver 1080P/60, 5km Range

CD05HPT Drone Video Transmitter & Receiver Specifi...



1. Description



CD05HPT Ultra High Def Drone Video Transmitter & Receiver 1080P/60, 5km Range 0


CD05HPT is a mini HD Video and Data transmission COFDM system for UAV. It develops CABAC (H.264+H.265) coding&decoding technology to
achieve Utra-high resolution(1080P), long distance(air to ground 5km) and low delay(15-30ms) transmission. The system supports two-way(data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low
delay. Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable
various environment of different application.



2. Features

  • Video Input: High Definition Multimedia Interface
  • Resolution: Full HD 1080P/60
  • Frequency: 2.3Ghz-2.5Ghz
  • Distance: Air to ground 5km
  • Latency: ≤15-30ms
  • Duplex Data Transmission: SBUS/TTL/MAVLINK Telemetry
  • Dimension: 72*47*19mm
  • Weight: TX 94g/RX 94G

3. Parameter

Wireless
Frequency Range 2.4GHZ (2402-2482GHZ)
Bandwidth 4Mhz
Data Rate 3 ~ 5Mbps
RF Power 500mW (Air to Ground 5km)
Error Detection LDPC FEC,Video H.264/265 Super Error Correction
Latency ≤15-30ms
Receive Sensitivity -100dBm@4Mhz



Video
Video Input Mini HDMI
Ressolution Ultra HD 1080p/60fps
Compressed Format H.264/H.265
Color Space 4:2:0(Default),4:2:2/4:4:4(Op.)



System
Start-up Time ≤30s
Transmission Video+Duplex Control Data
Data Protocol SBUS/TTL/MAVLINK Telemetry
Power Supply DC7 ~ 18V Power Supply
Security AES128 Encryption



Interface
RF Antenna SMA×1
HDMI Interface Mini HDMI(HDMI Type C)×1
Serial Port Interface TTL Serial to USB Connector×1
Ethernet Interface Ethernet to RJ45 Connector×1
Power Input 2Pin to DC Jack Connector×1



Physical
Dimension 72x47x19mm
Weight 94g(Transmitter),94g(Receiver)
Operating temperature -40°C ~ +85°C

CD05HPT Ultra High Def Drone Video Transmitter & Receiver 1080P/60, 5km Range 1CD05HPT Ultra High Def Drone Video Transmitter & Receiver 1080P/60, 5km Range 2CD05HPT Ultra High Def Drone Video Transmitter & Receiver 1080P/60, 5km Range 3



Packing list : 1*Tx, 1*Rx, 1*Tx Antenna, 1*Rx Antenna, 3*Power Cable, 3*TTL Data Cable, 3*Ethernet Cable, 3*Antenna Cable,
2*High Definition Multimedia Interface Cable, 1*TPlayer Key, 1*Package Box .
