5KM UAV Wireless Data Link point to point Transmission Module
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | White | Weight | 68g |
|---|---|---|---|
| Dimensions | 68×48x15mm | Frequency Bandwidth | 2/4/6/8MHz |
| Transmission Mode | Point To Point | Ethernet Protocol | TCP/UDP |
| High Light | UAV Wireless Data Link,5KM Wireless Data Link,5KM UAV Radio Link |
||
Product Description

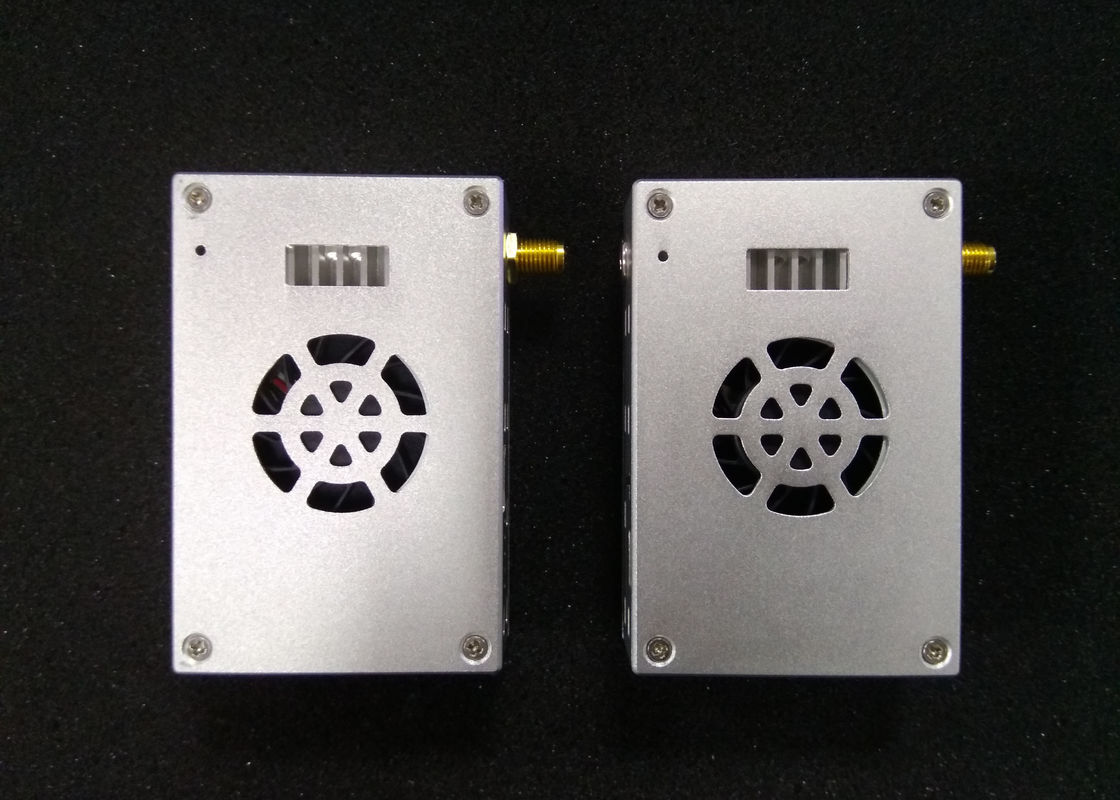

5KM UAV Wireless Data Link Point To Point Transmission Module
Wireless Video Input Transmission Module More Than 5KM UAV Data Link
Parameter
| RF Transmitting Power | 26dBm(air to ground 5km) |
| Frequency |
2.3Ghz(2304Mhz-2390Mhz) 2.4GHz(2402Mhz-2482MHz) 2.5Ghz(2500Mhz-2570Mhz) |
| Frequency Bandwidth | 2/4/6/8MHz |
| Transmission Mode | point to point |
| Error Detection | LDPC FEC |
| Start-up time | < 30s |
| Two-way function | Support video and duplex data simultaneously |
| Data | Support SBUS/TTL/MAVLINK Telemetry |
| Date Rate | 3-5Mbps |
| Ethernet Protocol | TCP/UDP |
| Antenna | 1T1R |
| Adjustment mode of bit rate | Software adjustment |
| Communication Channel Encryption | AES128 |
| Sensitivity |
-100dbm@4Mhz -95dbm@8Mhz |
| Power | DC 7-18V |
| Power Consumption | TX: 5Watts |
| RX: 5Watts | |
| Temperature | Operating temperature: -40 - +85°C |
| Storage temperature: -55 - +100°C | |
| Interface | Power input interface × 1 |
| Antenna interface × 1 | |
| RS232 Bidirectional Port × 1 | |
| Ethernet to USB / RJ45 on Windows × 2 | |
| Indicator | RJ45 input/output indicator light |
| Transmitting and receiving indicator light | |
| Transmitting and receiving indicator light | |
| Power light | |
| Appearance Design | CNC technology/ double aluminum alloy shell with waterproof design |
Description
SUNTOR ST5NPT supports 2.3GHz-2.5Ghz and suitable for long distance, high code stream and wireless transmitting application. It is a TDD-COFDM wireless communication equipment based on standard. The farthest transmission distance is 5km air to ground or 6km air to air.
SUNTOR ST5NPT with RJ45 and TTL bidirectional serial port, this model can wireless transmit video and Ethernet Data. It has advantages of light weight, mini size, low power consumption, high stability and receiving sensitivity. They always be used in Vtol drones and UAVs.
Features
Support AES encryption;
Transmitting Power: 500mW;
Range: air to ground 5km;
Working Temperature: -40℃—+85℃;
Frequency Bandwidth: 2/4/6/8MHz Adjustable;
Support: 2.3GHz-2.5Ghz TDD-COFDM;
Duplex Data Transmitting: Support SBUS/PPM/TTL/MAVLINK Telemetry;
Mode: Point to Point and Point to Multi-point.
The SUNTOR ST5NPT have two Ethernet interfaces and eight indicator lights ,it's easy to connect and see its state visually. Wide voltage supply is adopted DC from seven to eighteen.
Package List
1*Tx, 1*Rx, 1*Tx Antenna, 1*Rx Antenna, 3*Power Cable, 3*TTL Data Cable, 3*Ethernet Cable, 3*Antenna Cable, 1*Package Box
