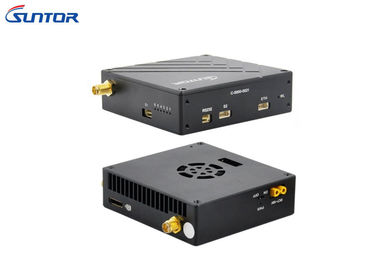

Digital Miniature IP Video Wireless Transmitter 2.4GHz Extended Temperature Range

  • Digital Miniature IP Video Wireless Transmitter 2.4GHz Extended Temperature Range
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST20NPT
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation TDD-COFDM Frequency Range 2.4GHz
Video IN IP Camera RF Power 2W
Transmitting Rate 3-5Mbps Duplex Data Support SBUS/PPM/TTL/RS232/MAVLINK
High Light

audio video transmitter

,

cofdm video sender
Leave a Message
Product Description

ISM 20km+ Digital miniature IP video data link for industrial unmanned vehicles



ST20NPT Specs.pdf



Introduction:
ST20NPT is a digital miniature IP datalink particularly suitable for unmanned and manned aircraft applications. Airlink can be used for IP video as well as command and control transmission with up to 5Mbps data rate. The Airlink has a power output of 2W.



Features:

  • Miniature design at 146 grams
  • Simultaneous Ethernet and Serial Data
  • 2W power output
  • Up to 5 Mbps throughputA
  • Encryption available as an option
  • Extended temperature range



Application:
Suntor Bi-Directional Data Links are wireless uav communications units specifically designed to increase wireless broadcasting for various types of unmanned aerial vehicles.



Parameter

Frequency

2.4GHz(2.400-2.482GHz)
RF Transmitting Power 33dBm(air to ground 18-22km)
Frequency Bandwidth 2/4/6/8Mhz
Antenna 1T1R
Adjustment mode of bit rate Software adjustment
Communication Channel Encryption WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 256
Transmission Mode point to point
Start-up time < 30s
Error Detection LDPC FEC
Two-way function Support IP video and duplex data simultaneously
Data Support SBUS/PPM/TTL/232/MAVLINK TELEMETRY
Ethernet Protocol TCP/IP/UDP
Transmission Rate 3-5Mbps
Sensitivity

-100dbm@4Mhz

-95dbm@8Mhz
Power DC 7-18V
Power Consumption TX: 16Watts
RX: 5Watts
Temperature Operating temperature: -40°C - +85°C
Storage temperature: -55°C - +100°C
Serial Port Double Serial ports for bi-directional data and playload
Interface Power input interface × 1
Antenna interface × 2
RS232 Bidirectional Port × 1
Ethernet to USB / RJ45 on Windows × 1(TX), Ethernet Port x2(RX)
Indicator RJ45 input/output indicator light
Transmitting and receiving indicator light
Transmitting and receiving indicator light
Power light
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Size Tx/ Rx: 76*73*24mm
Net Weight TX: 146g
Rx: 146g
