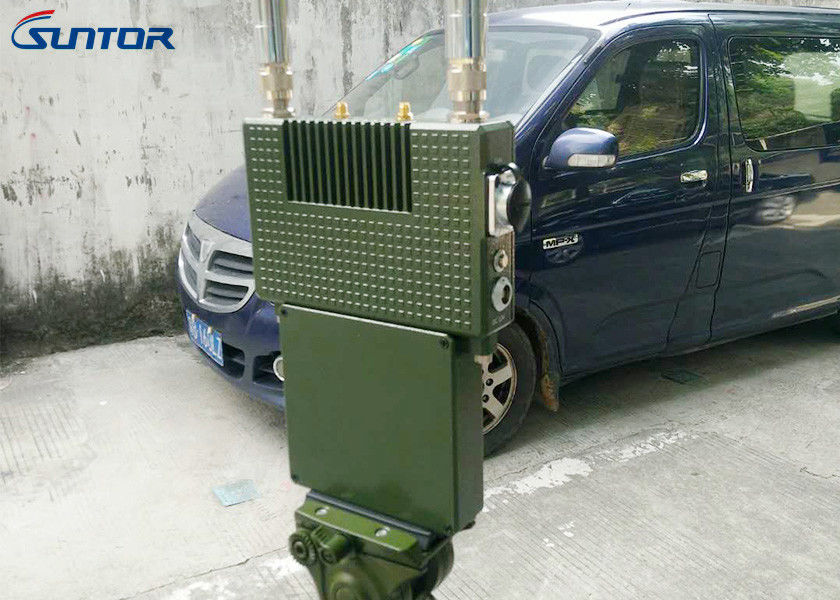

Wireless Network Video Camera Transmitter And Receiver For First Responders

Basic Information
Model Number: ST9601MS
Contact Now
Detail Information
Frequency Range: 570-1443MHz Bandwidth: 5/10/20MHz
RF Power: 0.5-1W Receive Sensitivity: -92dBm
Diversity Mode: PTP And PTMP Built-Battery: DC12V/ 2600mA

Product Description

Wireless network transmitter and receiver for IP Mesh solution for first responders



ST9601MS Specs.pdf



Description:
TDD-OFDM broadband wireless mobile emergency communication private network is independent of telecom operators.Its confidentiality,security,mobile performance that is better than the telecom operators,also is a fully transparent data encryption transmission emergency security network. Radio channel coding using TDD-OFDM modulation technology,has ability of two-way transmission support at the same exactly frequency and saving spectrum resources. Whatever,can enable real-time network IP transparent transmission and control and meet the two-way audio and video surveillance network.Real-time monitoring from a central switching the monitor points equipments and corresponding base station working /standby state by a monitor central,which can be better for each mobile front-end monitoring.



Features of mobile wireless mesh communication:

  • Optional frequency: 570-1443MHz
  • Self-encrypted or AES 128bits
  • NLOS communication
  • Centerless ad-hoc MESH networks
  • High transfer rate: up to 8Mbps
  • Strong receiving sensitivity: -92dBm@10MHz
  • Rapidly deployable wireless surveillance system



Application:
As its super small volume, light weight especially suitable for application in UAV, robot and other fast-moving complex environment video data signals transmission.



Technical Parameters

Working Frequency 570-1443MHz Bootloader U-boot
  2412-2462MHz(Wifi) Linux 3.18.19
  1559-1577MHz(GPS) Wired Network IP address configurable
Bandwidth 5/10/20MHz   Subnet Mask Configurable
  20MHz(Wifi) Wireless Network Working Frequency Adjustable
RF Power 0.5-1W   Bandwidth Adjustable
  0.2W(Wifi)   RF Power Adjustable
Receive Sensitivity -92dBm   Support Adhoc
  -90dBm(Wifi)   ESSID/BSSID Configurable
Duplex Mode TDD   Supports adaptive rate and fixed rate modes
Modulation BPSK/QPSK/16-QAM/64-QAM
Diversity Mode Transmitting and receiving diversity   Support Distance Optimization
Upstream and downstream bandwidth Two-way bandwidth up to 80Mbps   Support RTS/CTS Setting
  40Mbps(Wifi)   Connection Status Display
