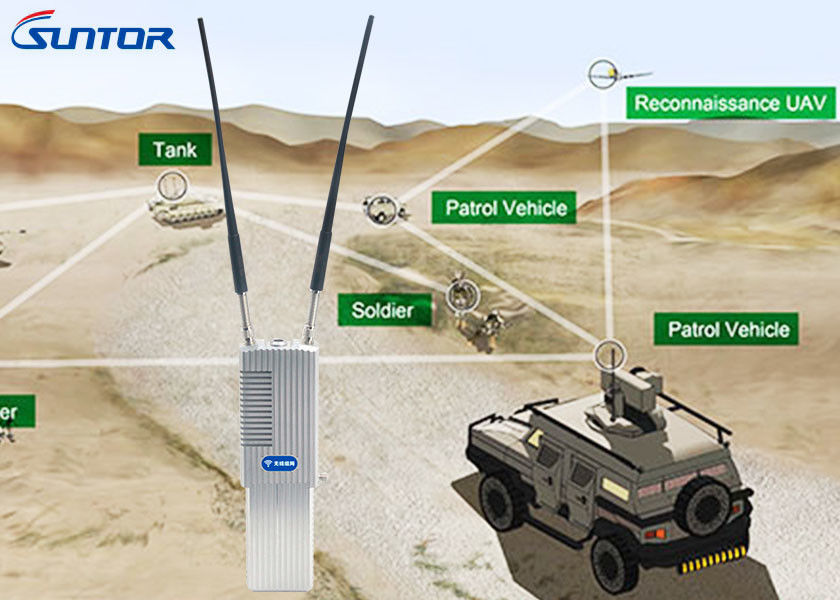

580MHz Wifi Wireless HD Transmitter OFDM IP Mesh Full Duplex 570 - 1443 MHz

Place of Origin Shenzhen, China
Certification FCC, CE, RoHS
Model Number ST9601MS
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Duplex Mode TDD Working Frequency 570-1443MHz
Bandwidth 5/10/20MHz RF Power 1W
Serial Interface Support RS232 (Bit Rate 9600-115200bps Adjustable) Upstream And Downstream Bandwidth Two-way Bandwidth Up To 80Mbps
Battery 12V2600mAh Weight 860g(Including Battery)
High Light

mesh wifi equipment


mesh network module

Leave a Message
Product Description

580MHz Wifi and OFDM IP Mesh Full Duplex TDD Wireless Transceiver


ST9601MS Specs.pdf



  • TDD-OFDM transceiver is our new NLOS(non-line of sight) two-way data transmission system and wireless mobile emergency communication private network,which is independent of telecom operators wireless network.Its confidentiality,security,mobile performance that is better than Telecom operators.Also is a fully transparent data encryption transmission emergency security network.
  • TDD-OFDM multiplexing technology to channel resources in time through time slot, frequency through a large number of sub carriers to flexibly allocated to multiple users,and in a single frequency to maximize the realization of multi user access.Channel into the AES128bit ,and user defined-code that strength to ensure the data encryption, then achieved in a complex environment transfer: data packing form, audio and video data and serial asynchronous data.
  • Its miniature volume, precision design, lightweight and easy to carry that commonly used in short distance high speed wireless data transmission and in sky long distance high speed wireless data transmission purposes.
  • 1) Such as special transmission: for any different size of drones,UAV, rotorcraft, UGV, gyroplane,unmanned parachute,unmanned submarine,unmanned boat,airship,high speed rail,motor car,unmanned robot etc..
  • 2)On ground station such as:short-range NLOS operations or LOS environment motion wireless communication.


TDD-OFDM IP Mesh Features:

  • IP interface as standard for easy connection of cameras, sensors and data
  • GPS and/or RS232 interface and mapping software available
  • Mesh allows range extension by making chains, or easy bidirectional relays
  • Composite video and audio output options for connection to recorders
  • Easy control of cameras for PTZ
  • Encryption for security with AES128/256
  • IP Mesh capability
  • Automatic Adaptive modulation


As its super small volume, light weight especially suitable for application in UAV, robot and other fast-moving complex environment video data signals transmission.


Technical Parameters

Working Frequency 570-1443MHz Bootloader U-boot
  2412-2462MHz(Wifi) Linux 3.18.19
  1559-1577MHz(GPS) Wired Network IP address configurable
Bandwidth 5/10/20MHz   Subnet Mask Configurable
  20MHz(Wifi) Wireless Network Working Frequency Adjustable
RF Power 0.5-1W   Bandwidth Adjustable
  0.2W(Wifi)   RF Power Adjustable
Receive Sensitivity -92dBm   Support Adhoc
  -90dBm(Wifi)   ESSID/BSSID Configurable
Duplex Mode TDD   Supports adaptive rate and fixed rate modes
Modulation BPSK/QPSK/16-QAM/64-QAM
Diversity Mode Transmitting and receiving diversity   Support Distance Optimization
Upstream and downstream bandwidth Two-way bandwidth up to 80Mbps   Support RTS/CTS Setting
  40Mbps(Wifi)   Connection Status Display
