Wideband 136–174MHz Coverage
Supports RF amplification across a 38MHz operating bandwidth.

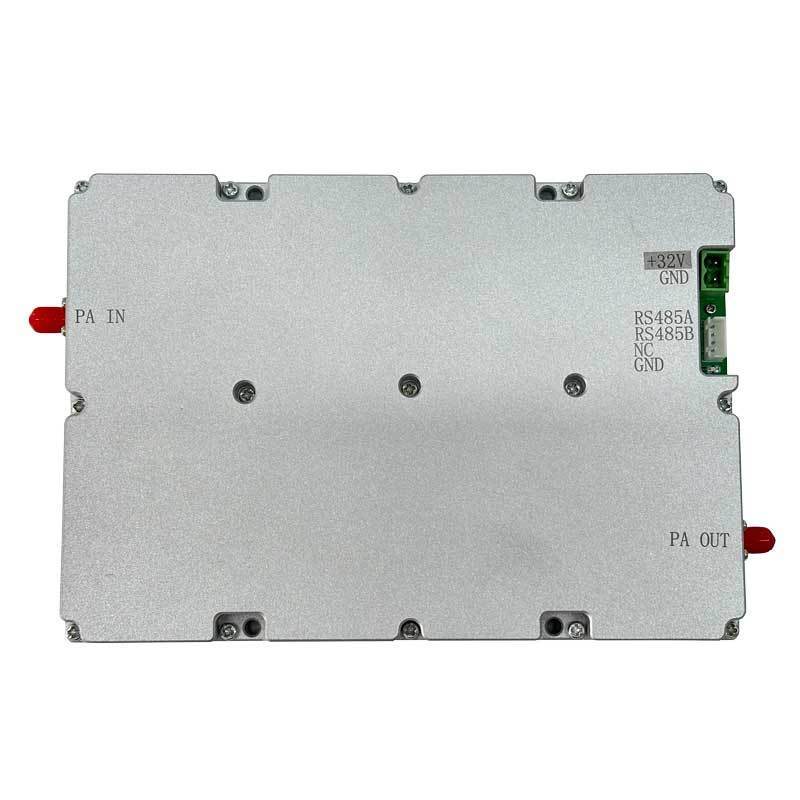

10W 136–174MHz RF Power Amplifier Module
A wideband 10W RF power amplifier module designed for wireless communication systems, featuring adjustable gain, RS485-based remote monitoring, and integrated protection functions.
Operating Frequency
136–174 MHz
Maximum Output Power
10W
Maximum Gain
50 ± 1 dB
Remote Monitoring Interface
RS485
Product Overview
The BT-PA150M-38M10W-RS485-SMA is a 10W RF power amplifier module designed to amplify radio frequency signals within the 136–174MHz frequency range. With a 38MHz bandwidth, up to 50dB gain, and SMA RF connectors, it provides an RF amplification solution for wireless communication equipment manufacturers and system integrators.
The module amplifies RF input signals to a maximum output power of 40dBm. Its adjustable gain function supports a gain adjustment range of at least 25dB, while automatic level control (ALC) helps regulate output levels. These features support RF signal amplification and output management within a communication system.
Designed for system integration, the module supports RS485 configuration, status monitoring, and alarm reporting. It provides forward and reverse power monitoring, temperature detection, VSWR monitoring, and automatic shutdown under over-temperature conditions. Its compact 200 × 140 × 25mm dimensions and no-extra-circulator design simplify integration into compatible RF systems.
Key Advantages
10W RF Output Power
Delivers a maximum output power of 40dBm for compatible RF systems.
Adjustable Gain Control
Provides at least 25dB gain adjustment range with a step of 1dB or less.
RS485 Remote Management
Supports parameter configuration, operating-status queries, and alarm reporting.
Integrated Protection Functions
Includes over-temperature, over-power, VSWR, and PA fault alarms.
Compact System Integration
Features a 200 × 140 × 25mm form factor and requires no extra circulator.
Technical Specifications
RF Performance
| Frequency Range | 136–174 MHz |
|---|---|
| Bandwidth | 38 MHz |
| Maximum Output Power | 40 ± 0.5 dBm |
| Maximum Gain | 50 ± 1 dB |
| Gain Adjustment Range | ≥ 25 dB |
| Gain Adjustment Step | ≤ 1 dB |
| Total Gain Adjustment Error | ≤ ±1.5 dB |
| Automatic Level Control (ALC) | ≥ 10 dB |
| Maximum Input Power | +10 dBm |
| In-Band Ripple | ≤ 2.5 dB |
| VSWR | ≤ 1.5:1 |
| IMD3 | ≤ −13 dBm @ 2 × 37 dBm |
Electrical Specifications
| Power Supply | +32V (verify against interface definition) |
|---|---|
| Maximum Current | ≤ 2.0A |
| RF Connector | SMA-50KFD |
| Communication Interface | RS485 |
| Power & Monitor Connector | 4W2 port |
Mechanical Specifications
| Dimensions | 200 × 140 × 25 mm |
|---|---|
| Circulator Requirement | No extra circulator required |
Environmental Specifications
| Operating Temperature/th> | −25°C to +65°C |
|---|---|
| Over-Temperature Protection | Alarm and shutdown above +85°C |
| Automatic Recovery | PA switches on when temperature falls below +65°C |
| Humidity | 5%–95% |
Monitoring & Protection Functions
| PA Configuration | Module address, PA ON/OFF, ALC, ATT |
|---|---|
| Status Monitoring | ON/OFF status, forward power, reverse power, temperature, VSWR, ALC, ATT |
| Alarm Reporting | Over-temperature, over-power, VSWR, PA fault |
| Temperature Detection | 0°C to +85°C; accuracy < ±3°C |
| Forward Power Detection | Detection range > 20dBm; accuracy < ±2dBm |
| Over-Power Alarm | Triggered when output power exceeds Po + 2dB |
| PA Fault Alarm | Low-gain alarm |
Dimension Drawing
BT-PA150M-38M10W-RS485-SMA - Mechanical Dimensions
The specification sheet provides the overall dimensions but does not include a complete mechanical drawing with mounting-hole positions. Use the original engineering drawing for installation design.
Length200mm
Width140mm
Height25mm
Applications & Technology
VHF Wireless Communication Systems
RF power amplification for compatible VHF radio communication equipment operating within 136–174MHz.
Private Radio Networks
An RF amplification component for private wireless networks with compatible frequency and power requirements.
Wireless Infrastructure Equipment
Integrates into wireless infrastructure equipment requiring a 10W RF power amplifier.
RF Signal Amplification Systems
Supports RF signal amplification in systems requiring adjustable gain and output-level management.
OEM Wireless Equipment Integration
A compact module for equipment manufacturers integrating RF amplification into their own products.
Remotely Monitored RF Systems
RS485-based configuration, operating-status monitoring, and alarm reporting for compatible host systems.
Frequently Asked Questions
Q1. What is the operating frequency range of this RF power amplifier module?
The module operates from 136MHz to 174MHz, with a specified bandwidth of 38MHz.
Q2. What is the maximum output power?
The maximum output power is 40 ± 0.5dBm, equivalent to approximately 10W.
Q3. Does this module support adjustable gain?
Yes. It offers a maximum gain of 50 ± 1dB, a gain adjustment range of at least 25dB, and an adjustment step of 1dB or less.
Q4.Does the module support remote monitoring?
Yes. Its RS485 interface supports parameter configuration, operating-status queries, power monitoring, temperature monitoring, VSWR monitoring, and alarm reporting.
Q5. What protection functions are integrated into the module?
The module supports over-temperature, over-power, VSWR, and PA fault alarms. When the temperature exceeds +85°C, the PA shuts down and automatically switches on again after the temperature falls below +65°C.
Q6. What are the module's dimensions and RF connector type?
The overall dimensions are 200 × 140 × 25mm, and the RF connector is specified as SMA-50KFD. The module does not require an extra circulator.
