Product Details
Place of Origin: shenzhen
Model Number: BT-PAT700-18M10W-7W2-SMA
Payment & Shipping Terms
Price: Price Negotiable
Packaging Details: Carton
Delivery Time: 35 days upon PO
Payment Terms: L/C,D/A,D/P,T/T
RF Gain: |
50 ± 1 DB |
Gain Adjustment Range: |
≥20 DB |
Frequency Range: |
758–776 MHz |
Monitoring & Protection: |
ALC / VSWR / Power / Temperature |
Output Power: |
40 ± 1 DBm / 10W |
Control Interface: |
RS485 |
RF Gain: |
50 ± 1 DB |
Gain Adjustment Range: |
≥20 DB |
Frequency Range: |
758–776 MHz |
Monitoring & Protection: |
ALC / VSWR / Power / Temperature |
Output Power: |
40 ± 1 DBm / 10W |
Control Interface: |
RS485 |

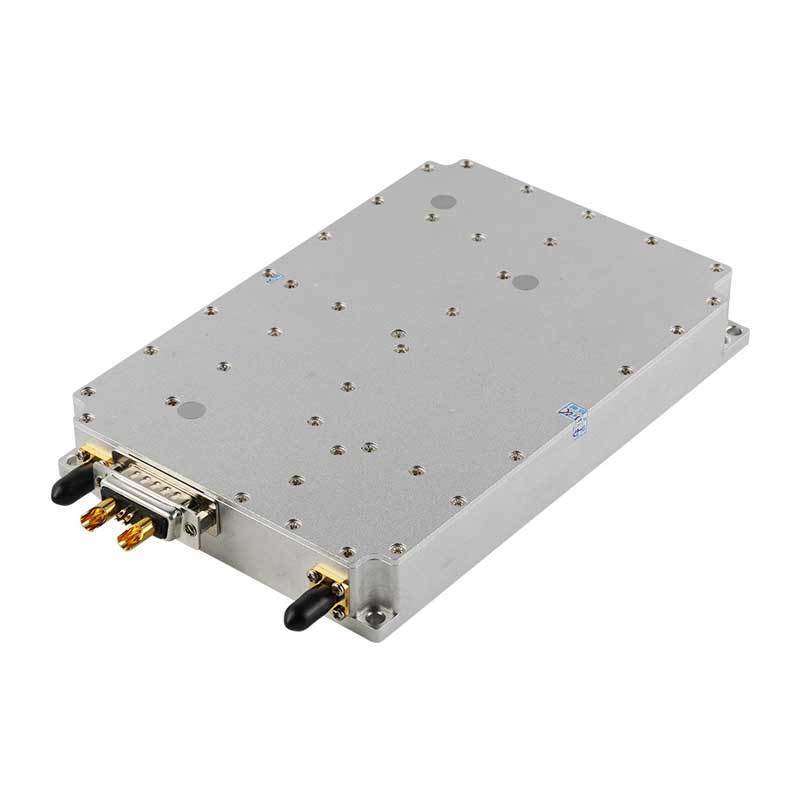

The BT-PAT700-18M10W-7W2-SMA is a TETRA-band RF Power Amplifier Module designed for wireless communication equipment operating from 758 to 776 MHz. It provides 40 ± 1 dBm output power with 50 ± 1 dB gain, supporting stable RF signal amplification within an 18 MHz operating bandwidth.
The module amplifies RF signals while providing configurable gain control and output power management. Its gain adjustment range is ≥ 20 dB, with a gain adjustment step of ≤ 1 dB, while the ALC function maintains output power within ± 1.5 dB under specified input-signal variation.
For system integration and maintenance, the module supports RS485 communication, forward/reverse power detection, temperature monitoring, VSWR detection, ALC and alarm functions. The compact 180 × 120 × 24 mm form factor makes it suitable for integration into RF communication equipment where controlled power amplification and monitoring are required.
| Frequency Range | 758-776 MHz |
| Bandwidth | 18 MHz |
| Output Power | 40 ± 1 dBm |
| Gain | 50 ± 1 dB |
| Parameter | Specification |
|---|---|
| Frequency Range | 758-776 MHz |
| Bandwidth | 18MHz |
| Output Power | 40 ± 1 dBm |
| P1 Max. Output Power | ≥50 dBm |
| Gain | 50 ± 1 dB |
| Gain Adjustable Range | ≥20 dB |
| Gain Adjustment Step | ≤1 dB |
| Gain Adjustment Error | Total error ≤ ±1.5 dB |
| IMD3 | ≤ -53 dBc @ 2 × 37 dBm, 2-tone interval 600 kHz |
| In-Band Ripple | ≤1.5 dB |
| VSWR | ≤1.5 |
| Maximum Input Power Without Damage | +10 dBm |
| Out-of-Band Spurious | 9 kHz-1 GHz: ≤ -36 dBm/30 kHz |
| Out-of-Band Spurious | 1 GHz-12.75 GHz: ≤30 dBm/30 kHz |
| Parameter | Specification |
|---|---|
| Power Supply | +28 V DC |
| Current Consumption | ≤2.8 A |
| RF Connector | SMA-50KFD |
| Monitoring / Control Interface | RS485 |
| Power & Monitor Port | 7W2 |
| Parameter | Specification |
|---|---|
| Dimensions | 180 × 120 × 24 mm |
| Parameter | Specification |
|---|---|
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -25°C to +65°C |
| Humidity | 5%~95% |
